16GB DDR5-5600 KINGSTON SODIMM KVR56S46BS8-16

Product Description:

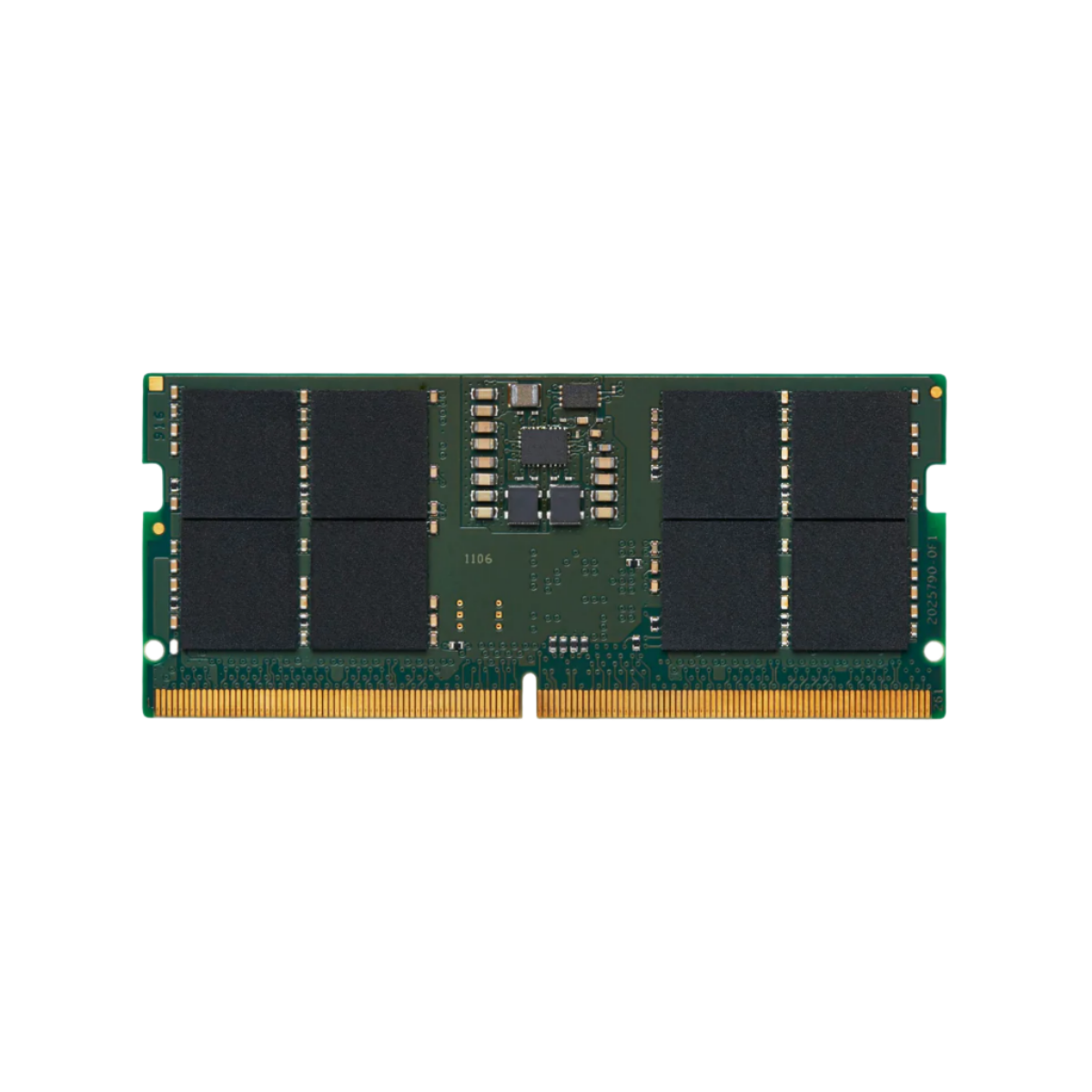

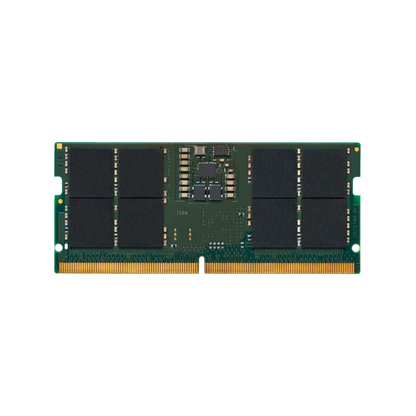

KVR56S46BS8-16 is a 16GB DDR5-5600 memory module featuring 1Rx8 configuration and CL46 latency. It operates at 1.1V and is equipped with on-die ECC for improved data integrity, with a 262-pin SODIMM form factor and gold contact fingers. This RoHS-compliant and halogen-free module is designed for high-performance laptops, offering reliability and fast data transfer speeds.

Product Specifications:

• CAS Latency (CL): 46 cycles
• Row Cycle Time (tRCmin): 48ns (min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns (min.)
• Row Active Time (tRASmin): 32ns (min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0°C to +85°C
• Storage Temperature: -55°C to +100°C
• Power Supply VDD: 1.1V (Typical)
• VDDQ: 1.1V (Typical)
• VPP: 1.8V (Typical)
• VDDSPD: 1.8V to 2.0V
• On-Die ECC: Yes
• PCB Height: 1.18” (30.00mm)
• Compliance: RoHS Compliant and Halogen-Free
