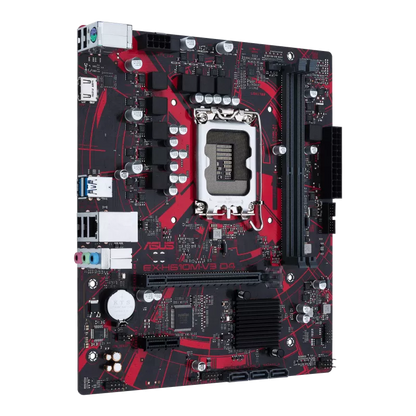

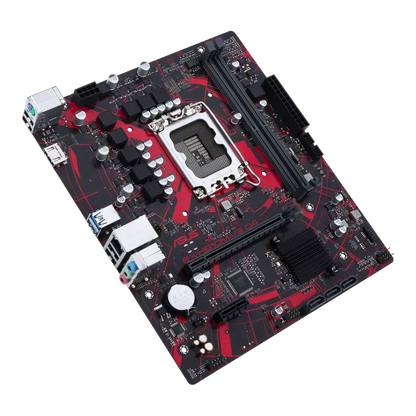

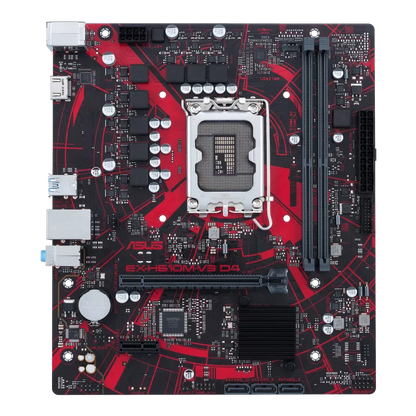

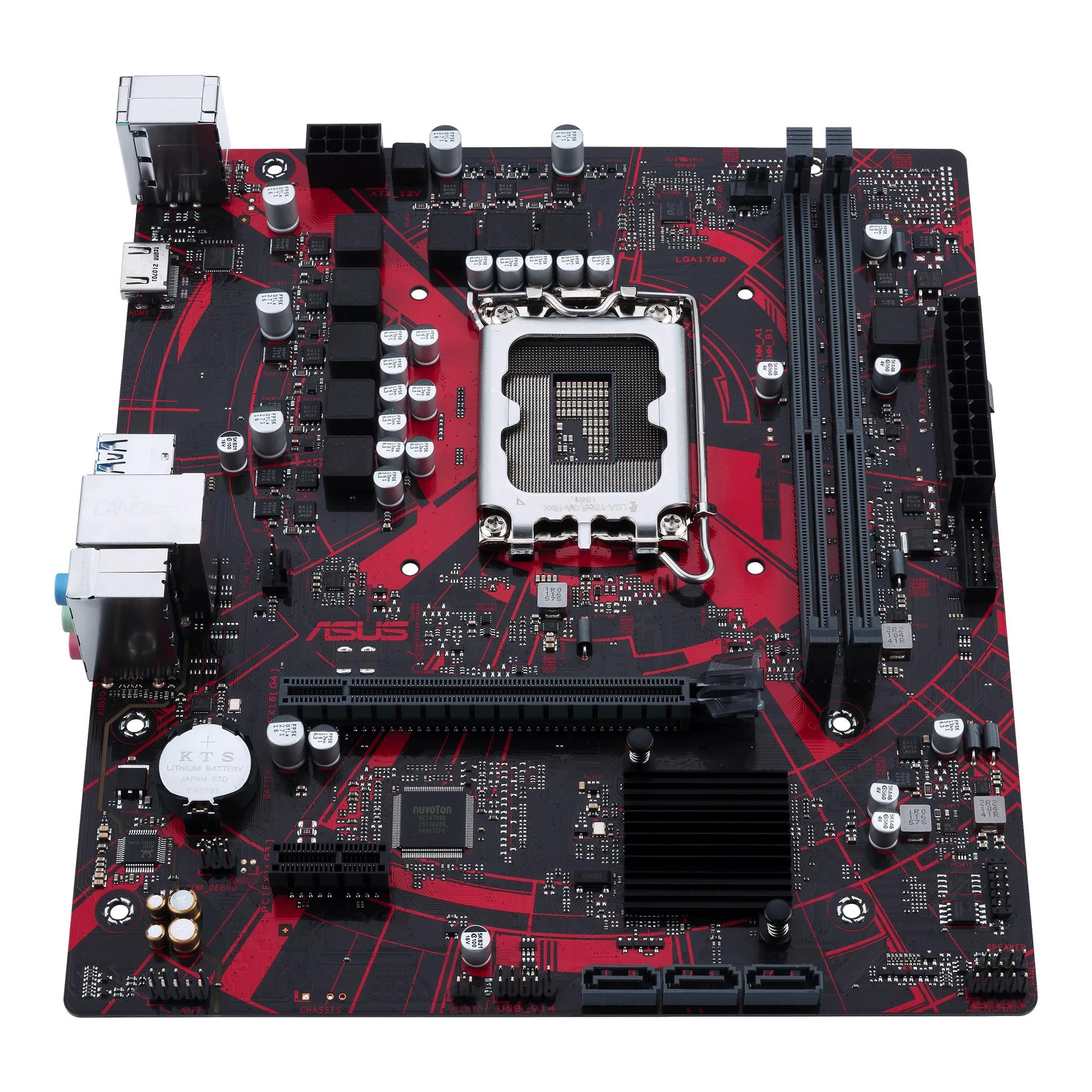

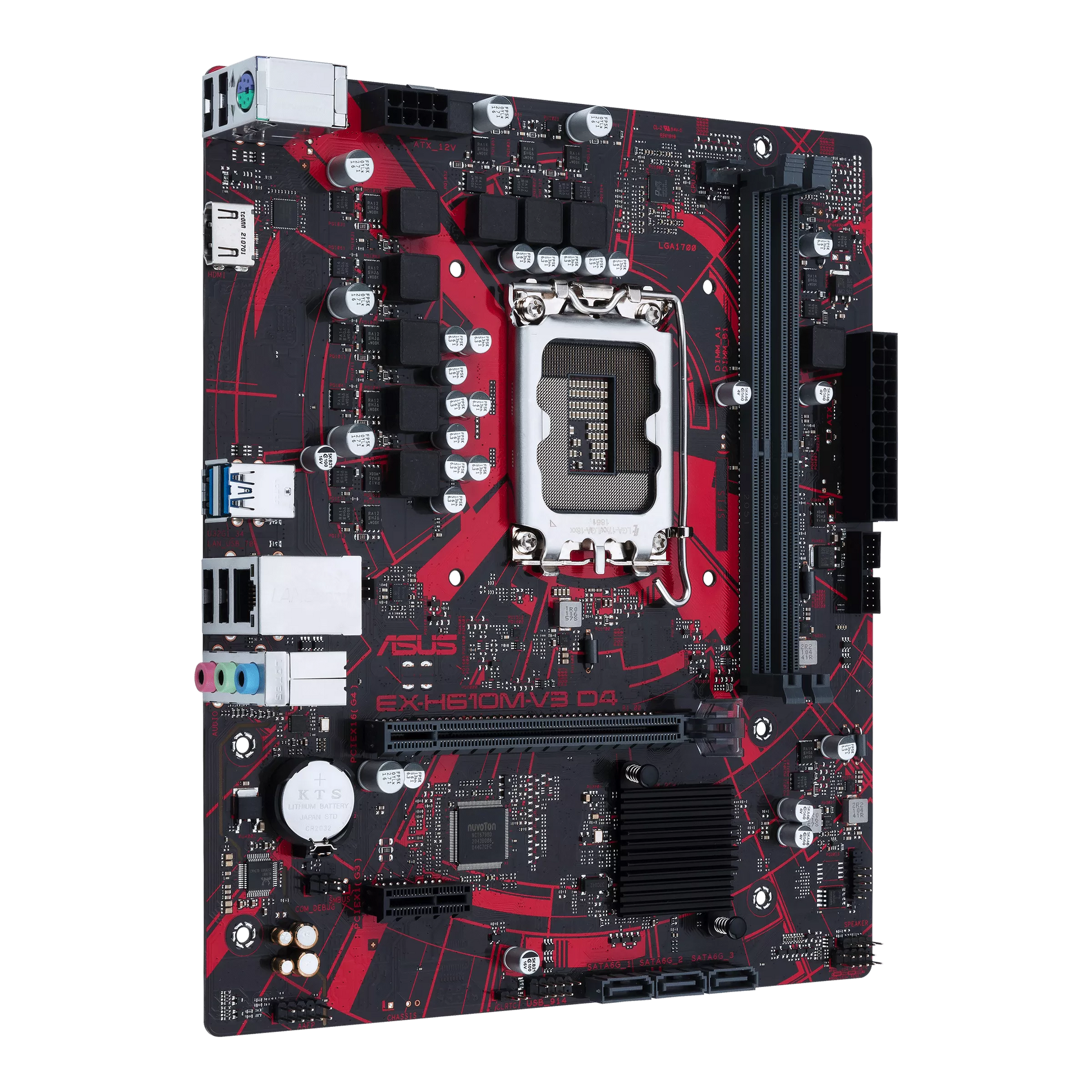

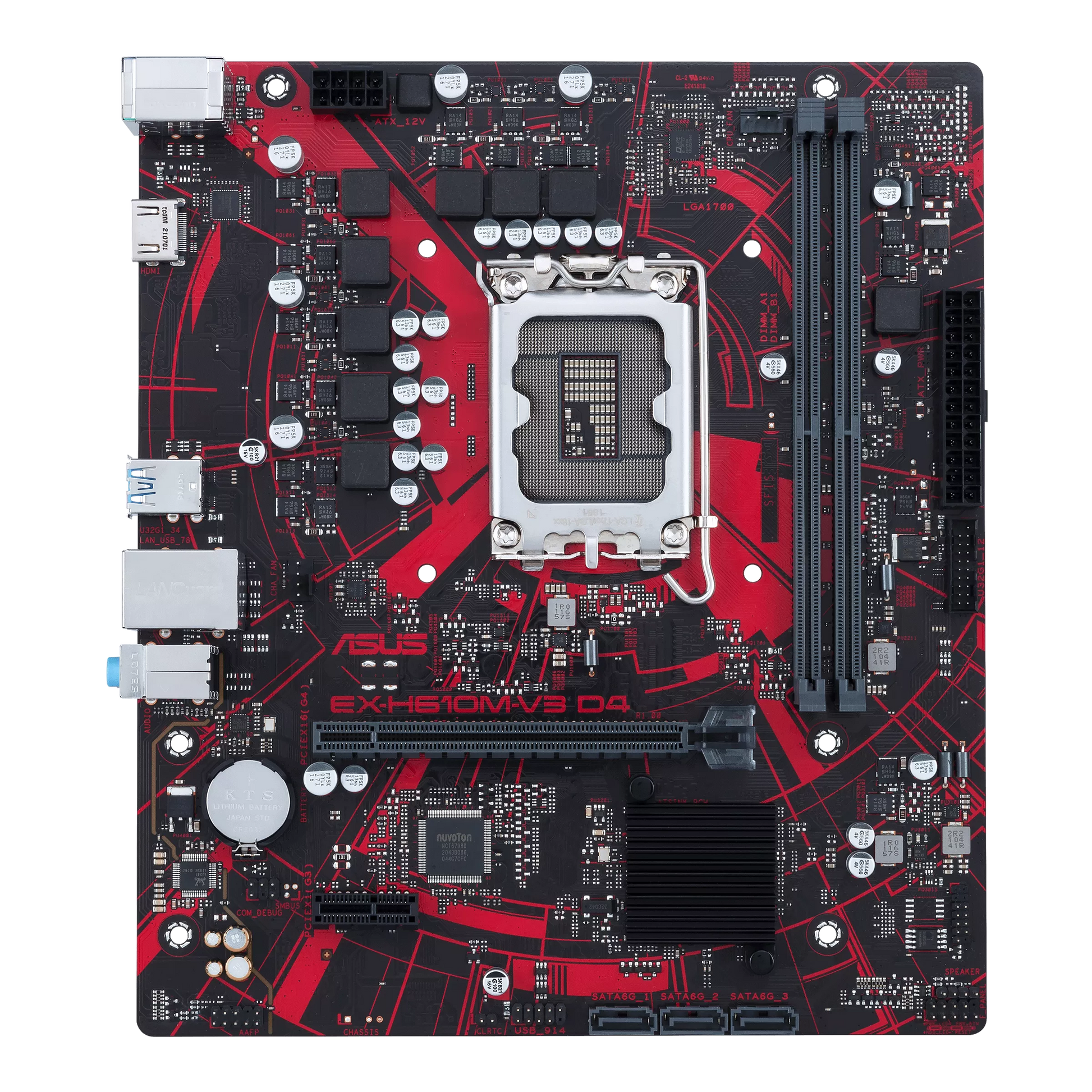

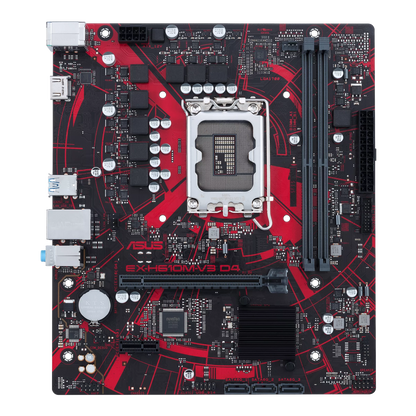

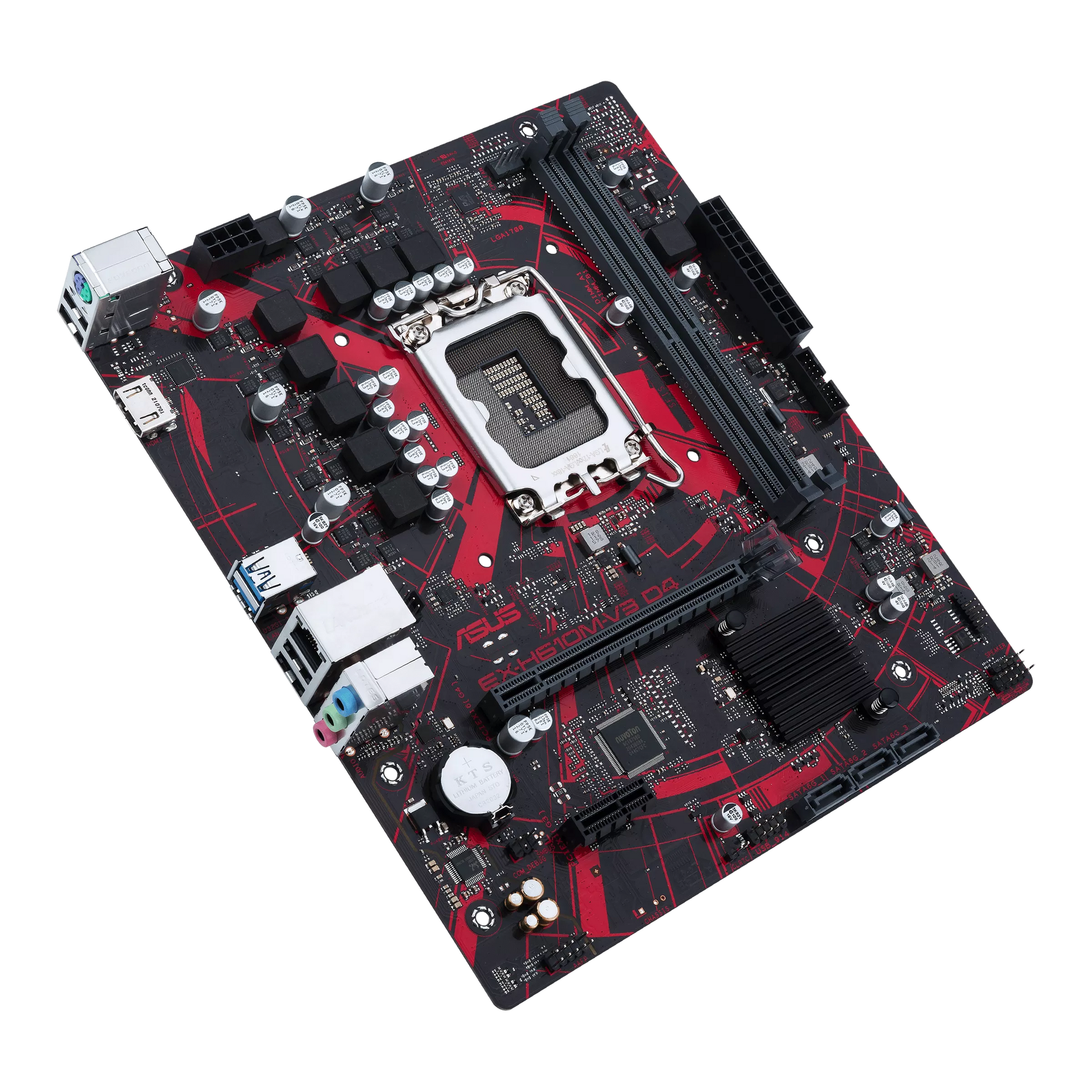

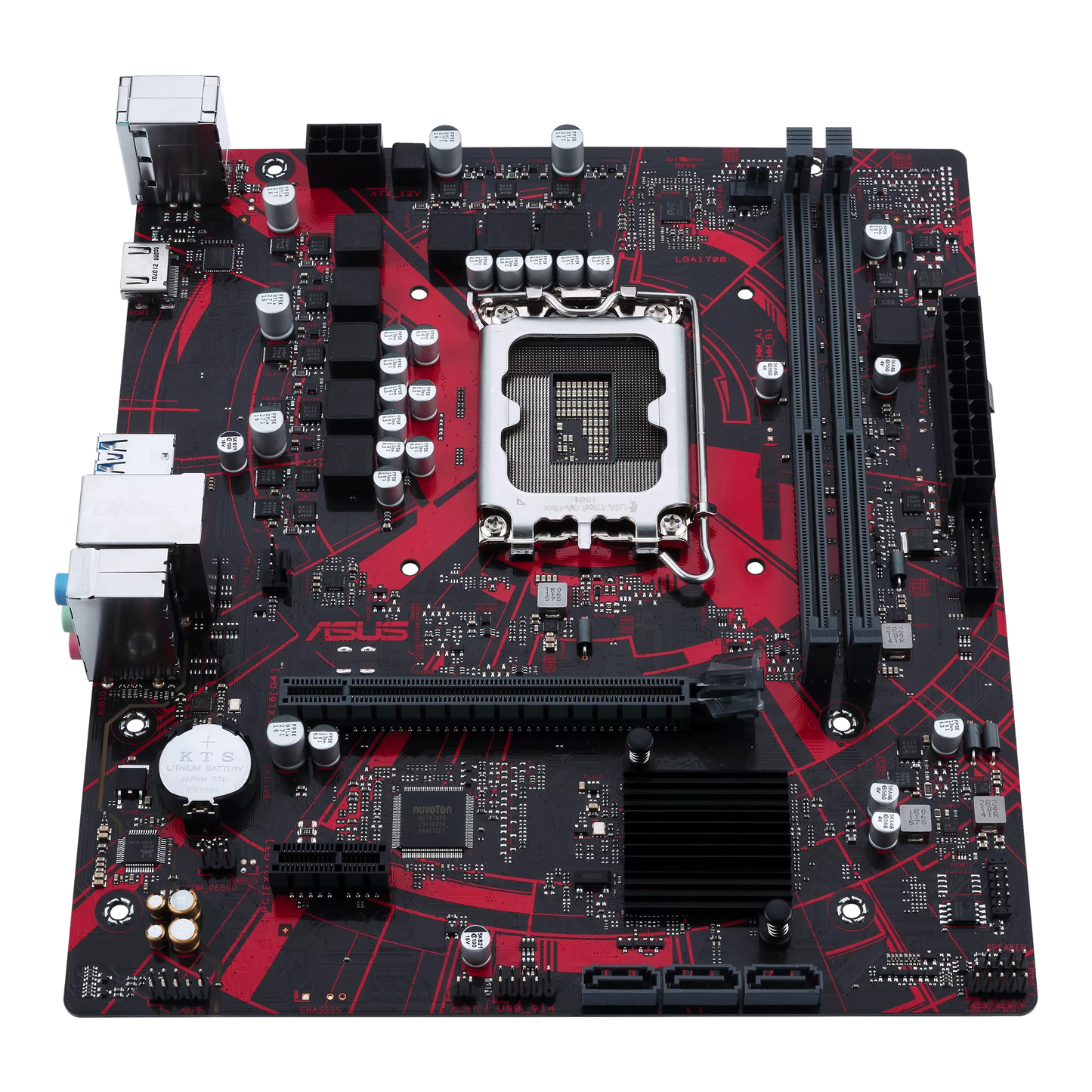

ASUS EX-H610M-V3 D4 2DDR4 MOTHERBOARD (HDMI)

Specifications:

CPU Compatibility:

• Socket LGA1700 for:
  • Intel® Core™ 14th, 13th, and 12th Gen Processors
  • Intel® Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (CPU-dependent).

Chipset:

• Intel® H610 Chipset

Memory:

• 2 x DIMM slots, max 64GB of DDR4 memory.
• Supports DDR4 3200/3000/2933/2800/2666/2400/2133 MHz (non-ECC, un-buffered).
• Dual Channel Memory Architecture.
• Supports Intel® Extreme Memory Profile (XMP).

Graphics:

• 1 x HDMI® port supporting 4K@60Hz (HDMI 2.1).

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-speed graphics or expansion cards.
• 1 x PCIe 3.0 x1 slot for additional expansion options.

Storage:

• 3 x SATA 6Gb/s ports for storage devices.

Networking:

• 1 x Realtek 1Gb Ethernet port for wired connectivity.

USB Ports:

• Rear USB (6 ports total):
  • 2 x USB 3.2 Gen 1 (Type-A)
  • 4 x USB 2.0 (Type-A)
• Front USB (4 ports total):
  • 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
  • 1 x USB 2.0 header (supports 2 additional USB 2.0 ports)

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC:
  • Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking.
  • Supports up to 24-Bit/192 kHz playback.
  • Audio Shielding and dedicated audio PCB layers.
  • Requires a chassis with an HD audio module for 7.1 Surround Sound output.

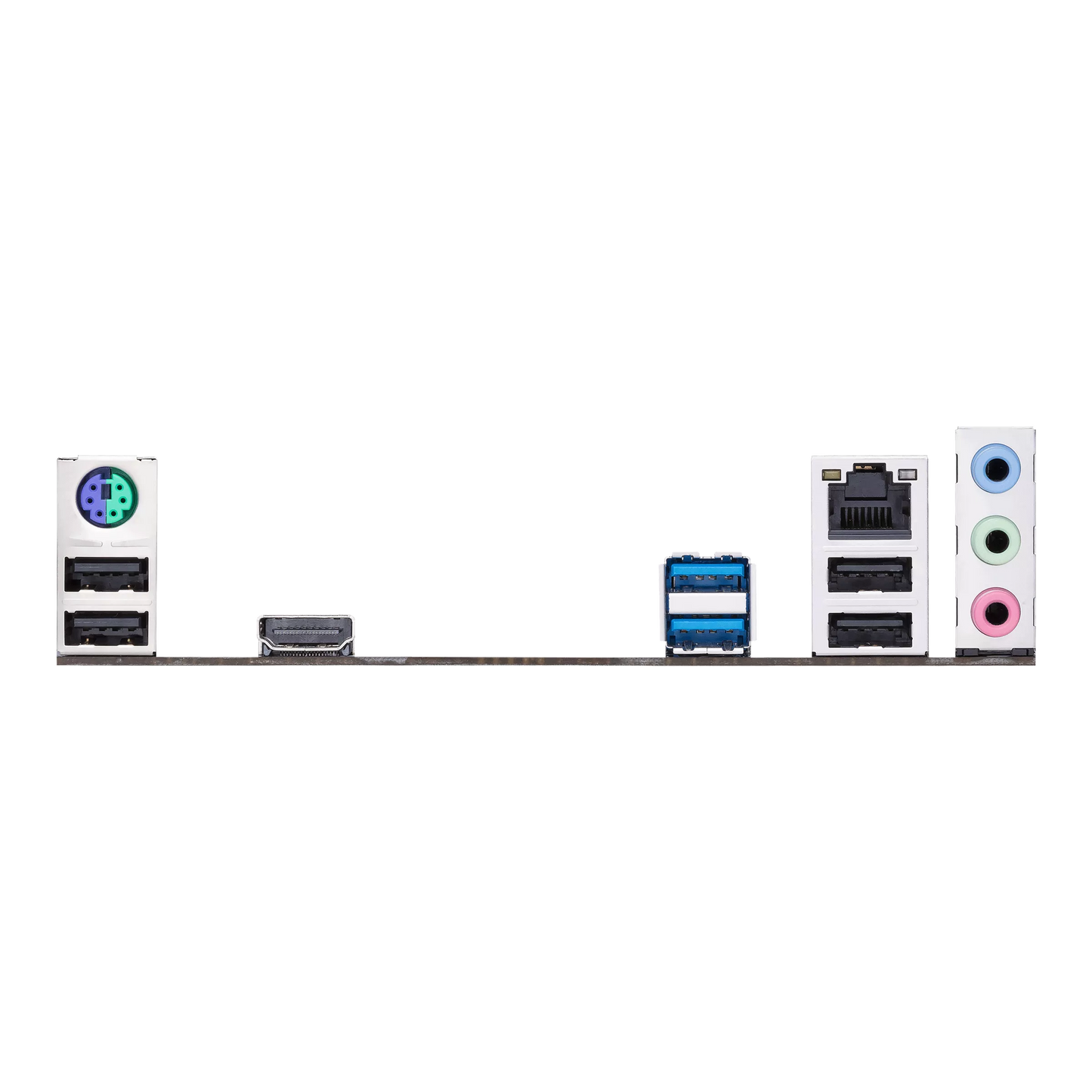

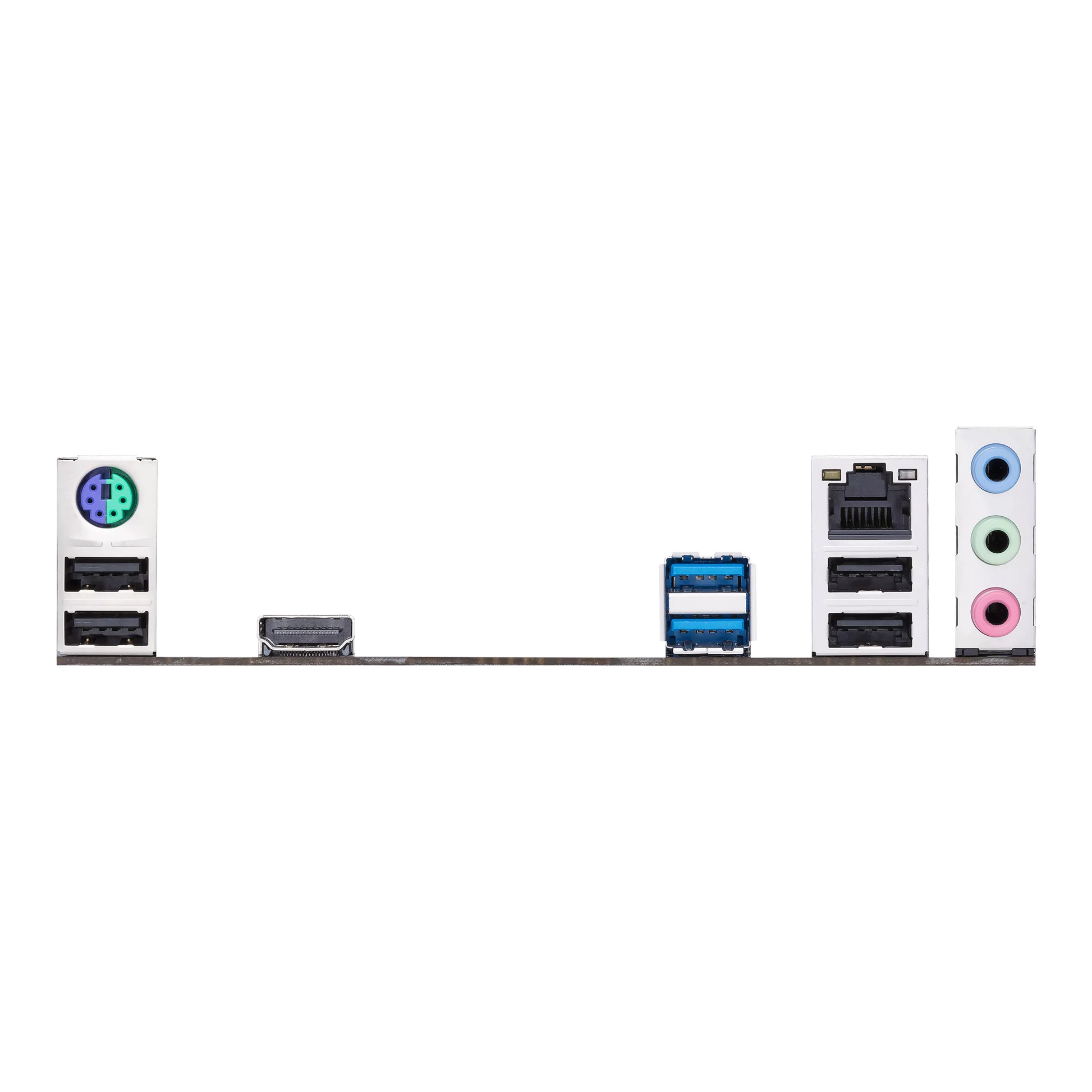

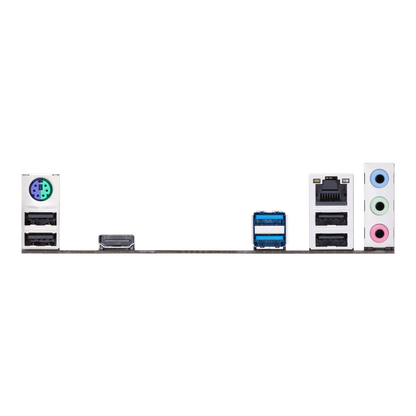

Back Panel I/O Ports:

• 2 x USB 3.2 Gen 1 (Type-A)
• 4 x USB 2.0 (Type-A)
• 1 x HDMI® port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

• Fan and Cooling:

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header

• Power Connectors:

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

• Storage:

  • 3 x SATA 6Gb/s ports

• USB:

  • 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
  • 1 x USB 2.0 header (supports 2 additional USB 2.0 ports)

• Miscellaneous:

  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x Speaker header
  • 1 x 10-1 pin System Panel header

Special Features:

• ASUS 5X PROTECTION III:

  • Includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O.

• ASUS Q-Design:

  • Q-DIMM, Q-Slot.

• Thermal Solution:

  • Aluminum heatsink design.

• Non-stop Durability:

  • Anti-moisture coating and USBGuard for enhanced durability.

BIOS:

• 128 Mb Flash ROM, UEFI AMI BIOS.

Manageability:

• WOL by PME, PXE.

Operating System Compatibility:

• Windows® 11 64-bit or Windows® 10 64-bit.

Form Factor:

• mATX Form Factor (9.2" x 8.0" / 23.4 cm x 20.3 cm).

Included Accessories:

• 2 x SATA 6Gb/s cables

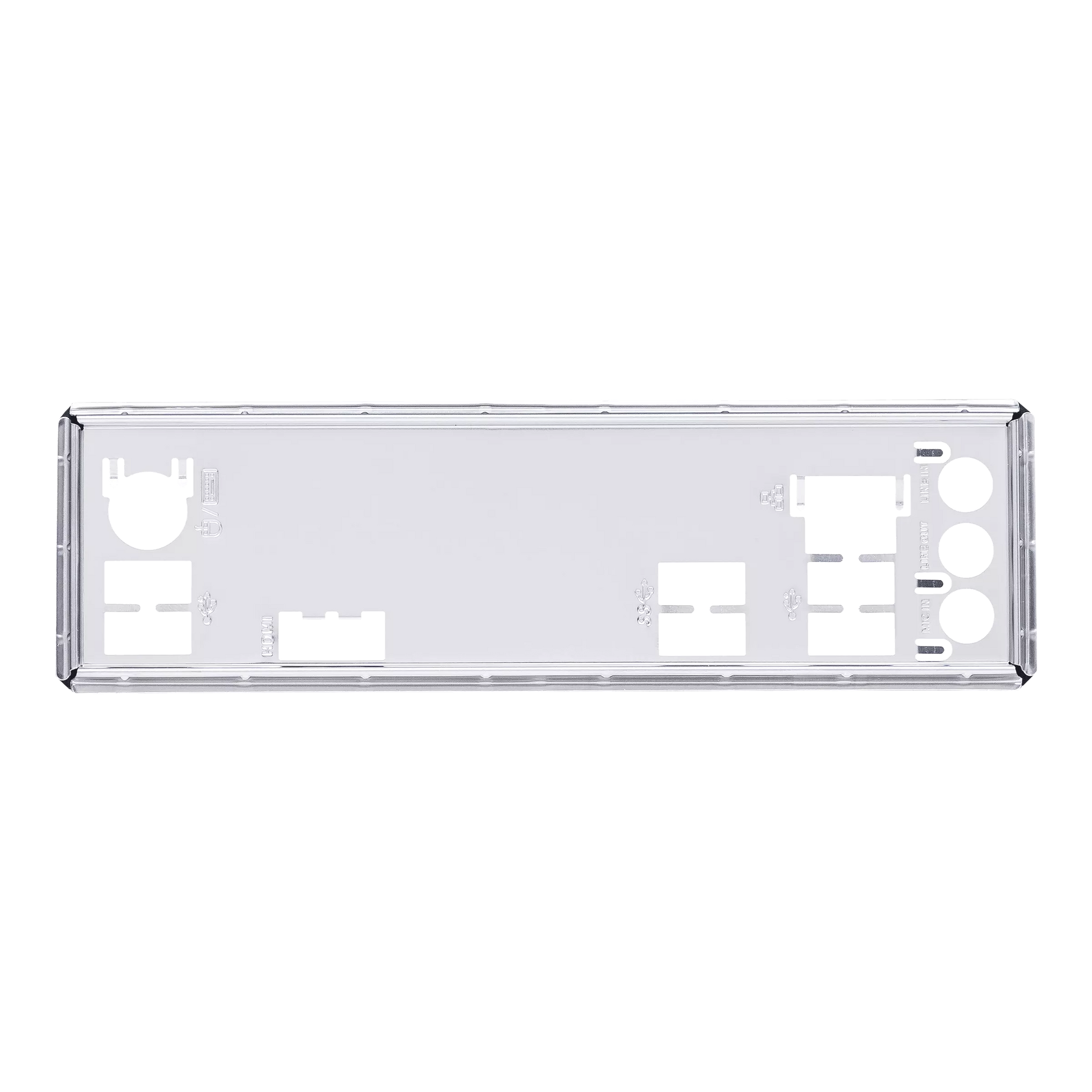

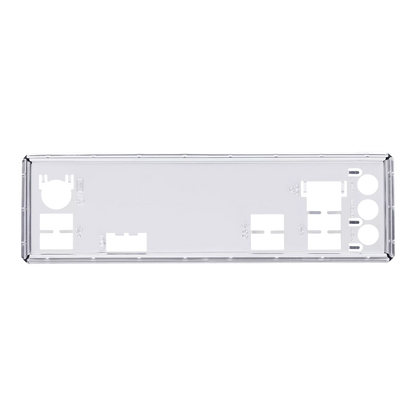

• 1 x I/O Shield
• Support DVD
• User guide
