ASUS

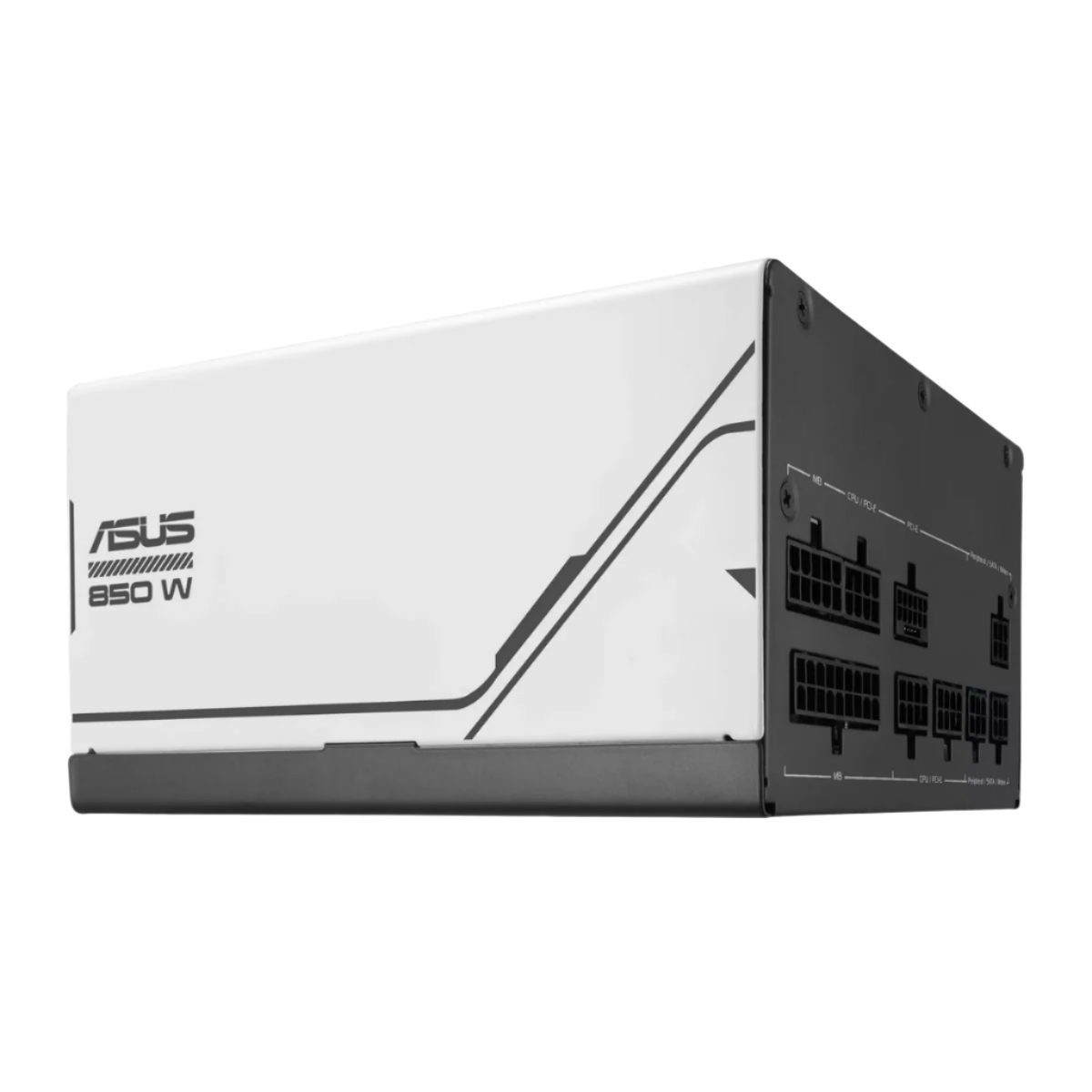

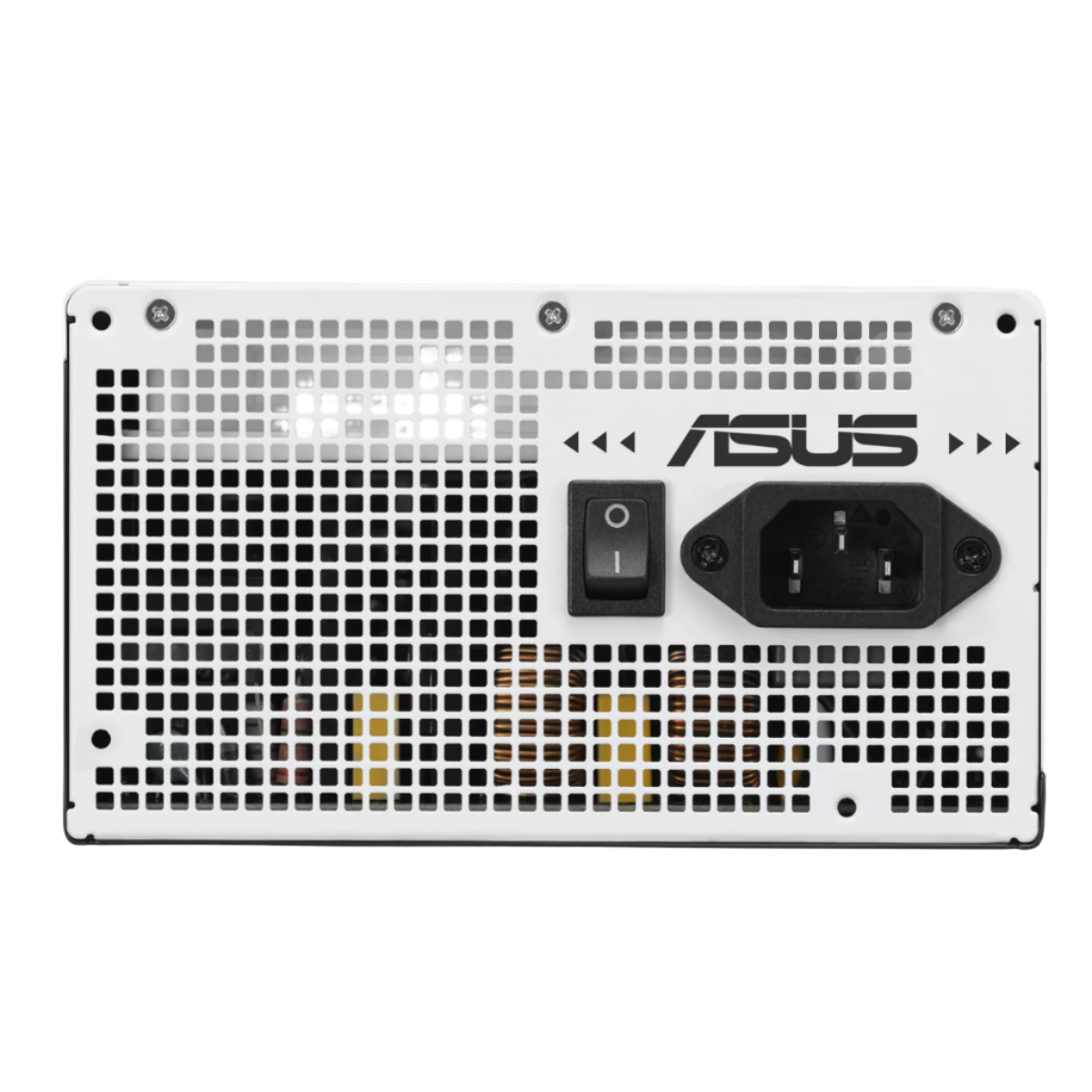

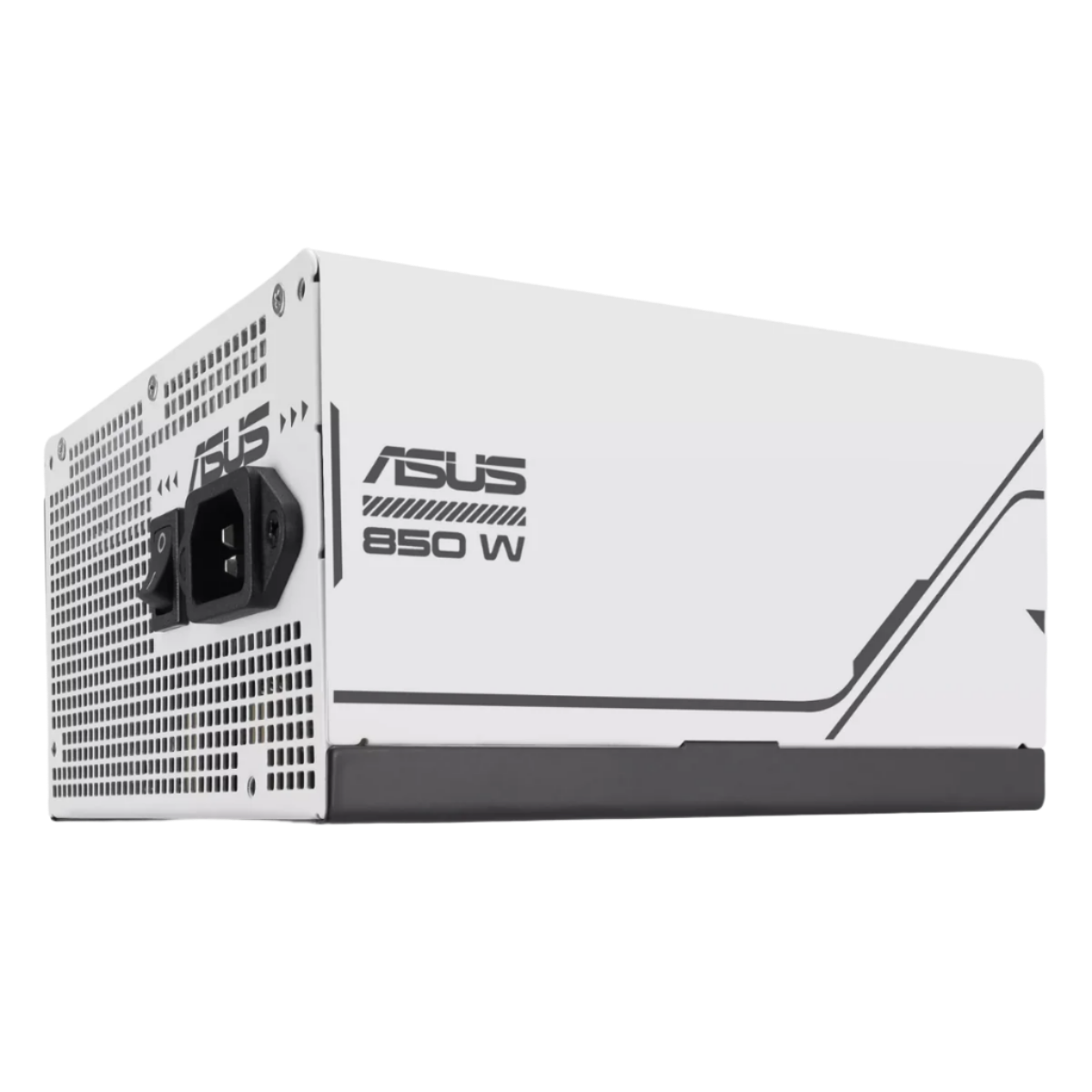

ASUS PRIME AP-850G 850W 1X150MM FAN, 5SATA, 8PIN PCIE, ACTIVE PFC, MODULAR, 80PLUS - GOLD (WHITE)

ASUS PRIME AP-850G 850W 1X150MM FAN, 5SATA, 8PIN PCIE, ACTIVE PFC, MODULAR, 80PLUS - GOLD (WHITE)

₱7,000.00
₱7,000.00
Sale Sold out
Shipping calculated at checkout.

Product Description

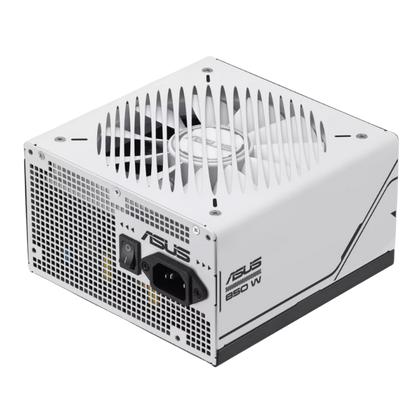

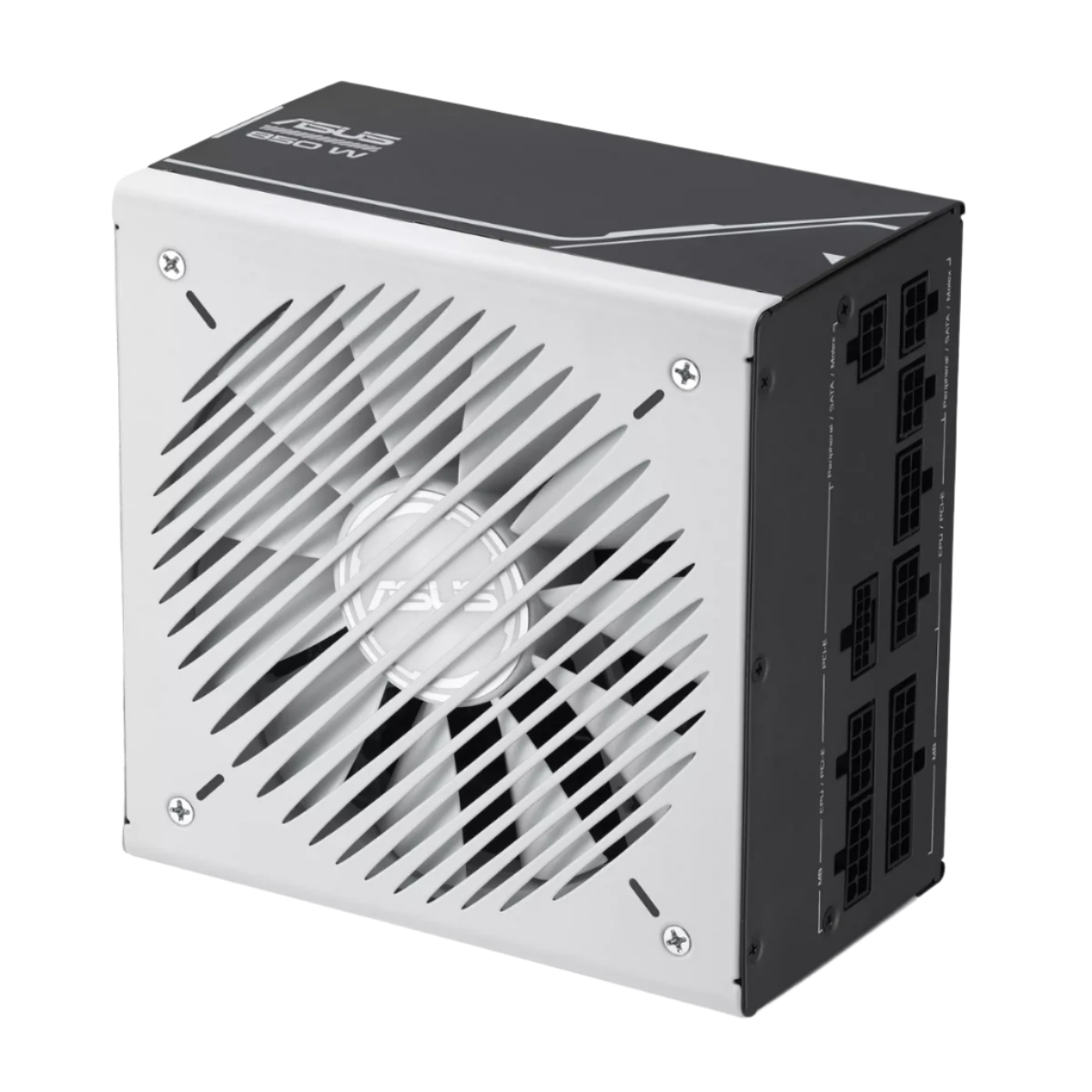

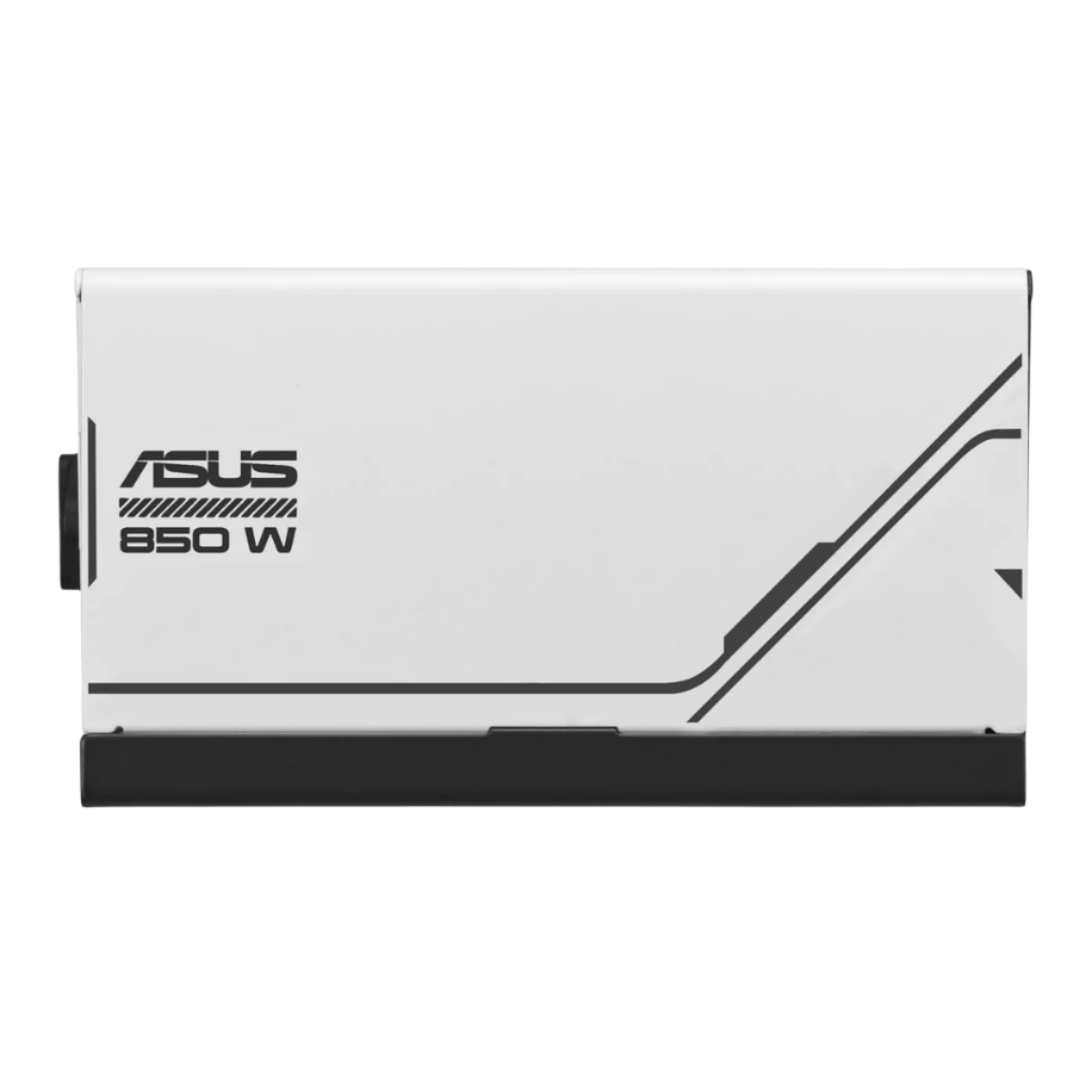

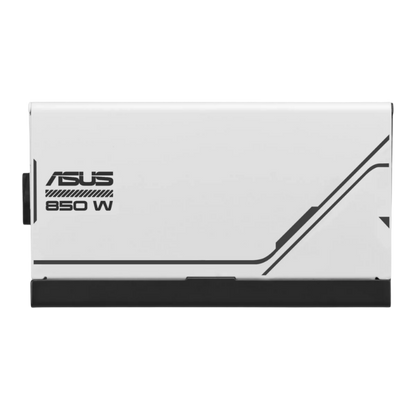

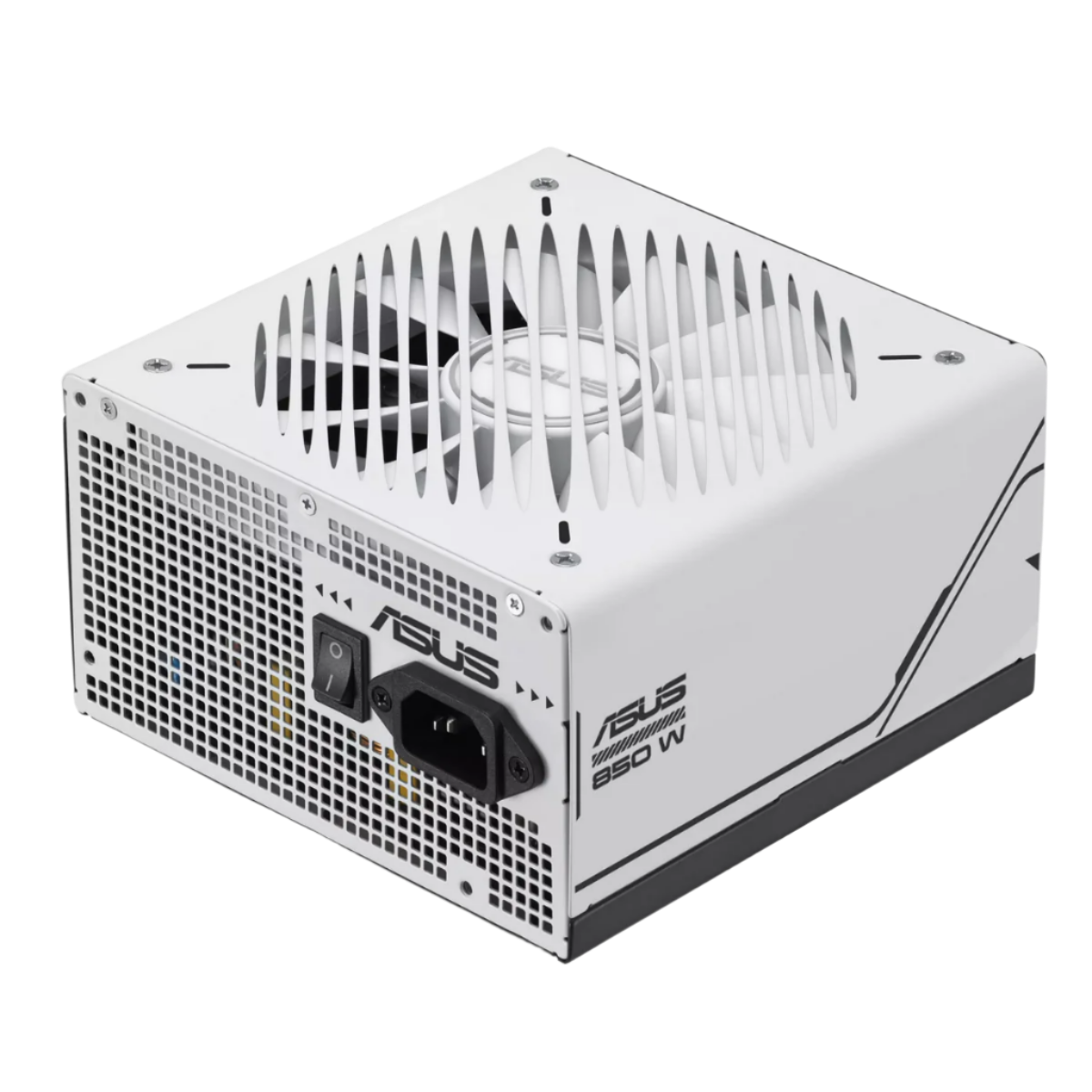

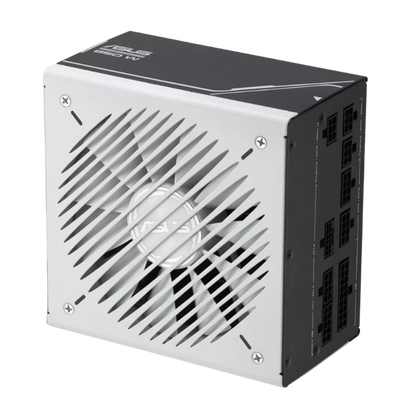

The ASUS Prime 850W Gold PSU delivers efficient and reliable power for versatile PCs and gaming rigs, featuring an 80 Plus Gold certification thanks to its high-quality Japanese capacitors and premium components. Its dual ball fan bearings ensure durability, lasting up to twice as long as standard sleeve bearings. Fully compliant with ATX 3.0 guidelines, it includes a 16-pin PCIe cable, making it compatible with the latest PCIe Gen 5.0 graphics cards.

Product Specifications

  • Model: AP-850G
  • Intel Form Factor: ATX12V
  • PFC Type: Active PFC
  • ATX Standard: ATX 3.0
  • Dimensions: 150 mm (W) x 150 mm (D) x 86 mm (H)
  • Efficiency: 80 Plus Gold
  • MTBF: >120,000 hours @ 25°C
  • Protection Features:
    • OPP (Over Power Protection)
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • SCP (Short Circuit Protection)
    • OCP (Over Current Protection)
    • OTP (Over Temperature Protection)
  • Hazardous Materials: ROHS compliant

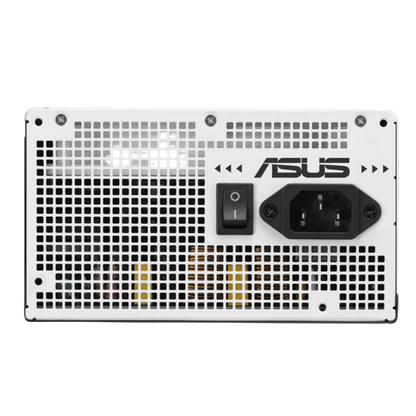

  • AC Input Range: 100-240 VAC
  • DC Output Voltage:
    • +3.3V: 20A
    • +5V: 20A
    • +12V: 70.5A
    • -12V: 0.3A
    • +5Vsb: 2.5A
  • Maximum Load:
    • Combined Load:
      • +3.3V: 110W
      • +5V: 110W
      • +12V: 846W
      • -12V: 3.6W
      • +5Vsb: 12.5W
  • Total Output: 850W

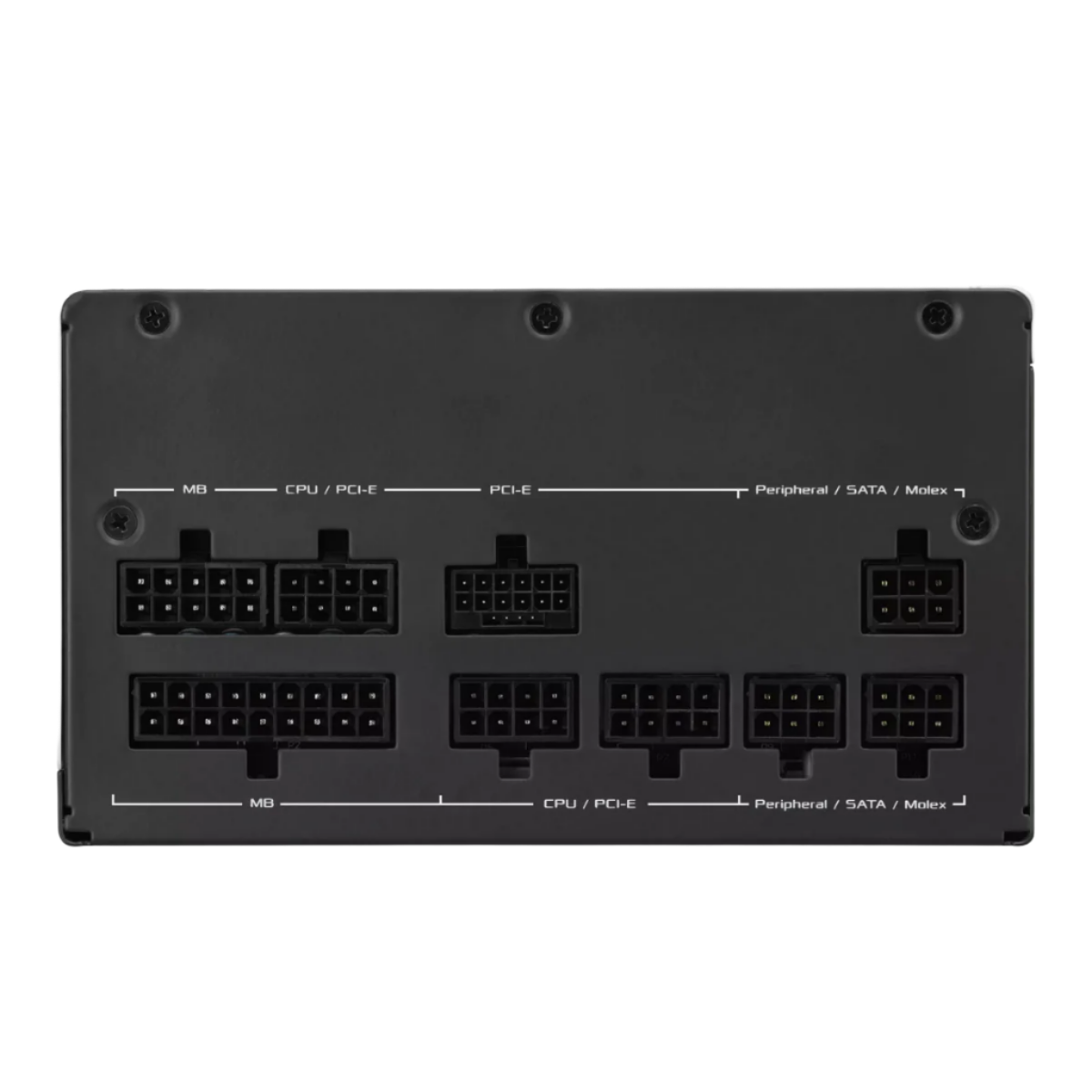

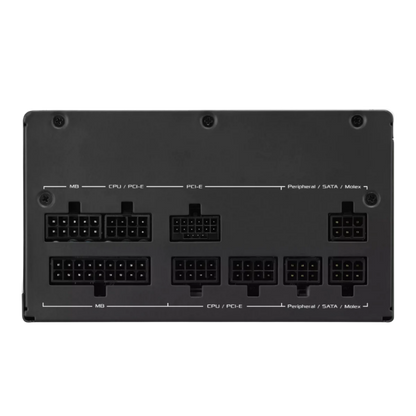

  • Cable Connectors:
    • 1 x MB 24/20-pin
    • 2 x CPU 4+4-pin
    • 1 x PCI-E 16-pin (both PSU & connector side)
    • 3 x PCI-E 8-pin
    • 5 x SATA
    • 3 x Peripheral
  • Package Contents:
    • 1 x Power Cord
    • 1 x Motherboard Power Cable (610 mm)
    • 2 x CPU Cables (650 mm)
    • 1 x PCI-E Gen 5 16-pin Cable (675 mm)
    • 1 x PCI-E 16-pin to 8-pin/8-pin Cable (675 mm)
    • 1 x PCI-E 1-to-1 Cable (675 mm)
    • 1 x SATA 1-to-2 Cable (400 + 120 mm)
    • 1 x SATA 1-to-3 Cable (400 + 120 + 120 mm)
    • 1 x Peripheral 1-to-3 Cable (400 + 150 + 150 mm)
    • 1 x User Manual
  • Weight: 1.502 kg
  • 0dB Technology: No
  • 0dB Fan Button: No
