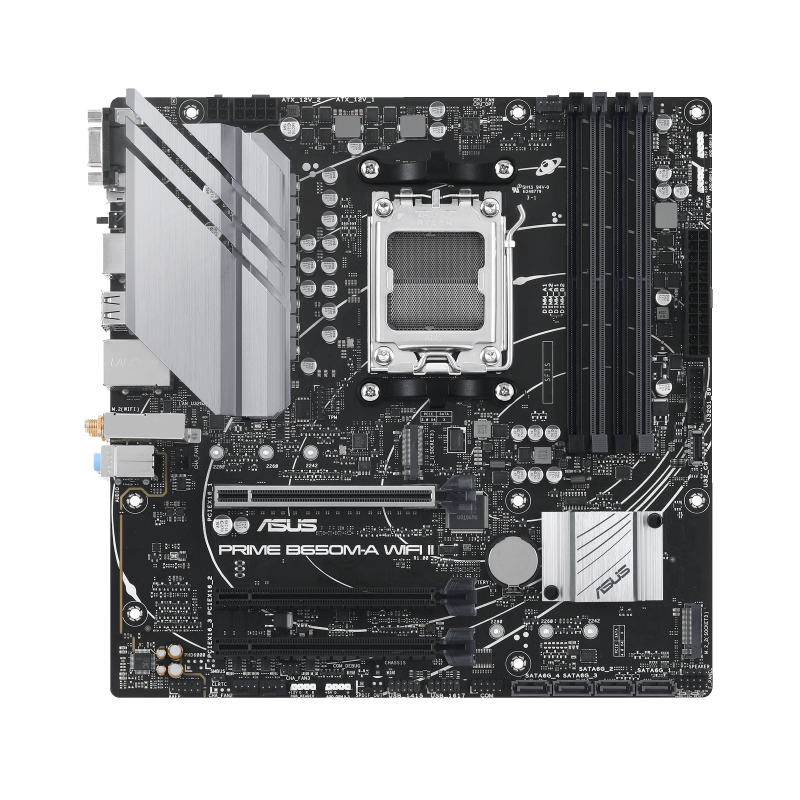

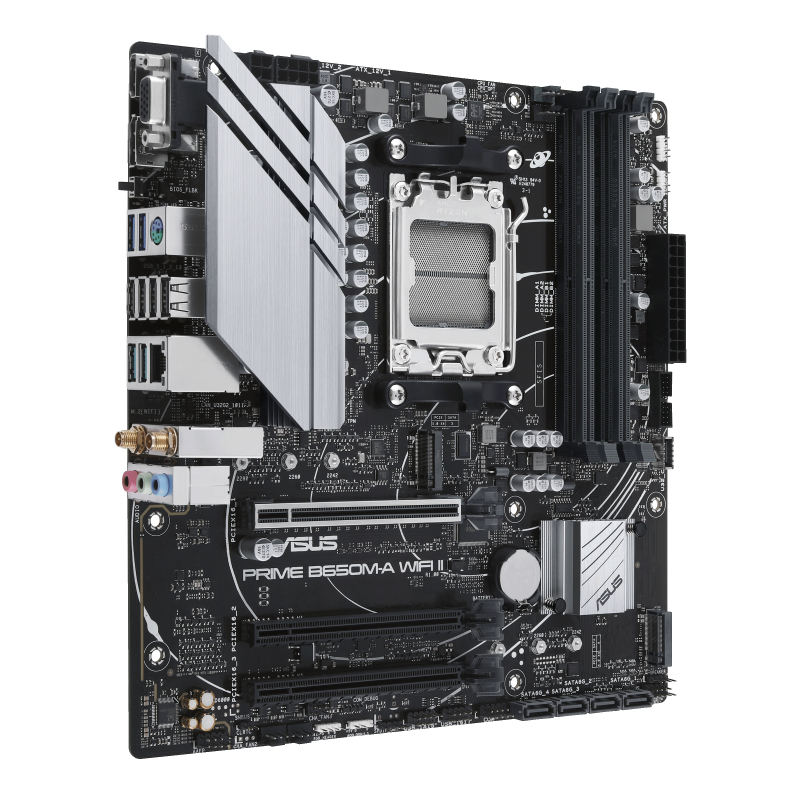

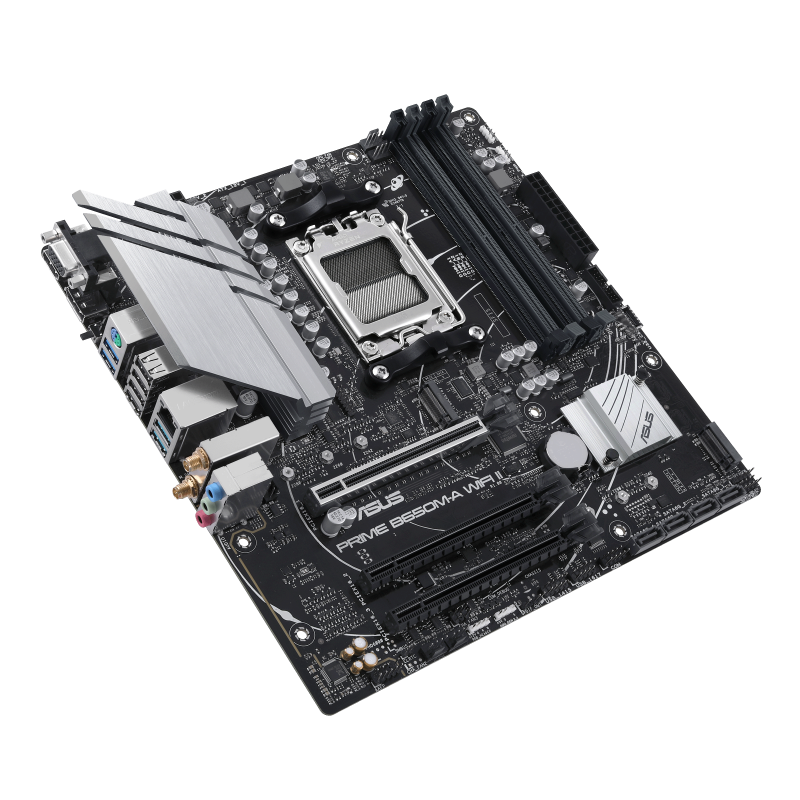

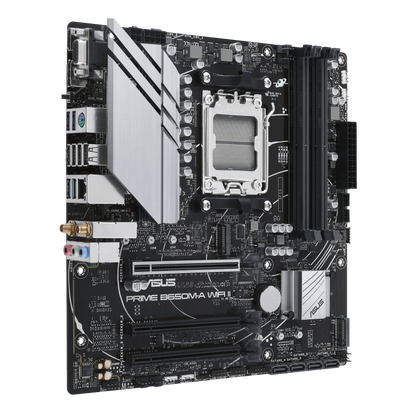

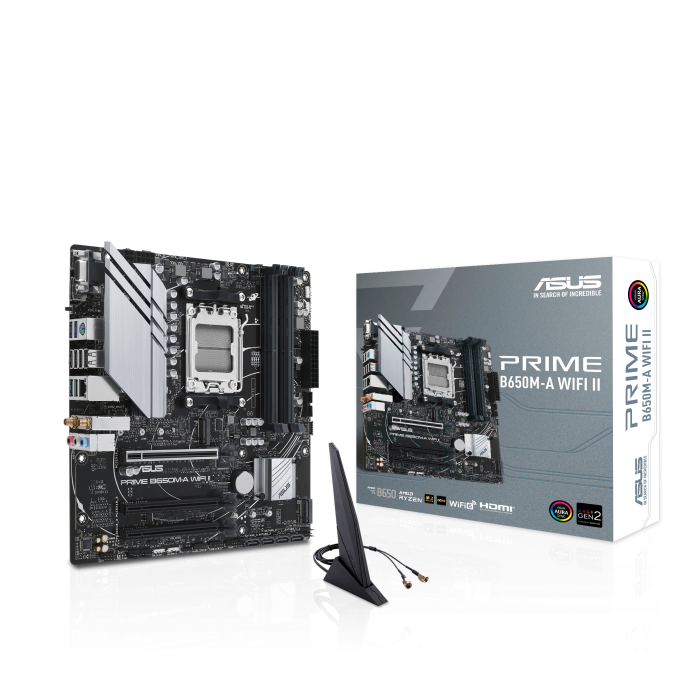

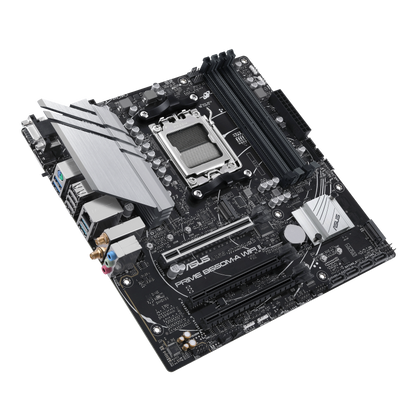

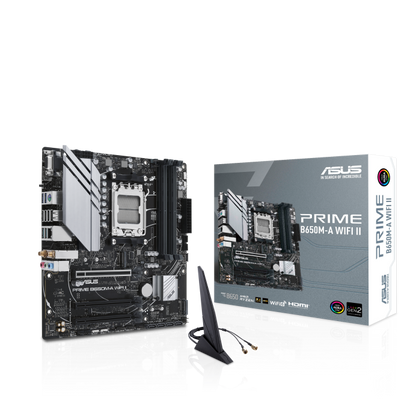

ASUS PRIME B650M-A WIFI II 4DDR5 2XM.2 MOTHERBOARD (HDMI, DP, VGA) WIFI+BT

Specifications

• Model: ASUS PRIME B650M-A WIFI II
• Form Factor: Micro-ATX (mATX)
• Chipset: AMD B650
• Socket: AM5
• Compatible Processors:
  • AMD Ryzen 7000 Series

Memory

• Slots: 4 x DDR5 DIMM slots
• Maximum Capacity: Up to 192GB
• Supported Speeds: Up to DDR5-6400 (OC)
• ECC Support: Non-ECC, Unbuffered Memory

Storage

• M.2 Slots: 2 x M.2 (PCIe 4.0 x4)
• SATA Ports: 4 x SATA III (6Gbps)

Expansion Slots

• PCIe x16: 1 x PCIe 4.0 x16 (supports x16 mode)
• PCIe x1: 2 x PCIe 3.0 x1

Graphics Output

(Requires an APU with integrated graphics for video output)

• Ports:
  • 1 x HDMI 2.1 (Supports up to 4K @ 60Hz)
  • 1 x DisplayPort 1.4
  • 1 x VGA (D-Sub)

Audio & Networking

• Audio: Realtek ALC897 7.1-Channel HD Audio
• LAN: Realtek 2.5Gb Ethernet
• Wireless:
  • Wi-Fi 6E
  • Bluetooth 5.3

Rear I/O Ports

• USB Ports:
  • 1 x USB 3.2 Gen 2 Type-C
  • 1 x USB 3.2 Gen 2 Type-A
  • 2 x USB 3.2 Gen 1 Type-A
  • 4 x USB 2.0
• Video Ports: HDMI, DisplayPort, VGA
• Other:
  • 1 x PS/2 (Keyboard/Mouse Combo)
  • 3 x Audio Jacks (Line-In, Line-Out, Mic-In)
  • 1 x RJ45 (LAN)
  • 2 x Wi-Fi Antenna Connectors

Internal Connectors

• Fan Headers: 1 x CPU Fan, 2 x Chassis Fans
• ARGB/RGB Headers: 2 x Aura Sync RGB Headers
• Front Panel Connectors: USB 3.2, USB 2.0, Audio, Power/Reset

Other Features

• BIOS: ASUS UEFI BIOS
• Durability: ASUS 5X Protection III (SafeSlot Core+, Overvoltage Protection, Stainless Steel Back I/O)
