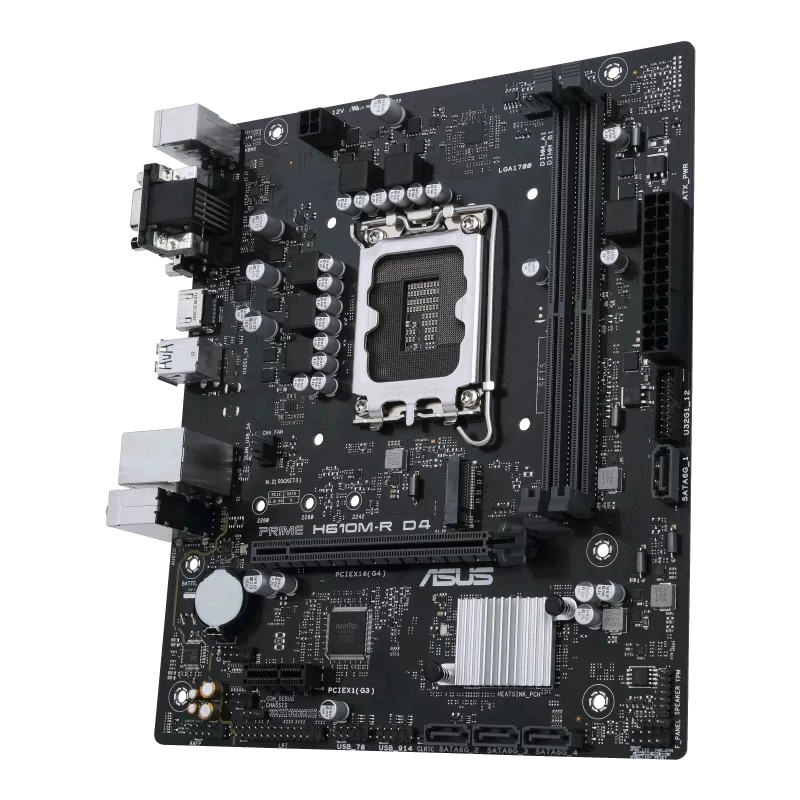

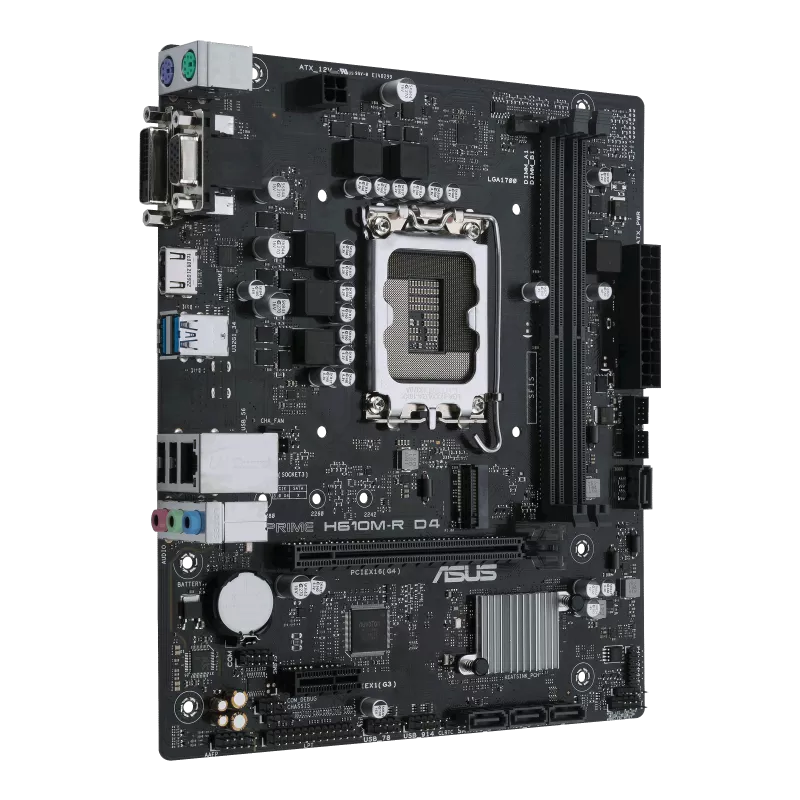

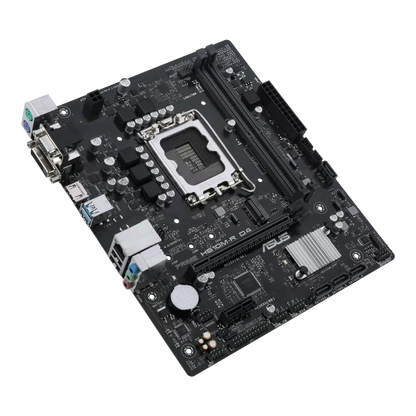

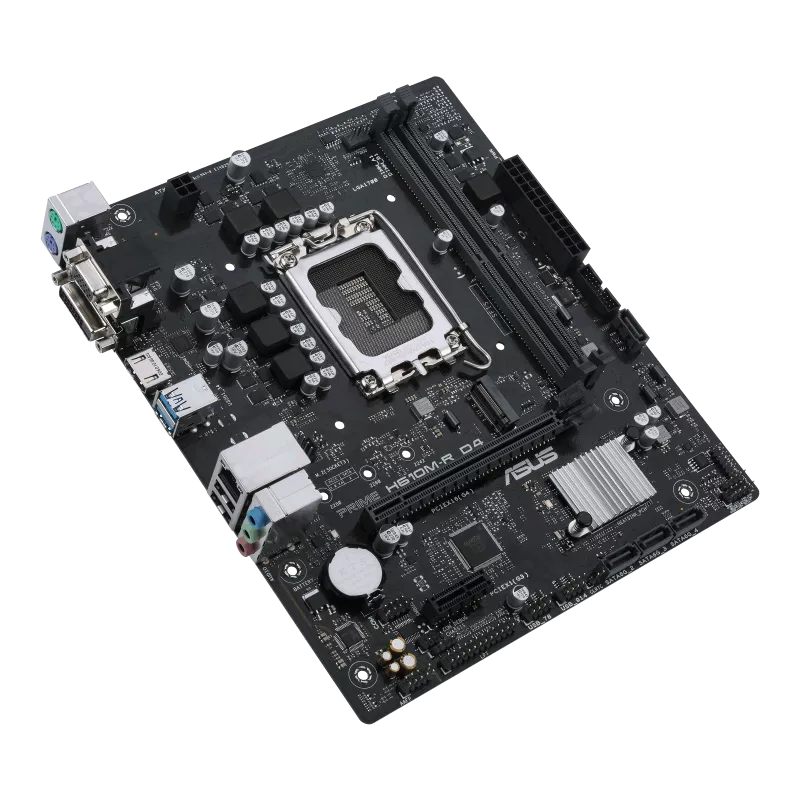

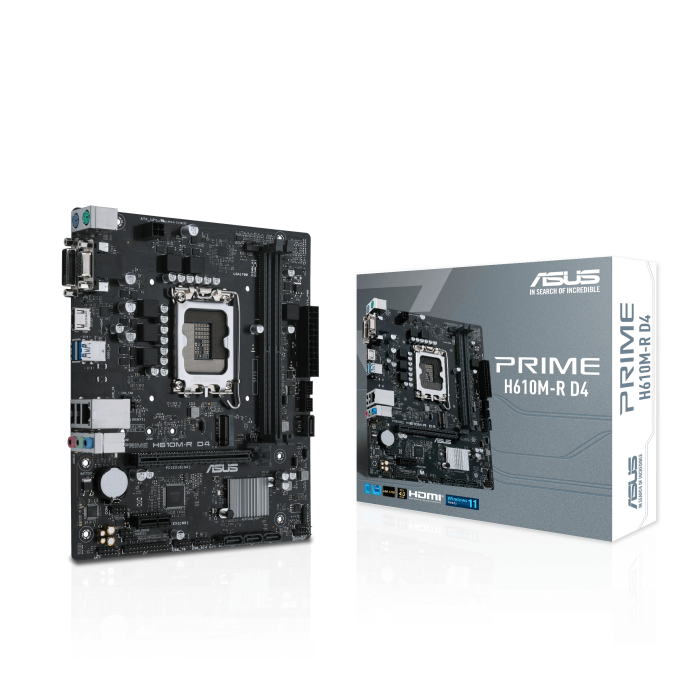

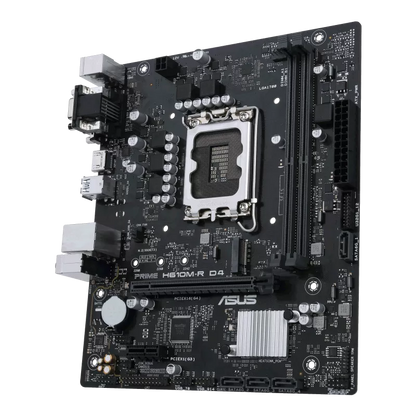

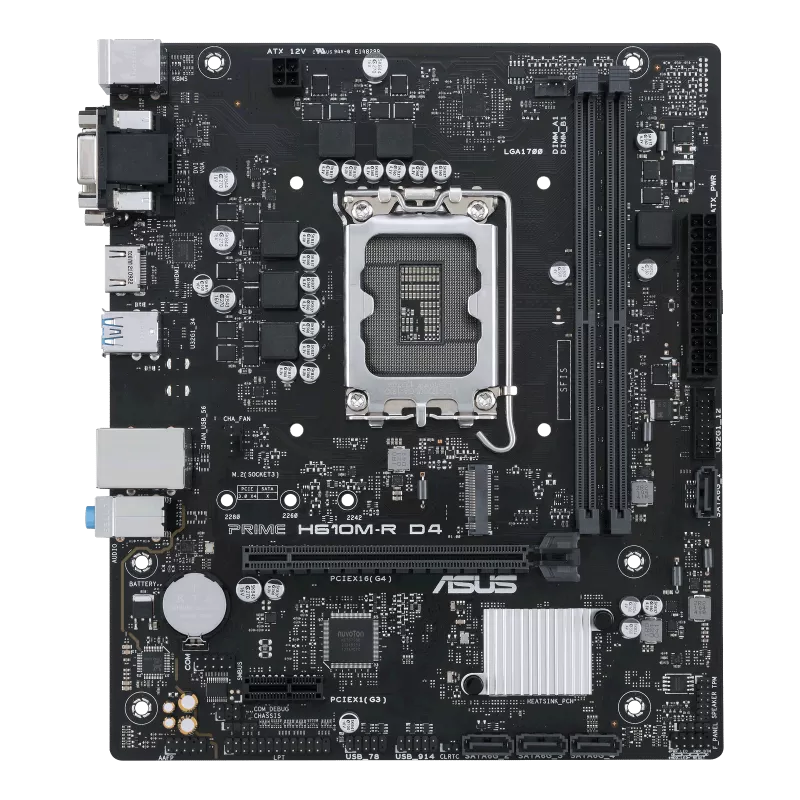

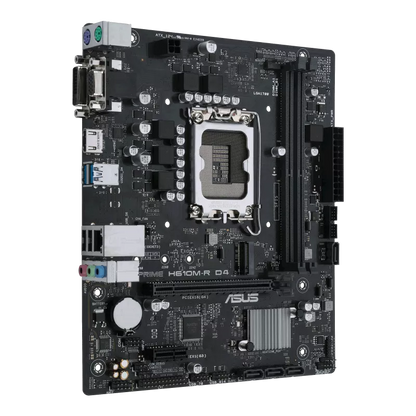

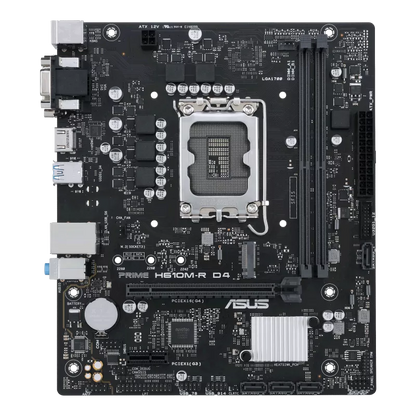

ASUS PRIME H610M-R D4 2DDR4 M.2 MOTHERBOARD (HDMI, DB15, DVI)

Specifications

• Model: ASUS PRIME H610M-R D4
• Form Factor: Micro-ATX (mATX)
• Chipset: Intel H610
• Socket: LGA 1700
• Compatible Processors:
  • 12th Gen Intel Core (Alder Lake)
  • 13th Gen Intel Core (Raptor Lake)

Memory

• Slots: 2 x DDR4 DIMM slots
• Maximum Capacity: Up to 64GB
• Supported Speeds: Up to DDR4-3200 MHz

Storage

• M.2 Slots: 1 x M.2 (PCIe 3.0 x4 & SATA)
• SATA Ports: 4 x SATA III (6Gbps)

Expansion Slots

• PCIe x16: 1 x PCIe 4.0 x16
• PCIe x1: 1 x PCIe 3.0 x1

Graphics Output

(Requires a compatible Intel CPU with integrated graphics for display output)

• Ports:
  • 1 x HDMI 2.1
  • 1 x VGA (DB15)
  • 1 x DVI-D

Audio & Networking

• Audio: Realtek ALC897 7.1-Channel HD Audio
• Ethernet: Realtek 1Gb LAN

Rear I/O Ports

• USB Ports:
  • 2 x USB 3.2 Gen 1 (Type-A)
  • 4 x USB 2.0
• Video Ports: HDMI, VGA (DB15), DVI-D
• Other:
  • 3 x Audio Jacks (Line-In, Line-Out, Mic-In)
  • 1 x RJ45 (LAN)

Internal Connectors

• Fan Headers: 1 x CPU Fan, 1 x Chassis Fan
• Front Panel Connectors: USB 3.2, USB 2.0, Audio, Power/Reset

Other Features

• BIOS: ASUS UEFI BIOS
• ASUS Features: ASUS 5X Protection III, ASUS OptiMem
