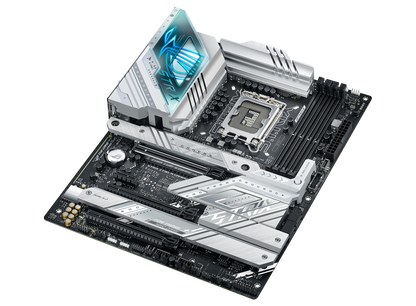

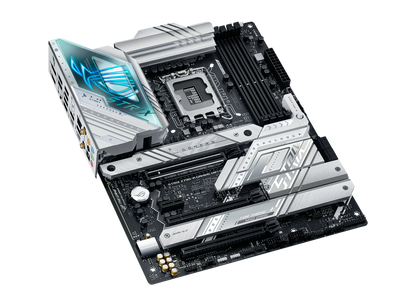

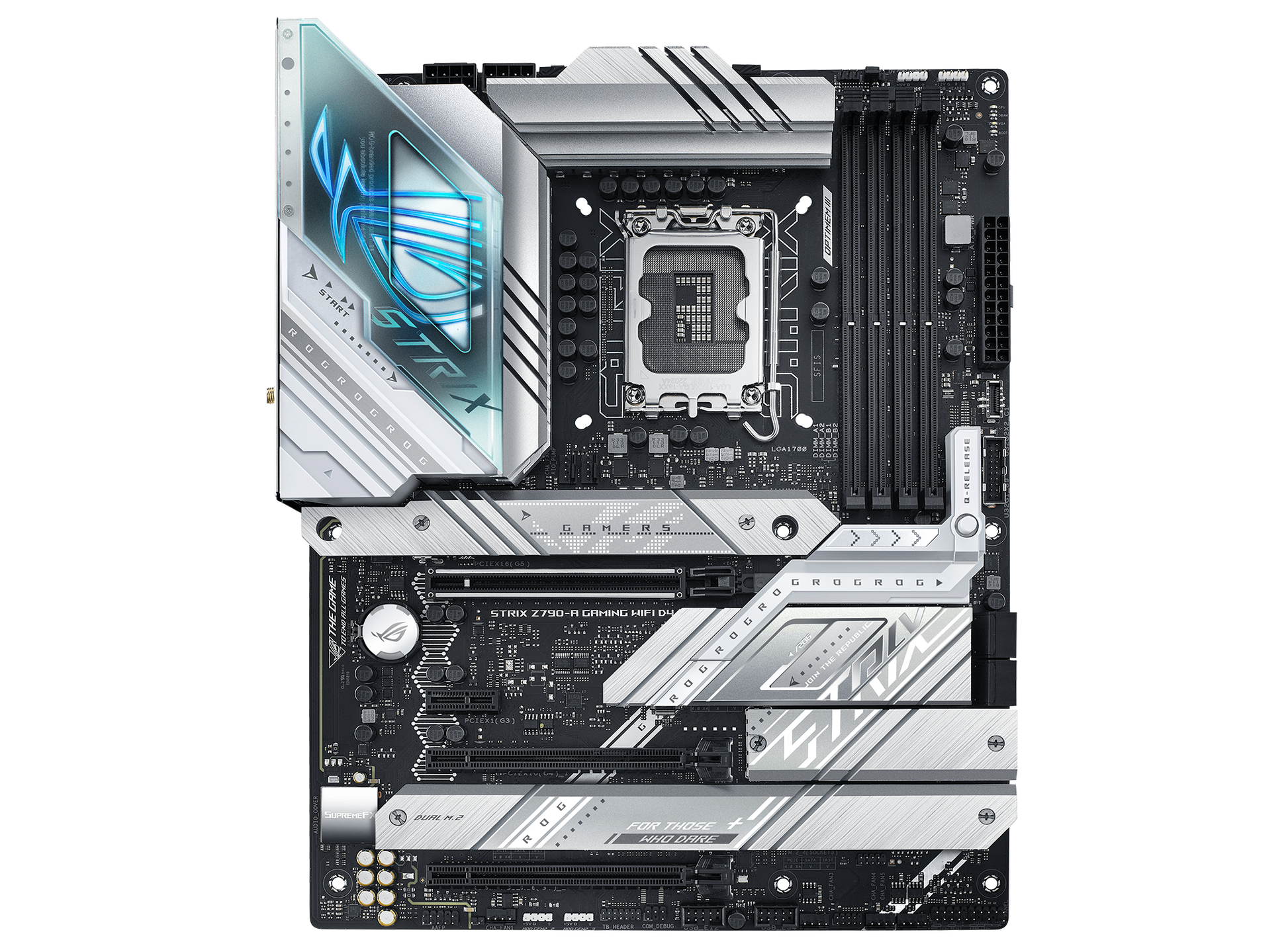

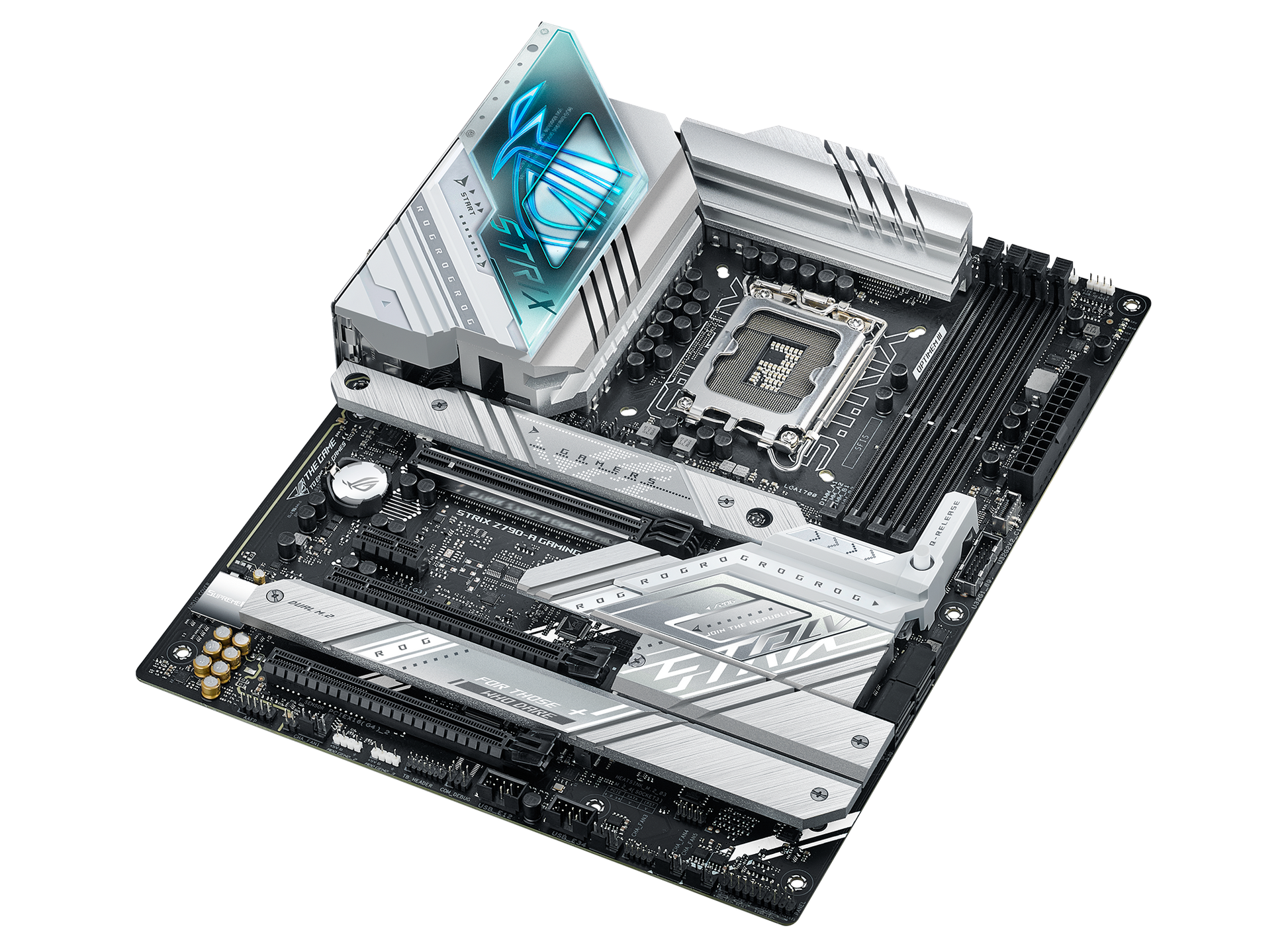

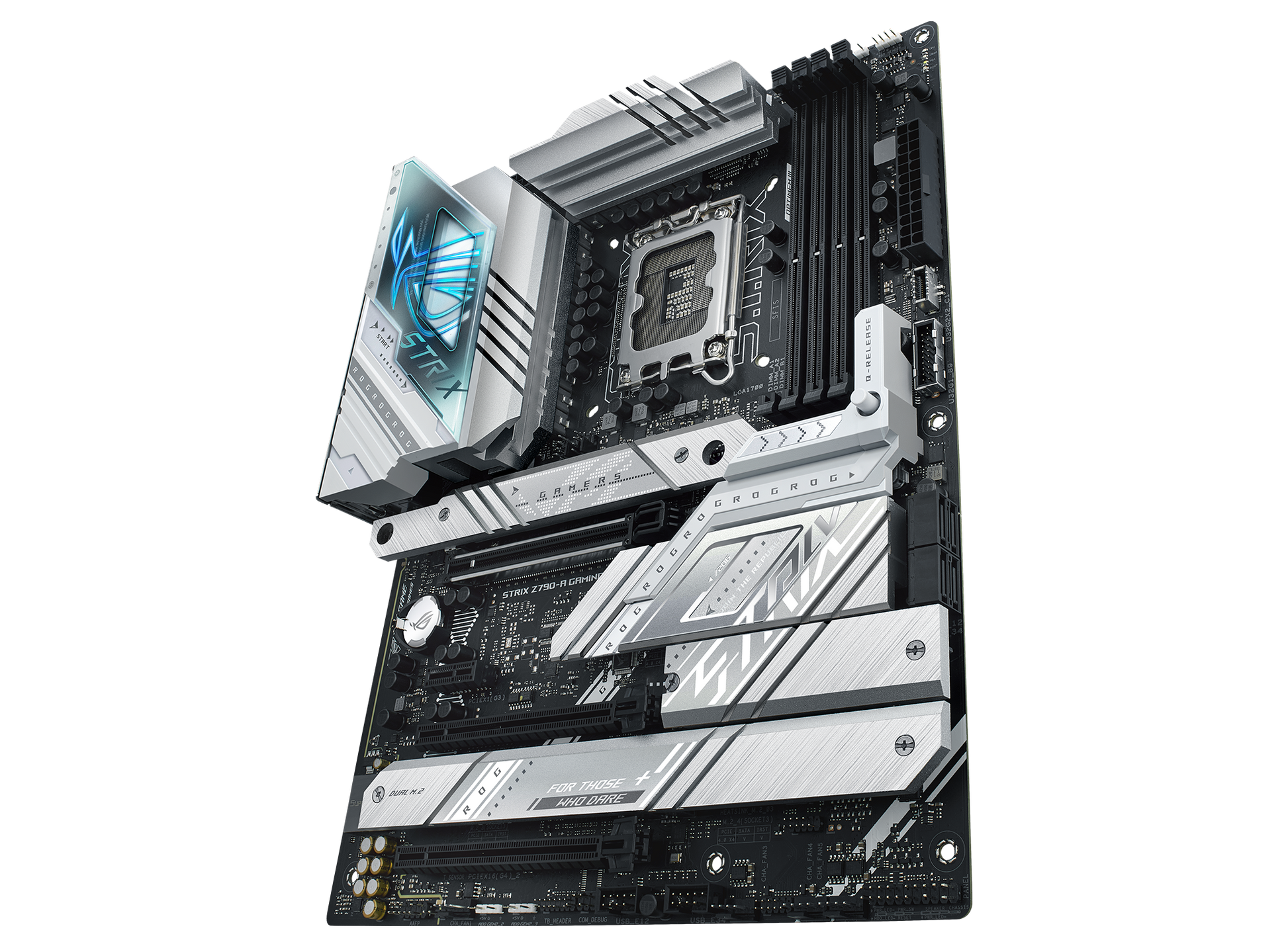

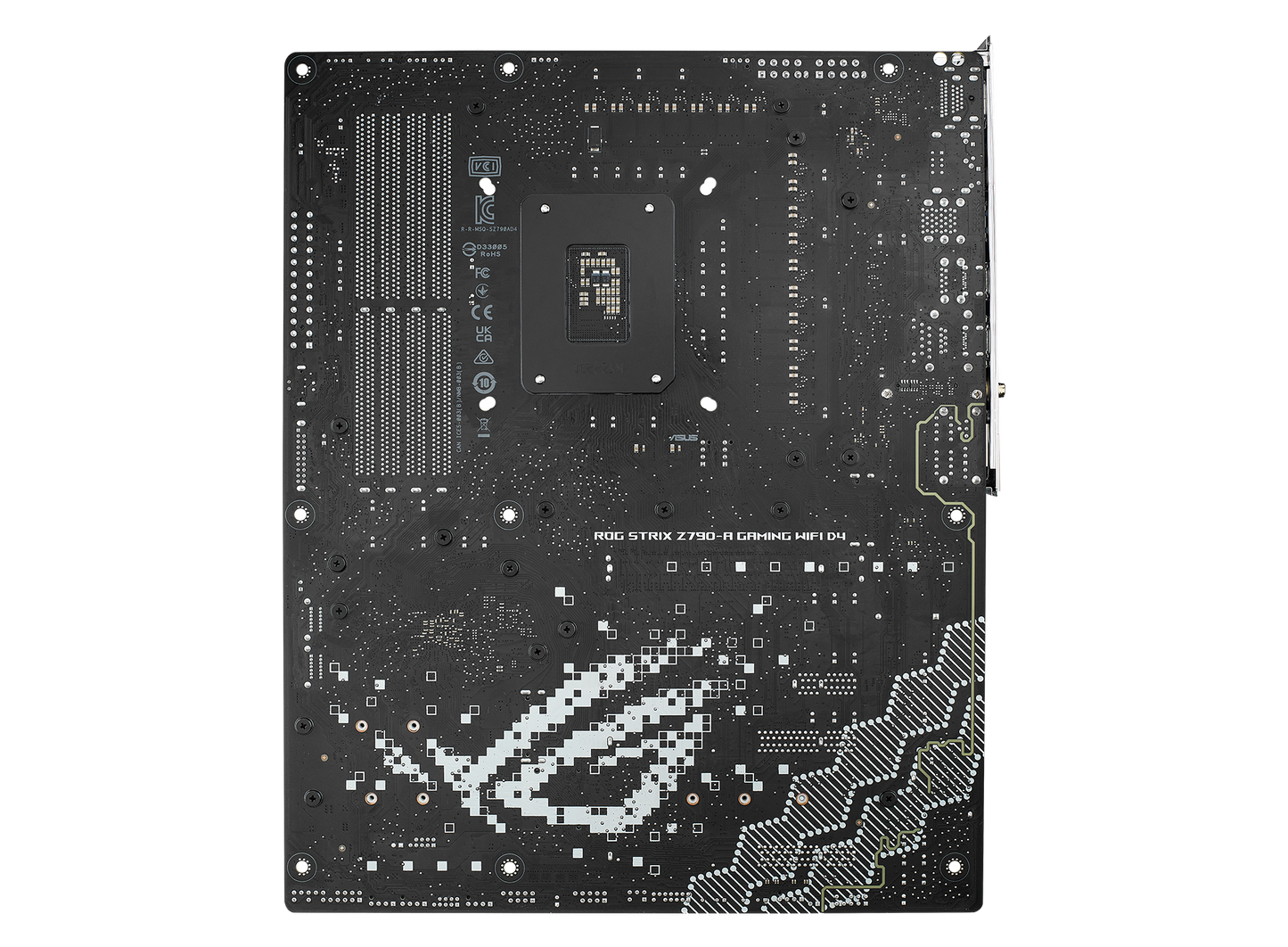

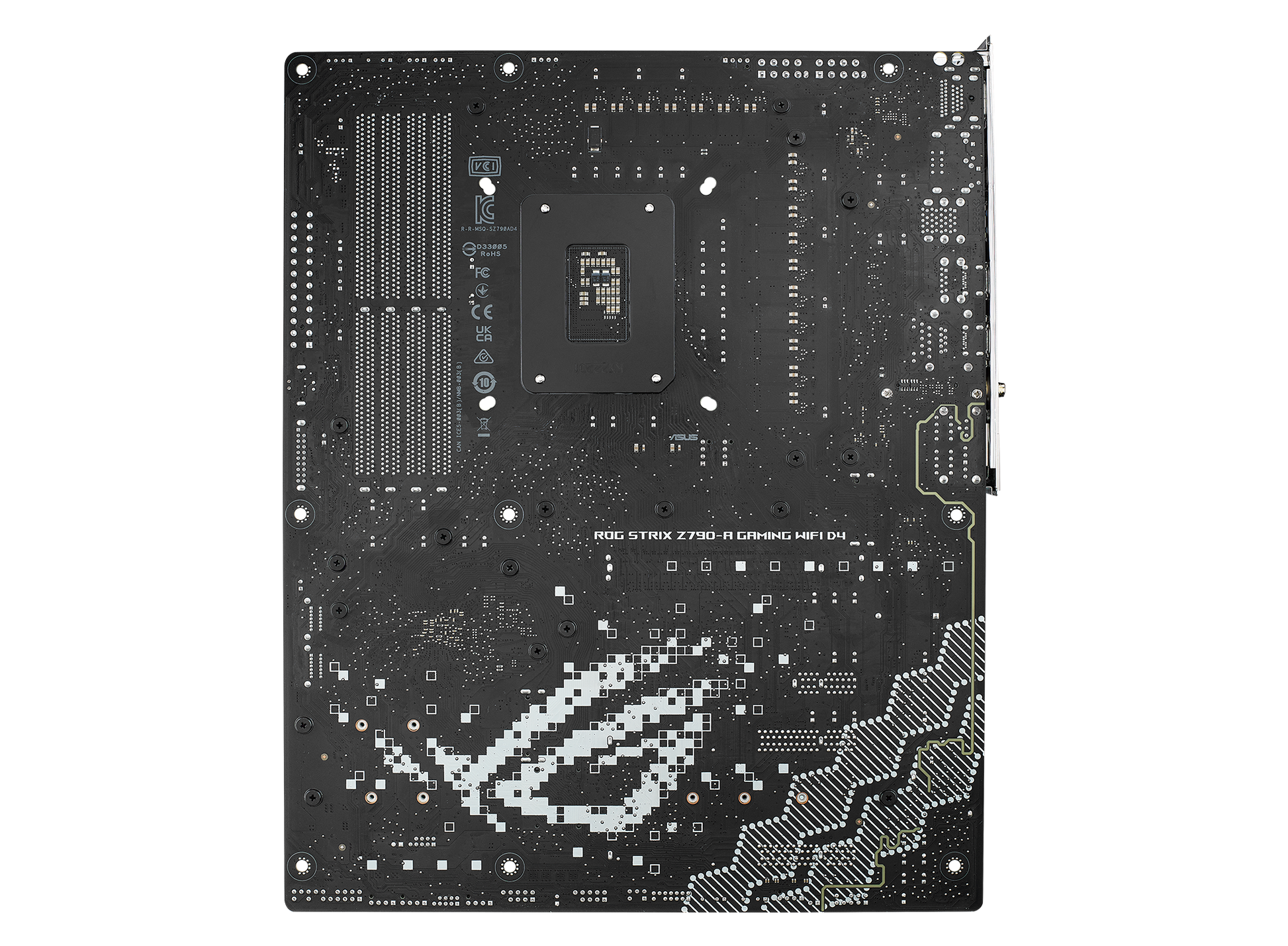

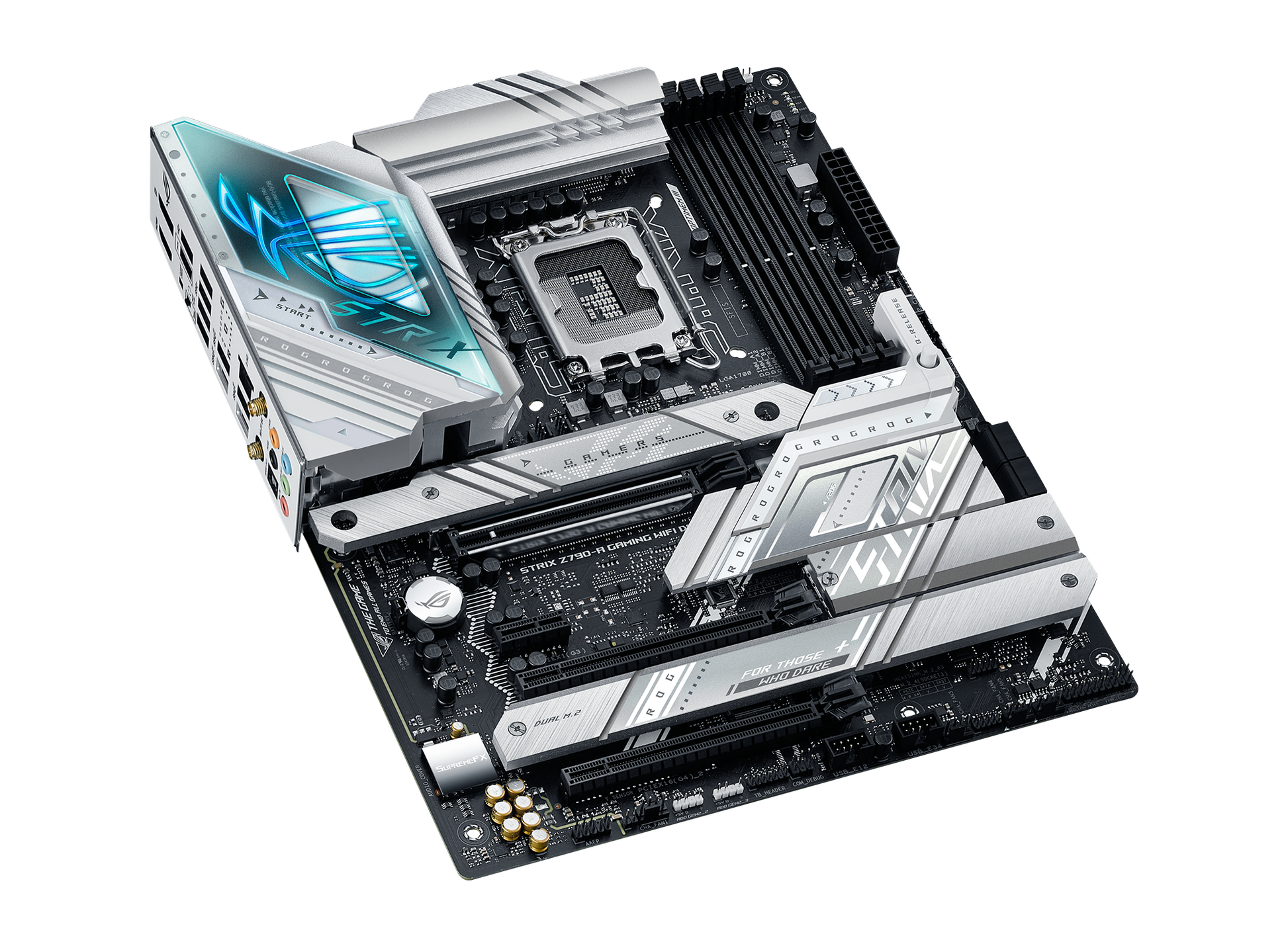

ASUS ROG STRIX Z790-A GAMING WIFI 4DDR4 4XM.2 MOTHERBOARD (HDMI, DP) WIFI+BT

Specifications:

CPU Support:

• Compatible with Intel® Core™ 12th, 13th, and 14th generation processors, as well as Pentium® Gold and Celeron® processors.

Chipset:

• Intel® Z790 chipset.

Memory:

• Supports up to 128 GB of DDR4 memory across four DIMM slots.
• Memory speeds up to 5333 MT/s (OC).
• Dual-channel architecture.
• Supports Intel® Extreme Memory Profile (XMP) for overclocking.

Storage:

• Four M.2 slots:
  • Two M.2 22110 slots supporting PCIe 4.0 x4.
  • One M.2 2280 slot supporting PCIe 4.0 x4.
  • One M.2 2280 slot supporting PCIe 3.0 x4.
• Six SATA 6Gb/s ports.

Expansion Slots:

• One PCIe 5.0 x16 SafeSlot (x16 mode).
• Two PCIe 4.0 x16 slots (x4 mode).
• One PCIe 3.0 x1 slot.

Graphics:

• One HDMI® port.
• One DisplayPort.

Networking:

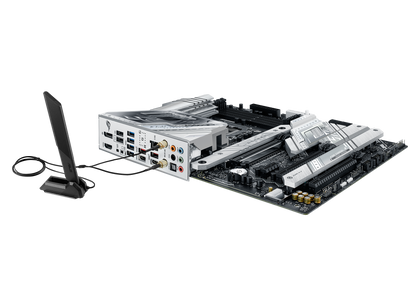

• Wi-Fi 6E (802.11 a/b/g/n/ac/ax) with 2x2 MIMO support.
• Bluetooth v5.2.
• One 10Gb Ethernet port.

USB Ports:

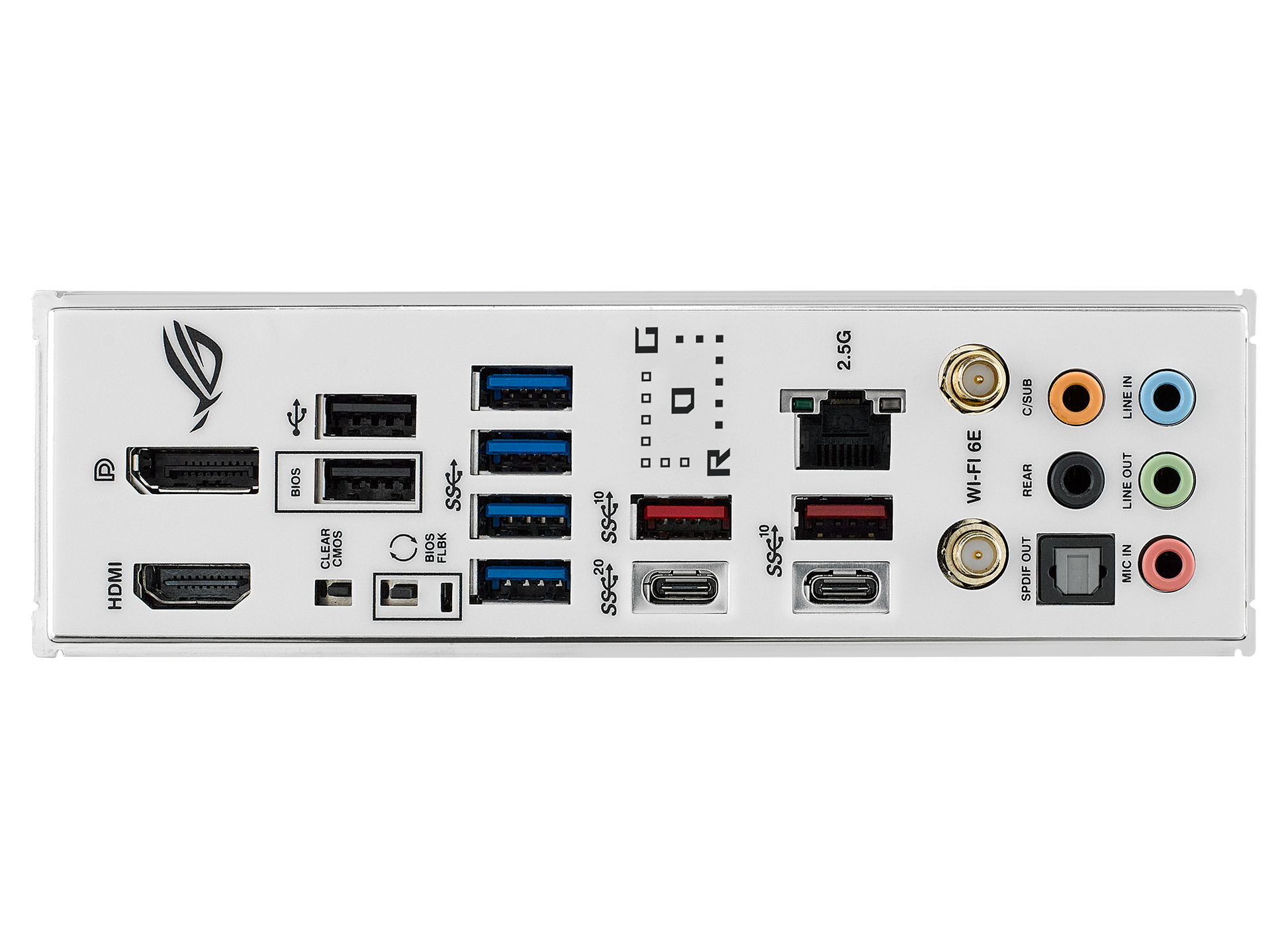

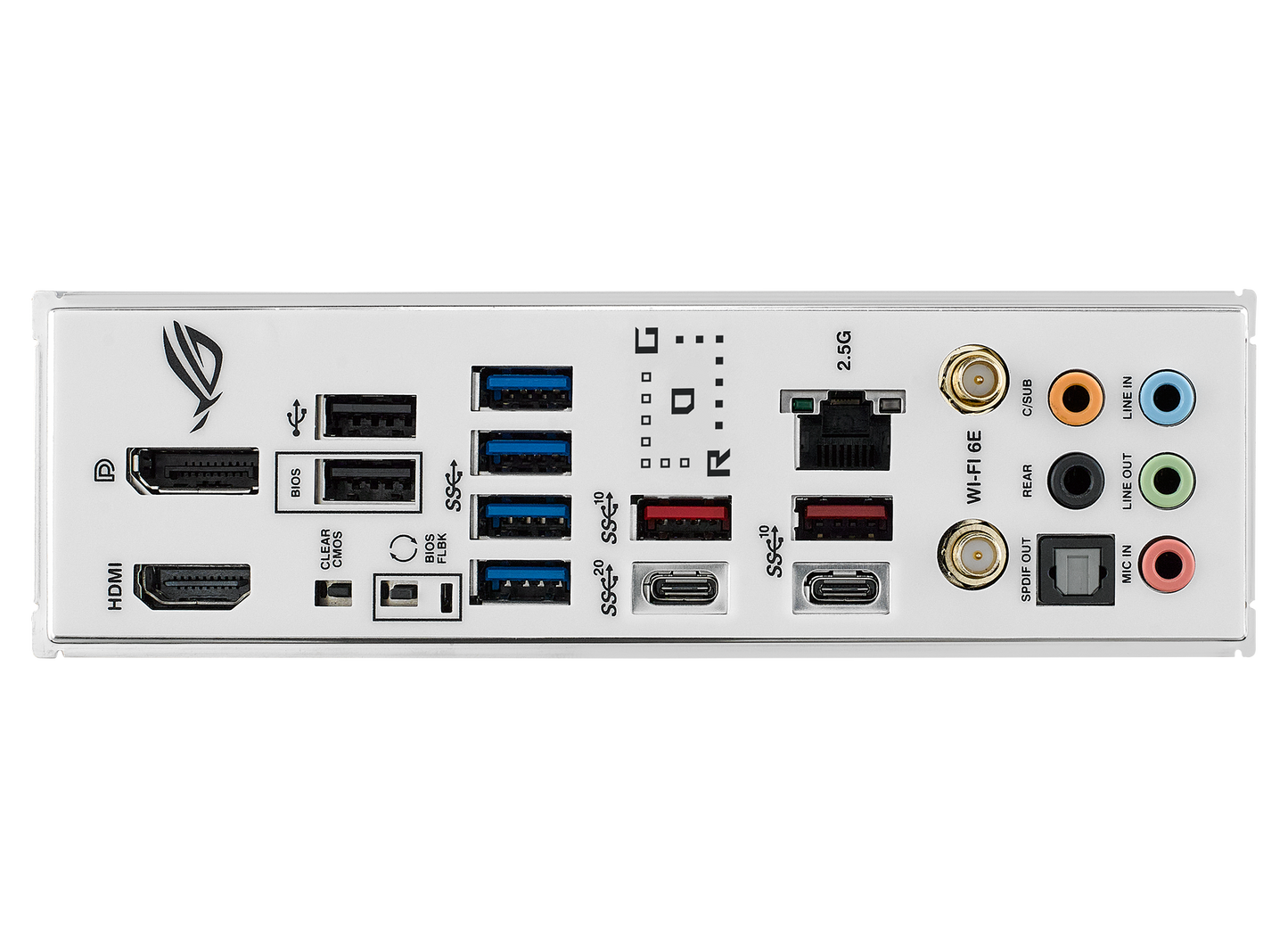

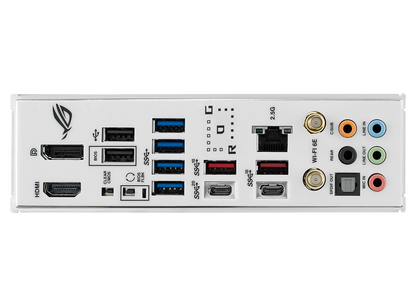

• Rear I/O:
  • One USB 3.2 Gen 2x2 Type-C® port.
  • One USB 3.2 Gen 2 Type-A port.
  • Four USB 3.2 Gen 1 Type-A ports.
  • Two USB 2.0 Type-A ports.
• Front Panel:
  • One USB 3.2 Gen 2 Type-C® header.
  • One USB 3.2 Gen 1 header supporting two USB 3.2 Gen 1 ports.
  • Two USB 2.0 headers supporting four USB 2.0 ports.

Audio:

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080.
• Supports up to 32-Bit/384 kHz playback.
• Impedance sense for front and rear headphone outputs.

Cooling:

• Multiple fan headers with PWM/DC support.
• Dedicated AIO pump header.
• M.2 heatsinks for thermal management.

Form Factor:

• ATX form factor (12 x 9.6 inches).
