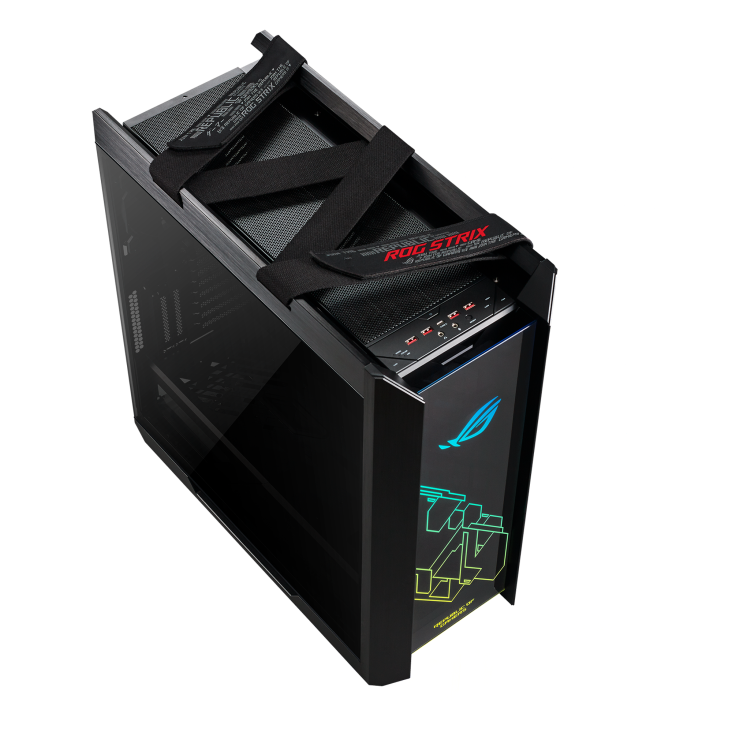

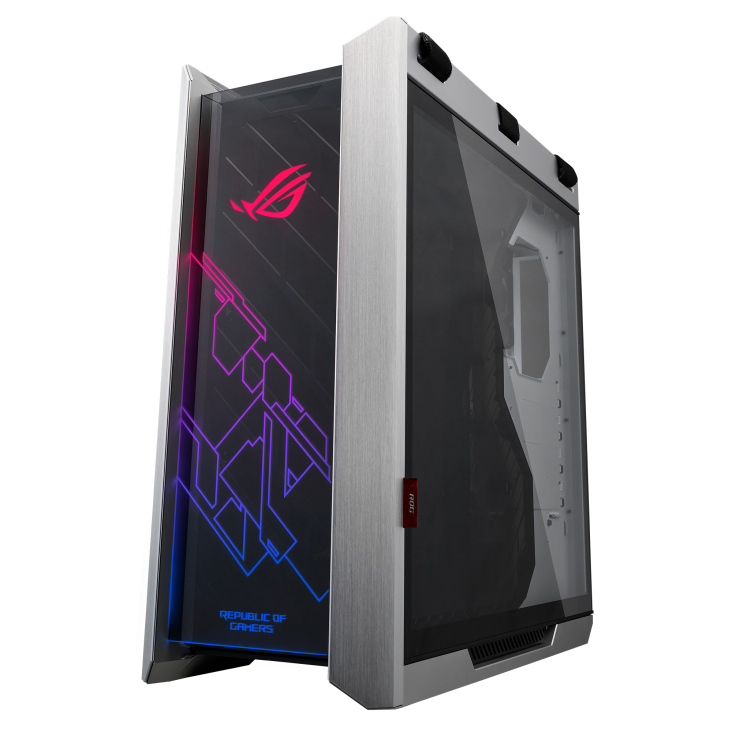

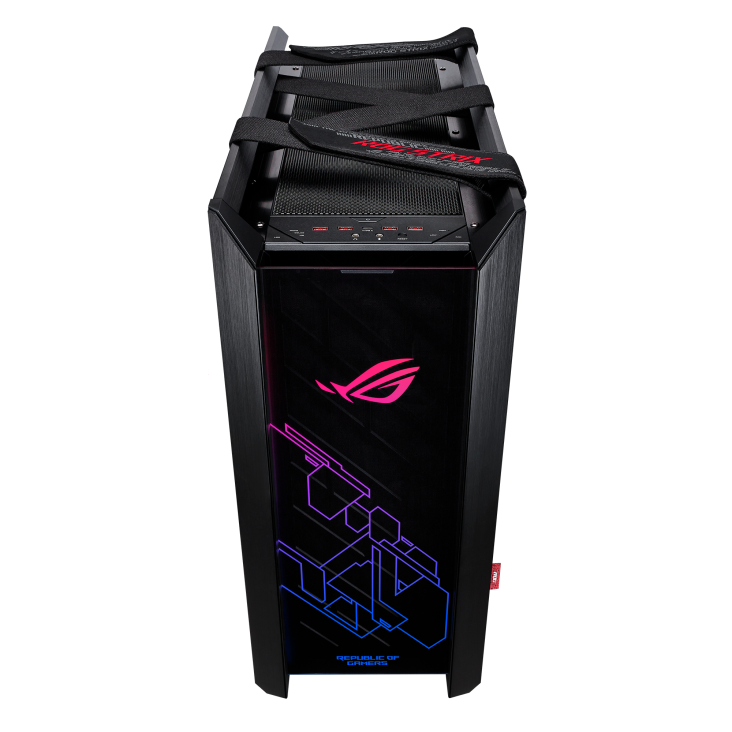

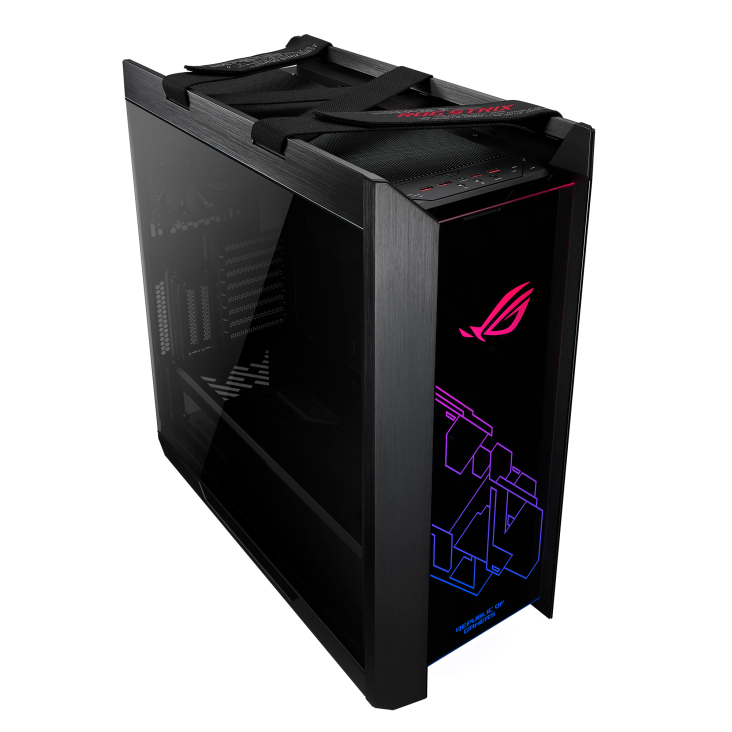

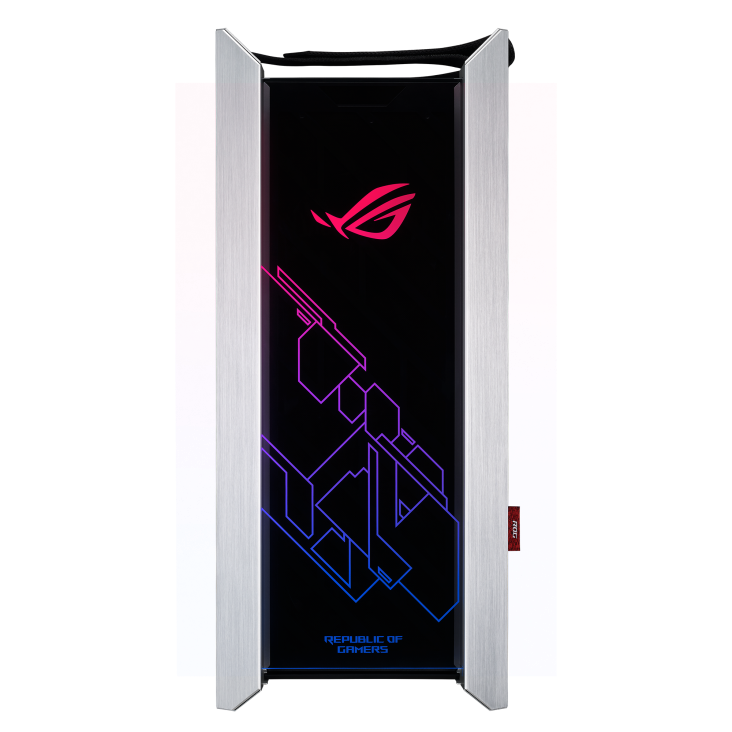

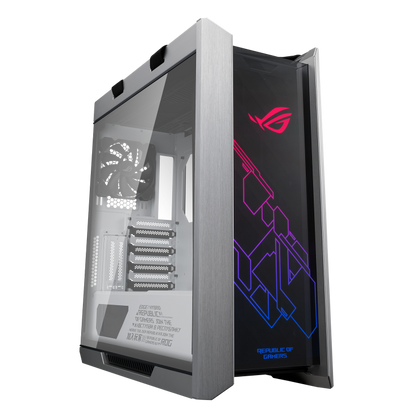

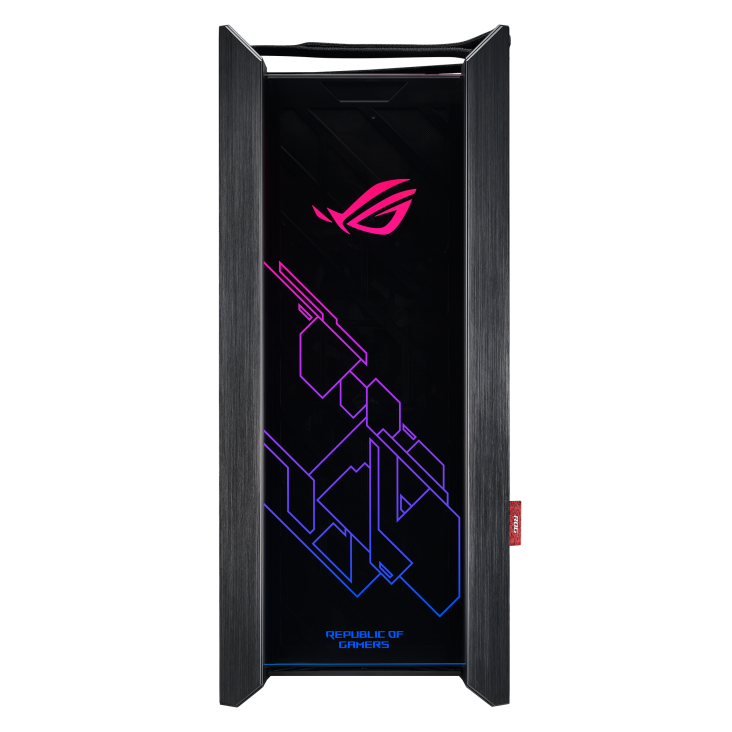

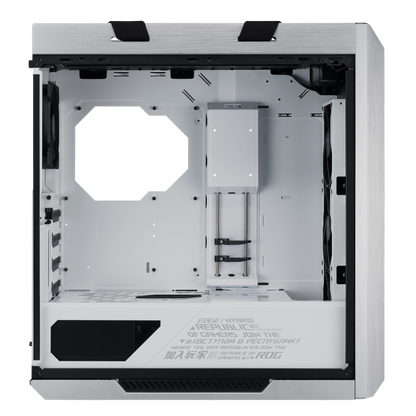

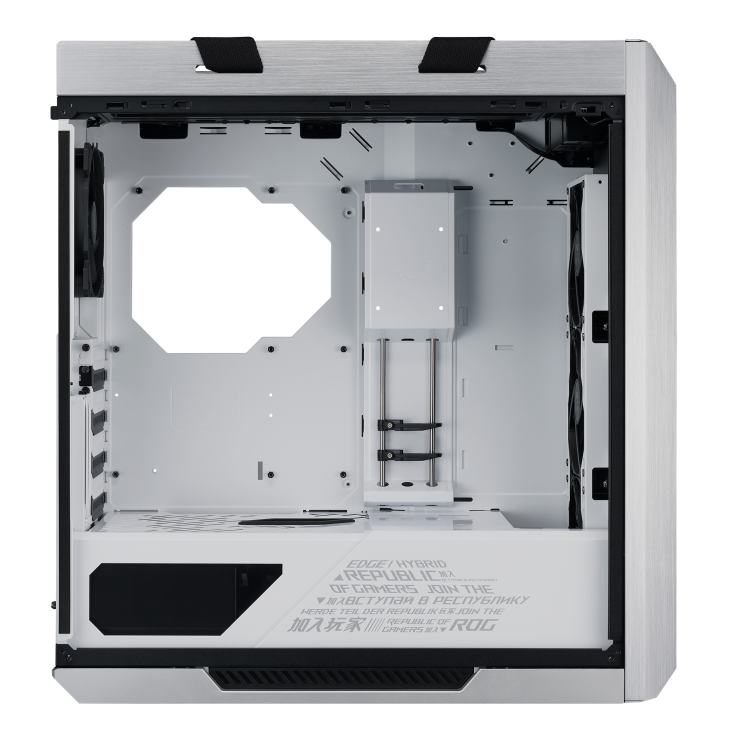

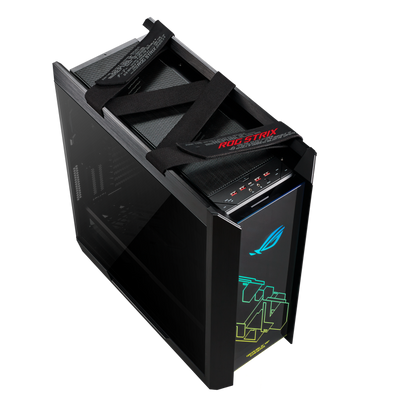

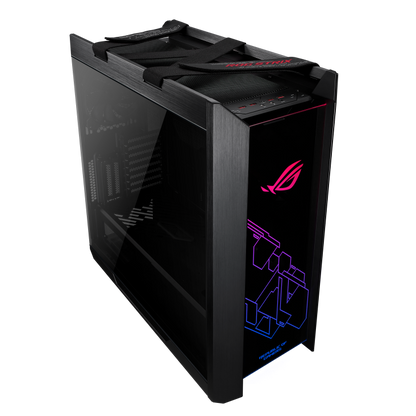

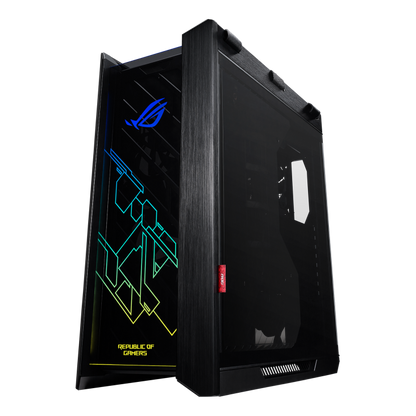

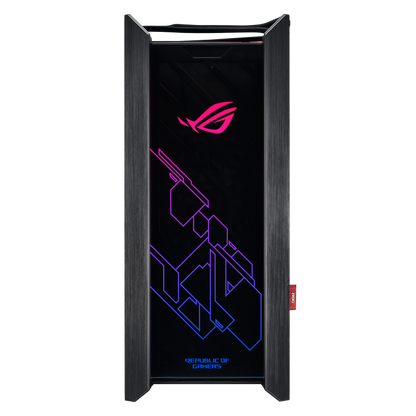

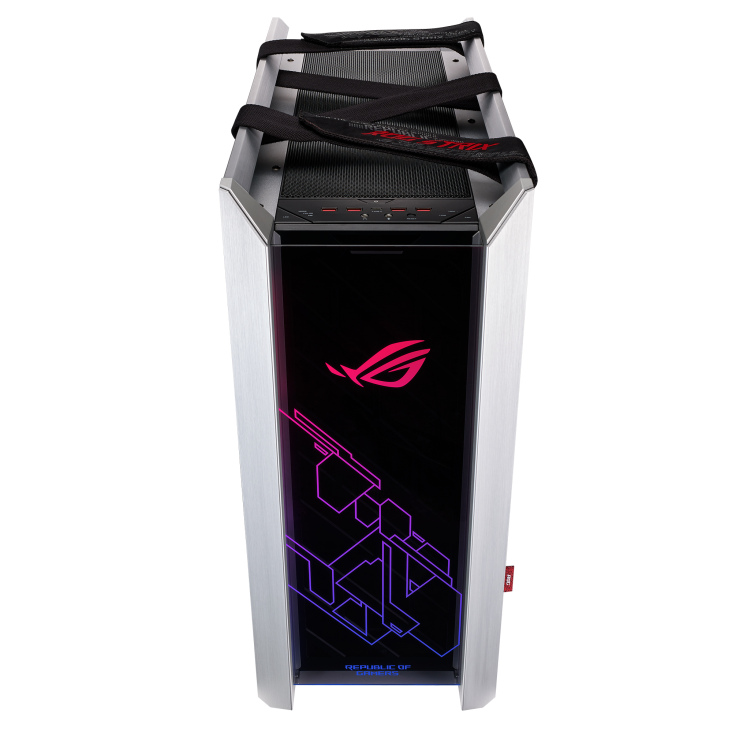

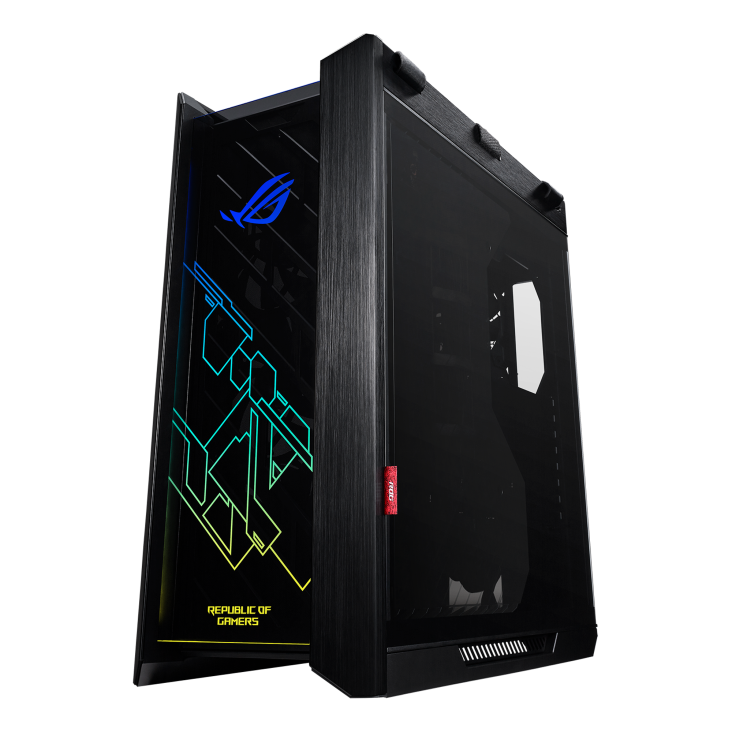

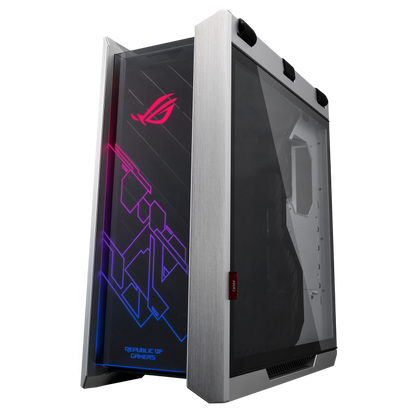

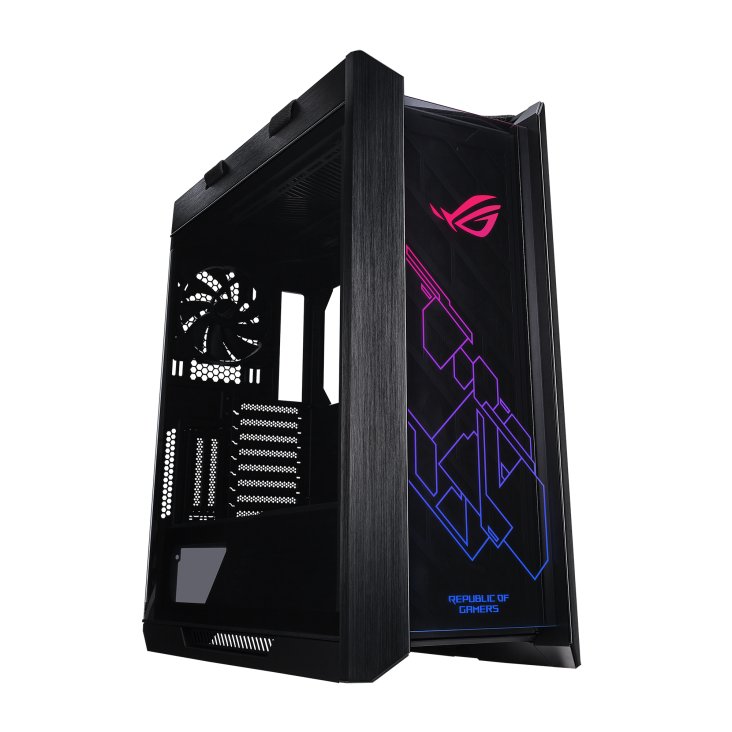

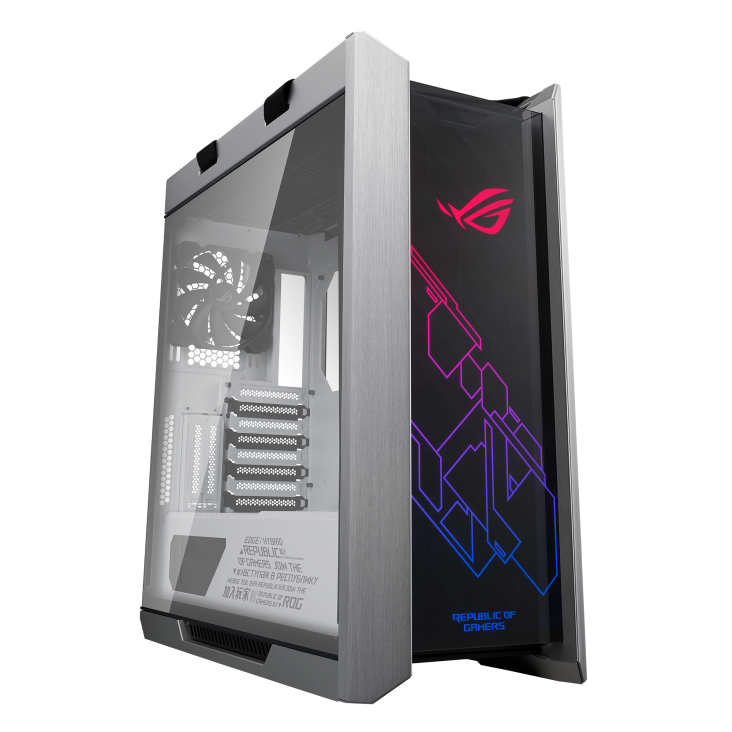

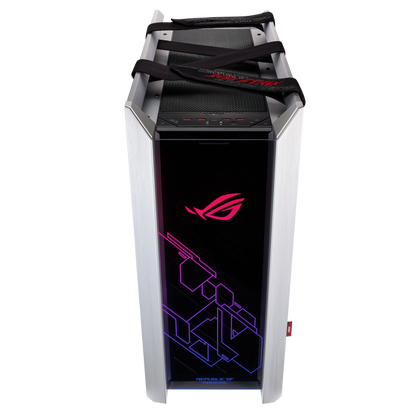

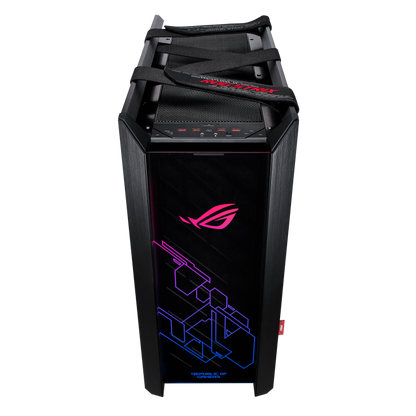

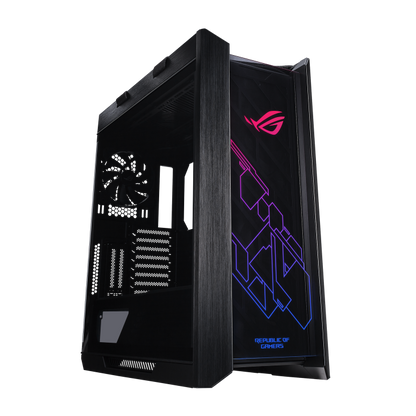

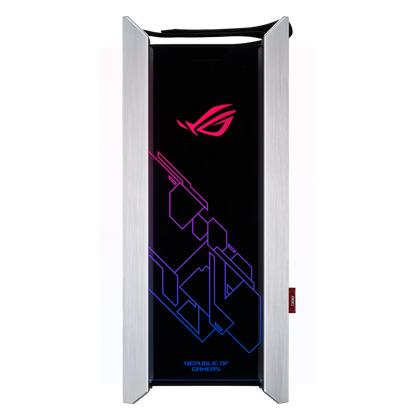

ASUS ROG HELIOS GX601 RGB MID TOWER CASE W/ TEMPERED WINDOW

Case Size: Mid Tower

Motherboard Support:

• EATX (12"x10.9")
• ATX
• Micro-ATX
• Mini-ITX

Drive Bays:

• 4 x 2.5" Bay
• 2 x 2.5"/3.5" Combo Bay

Expansion Slots:

• 8
• 2 (additional vertical)

Front I/O Port:

• 1 x Headphone
• 1 x Microphone
• 4 x USB 3.1 Gen1
• 1 x USB 3.1 Gen2 Type C
• LED Control Button
• Fan Control Button
• Reset Button

Tempered Glass:

• Front Side
• Left Side
• Right Side

Radiator Support (Front):

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm
• 420mm

Radiator Support (Top):

• 120mm
• 140mm
• 240mm
• 280mm
• 360mm

Radiator Support (Rear):

• 120mm
• 140mm

Cooling Support (Front):

• 3 x 120mm
• 3 x 140mm
• Radiator + Fan Thickness: Max. 90mm

Cooling Support (Top):

• 3 x 120mm
• 2 x 140mm
• Radiator + Fan Thickness: Max. 60mm

Cooling Support (Rear):

• 1 x 120mm
• 1 x 140mm

Pre-installed Fans (Front):

• 3 x 140mm

Pre-installed Fans (Rear):

• 1 x 140mm

Maximum CPU Cooler Height: 190mm

Maximum GPU Length: 450mm (Riser Cable above 200mm in length is required for one GPU install in vertical position)

Maximum PSU Length: 220mm

Removable Dust Filters:

• Front
• Top
• Bottom

Maximum Cable Management Space: 33mm

Dimensions: 250 x 565 x 591 mm

Weight: 18Kg

AURA Sync: ARGB
