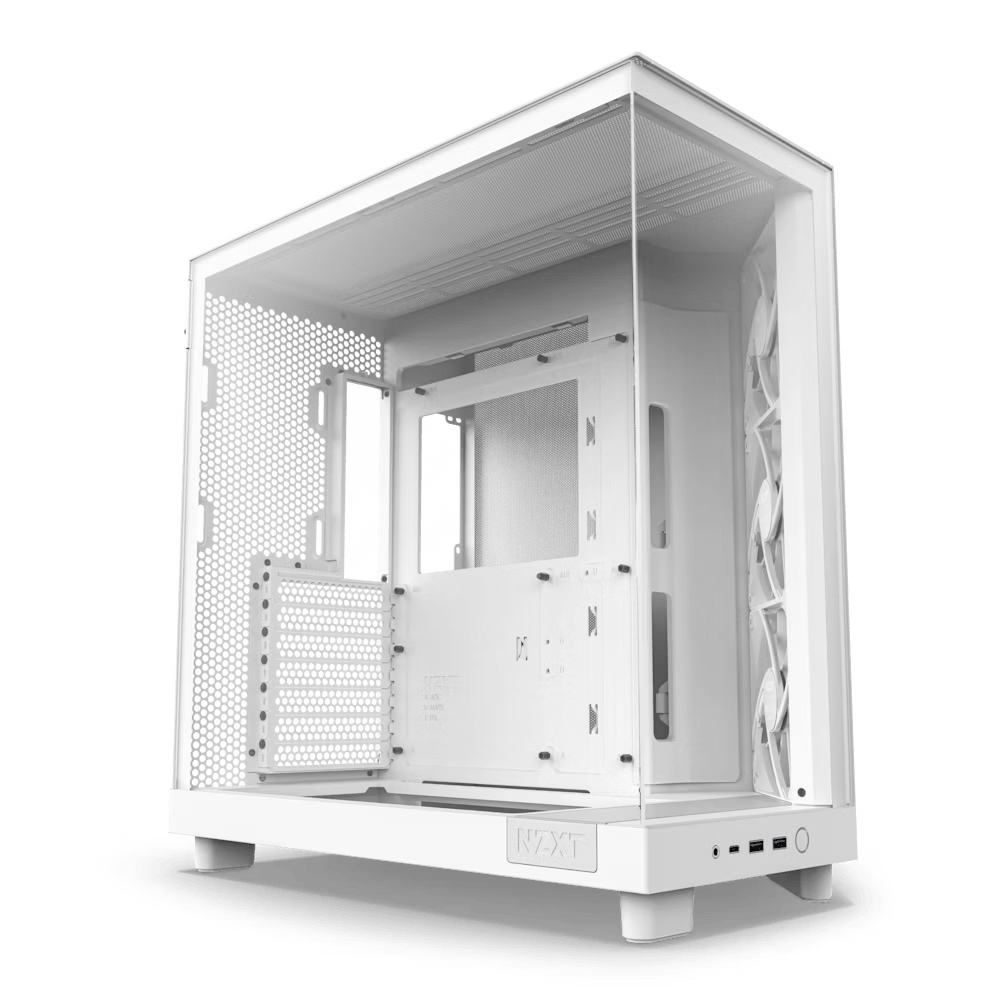

NZXT H6 FLOW MID TOWER DUAL CHAMBER CASE W/ TEMPERED GLASS

Specifications

• Motherboard Support: ATX, Micro-ATX, Mini-ITX
• Enclosure Type: Mid-Tower
• Case Material: SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)

Dimensions

• Height (with feet): 435 mm / 17.13 in
• Width: 287 mm / 11.3 in
• Depth: 415 mm / 16.34 in
• Weight: 9.4 kg

Compatibility & Clearance

• CPU Cooler Height: 163 mm / 6.42 in
• GPU Length: 365 mm / 14.37 in
• PSU Length: 200 mm / 7.87 in
• Cable Management: 91 mm / 3.58 in
• Top Radiator: 30 mm / 1.18 in

Front I/O Ports

• USB 3.2 Gen 1 Type-A: 2
• USB 3.2 Gen 2 Type-C: 1
• Headset Audio Jack: 1

Expansion Slots

• Standard: 7
• Vertical: 0

Drive Bays

• 2.5": 2
• 3.5": 1

Fan Support

• Front-Right: 3 x 120 mm (3x F120Q Case Version included)
• Top: 3 x 120 mm / 2 x 140 mm
• Bottom: 2 x 140 mm
• Rear: 1 x 120 mm
• Filters: High-Performance Mesh

Radiator Support

• Top: Up to 360 mm
• Rear: Up to 120 mm

Fan Specs (F120Q Airflow Fan - Case Version)

• Speed: 1200 ± 240 RPM
• Airflow: 62.18 CFM
• Static: 1.05 mm - H2O
• Noise: 25.1 dBA
• Fan Connector: 3-pin
