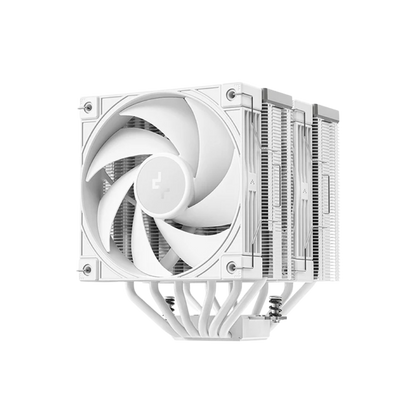

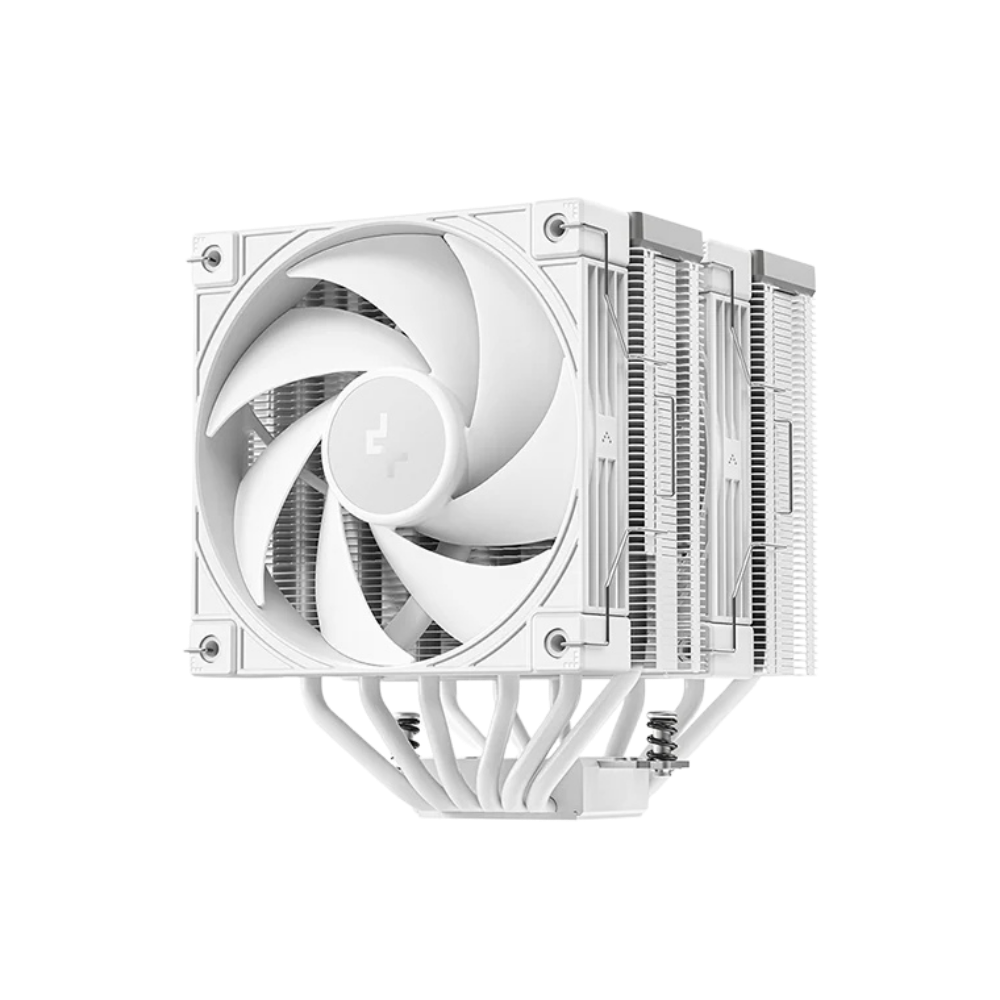

DEEPCOOL AK620 G2 WOOD GRAIN TOP COVER CPU COOLER

Product Description

The DeepCool AK620 G2 Wood Grain Top Cover CPU Cooler represents the pinnacle of the improved second generation AK lineup, combining flagship-level thermal performance with refined natural aesthetics. Featuring DeepCool's advanced Core Touch Technology 2.0 and six direct-contact copper heat pipes in a dual-tower configuration, this premium cooler delivers exceptional heat dissipation up to 260W TDP for high-performance gaming and workstation systems. The signature wood-grain top cover beautifully merges natural elegance with modern performance, while the optional black matrix-style decal offers customizable aesthetics. Equipped with two newly designed silent hydraulic bearing fans featuring 0-RPM startup/stop and Activate Clearing Tech for automatic dust management, the AK620 G2 achieves the perfect balance of powerful cooling and whisper-quiet operation. With its compact footprint compared to predecessors and comprehensive platform support, this cooler is the ultimate choice for enthusiasts seeking premium thermal management wrapped in sophisticated design.

---

Product Specifications

- Brand: DeepCool

- Model: AK620 G2 (Wood Grain Edition, R-AK620G2-BKNNMN-GJD)

- Cooler Type: Dual-Tower Air Cooler

- Product Weight: Approx. 1.39 kg

- Dimensions: 12.5 x 14.4 x 15.9 cm (L x W x H)

- Heatsink Dimensions: 12.5 x 11.5 x 15.3 cm (L x W x H)

- Total Height: 159 mm (with fans)

- Color: Black with Wood Grain Top Cover

- Socket Compatibility: Intel LGA1851/1700/1200/1151/1150/1155/1156, AMD AM5/AM4

- Heat Dissipation: Up to 260W TDP

- Heat Pipe Configuration: 6 x 6mm direct-contact copper heat pipes

- Heat Pipe Technology: Core Touch Technology 2.0 (CTT 2.0)

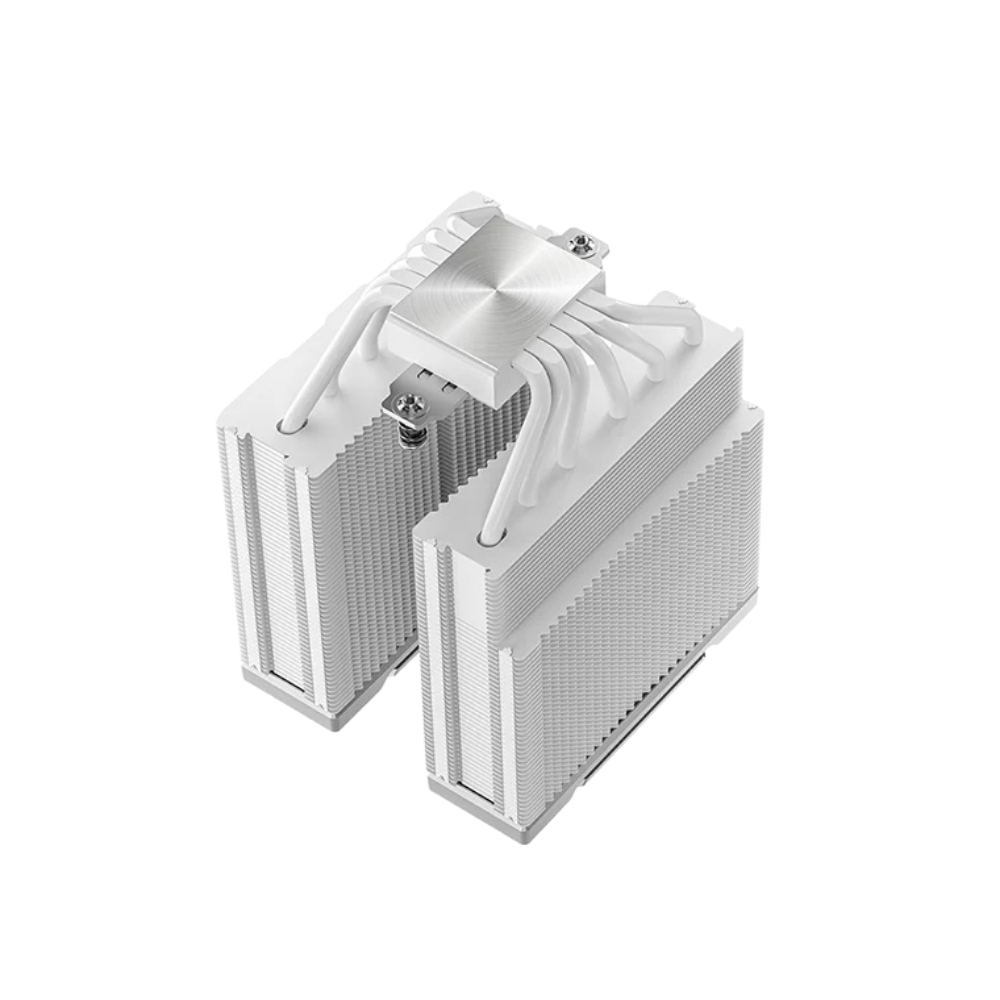

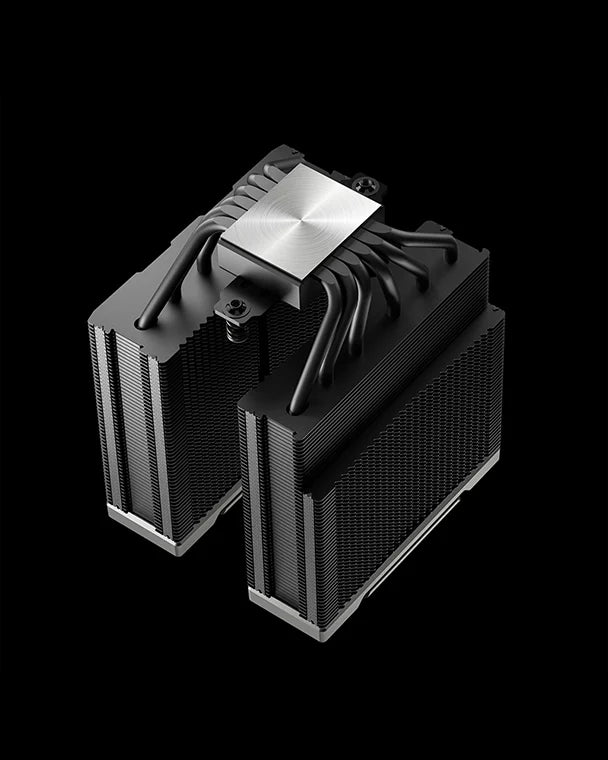

- Base: Precision-machined copper base

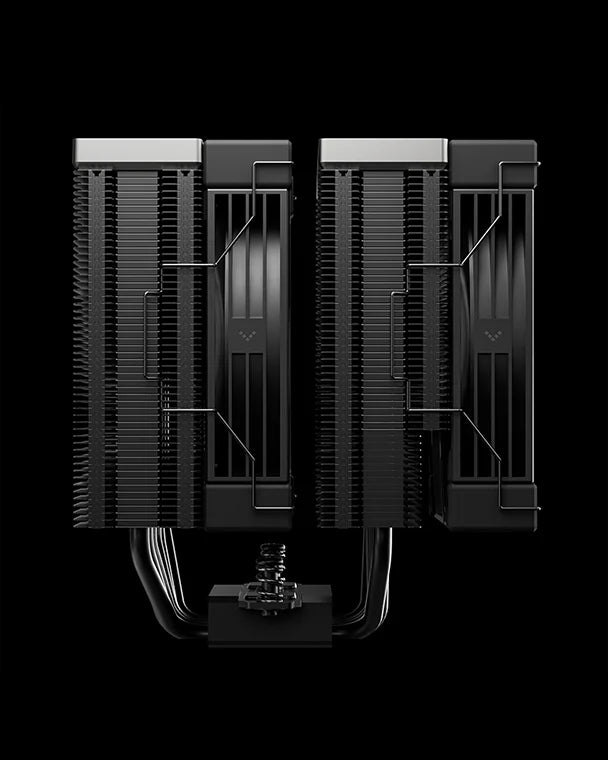

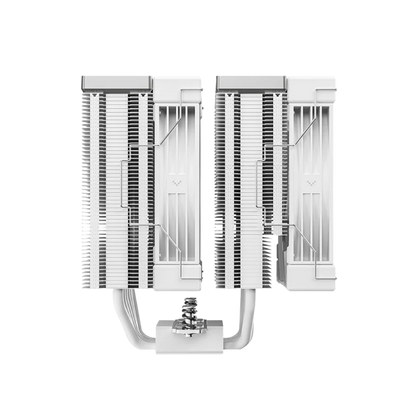

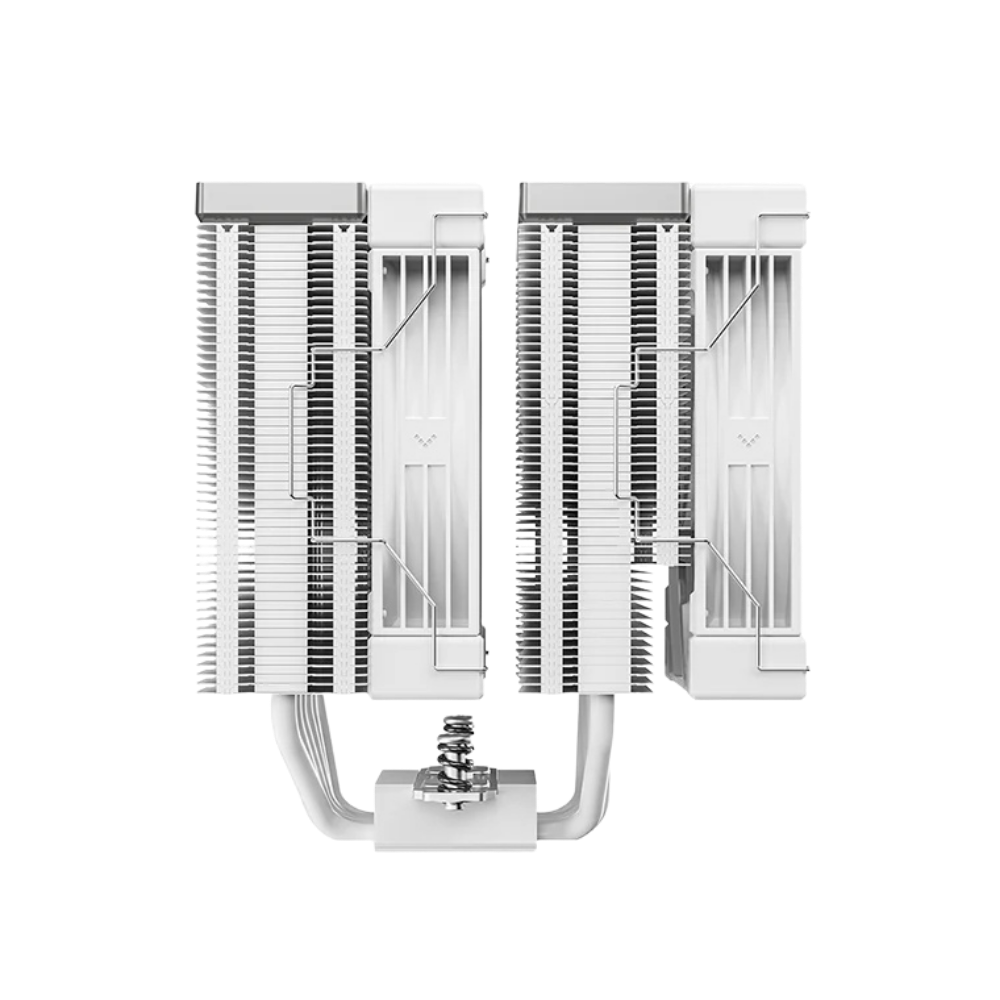

- Heatsink Design: Dense dual-tower with signature matrix fin array

- Heatsink Material: Aluminum fins with optimized spacing

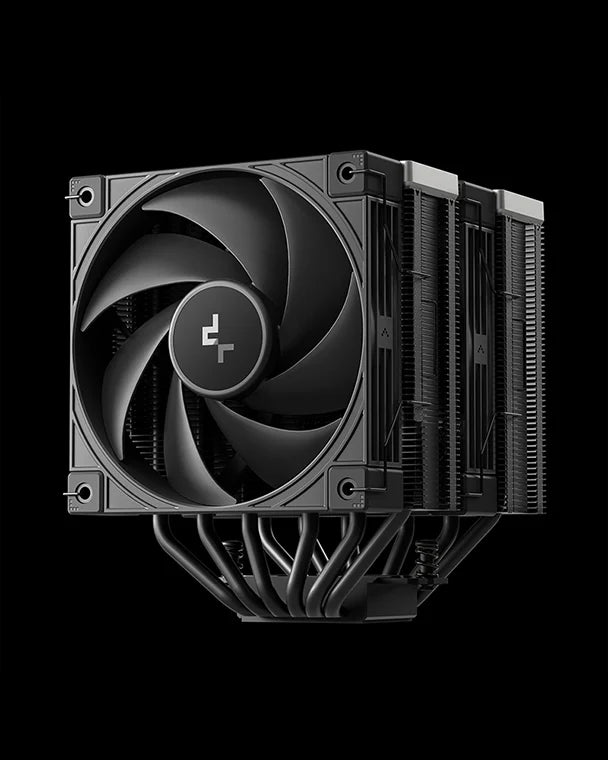

- Number of Fans: 2 x 120mm

- Fan Model: Newly designed silent hydraulic bearing fans

- Fan Dimensions: 120 x 120 x 25 mm

- Fan Speed: 2000 RPM ±10% (max)

- Fan Airflow: 57.76 CFM

- Fan Air Pressure: 2.78 mm H2O

- Maximum Noise Level: ≤28.87 dBA

- Fan Bearing Type: Hydraulic Bearing

- Fan Motor: Three-phase, six-slot, four-pole motor

- Fan Connector: 4-pin PWM

- Fan Rated Voltage: 12V DC

- Fan Rated Current: 0.19A per fan

- Fan Power Consumption: 2.28W per fan

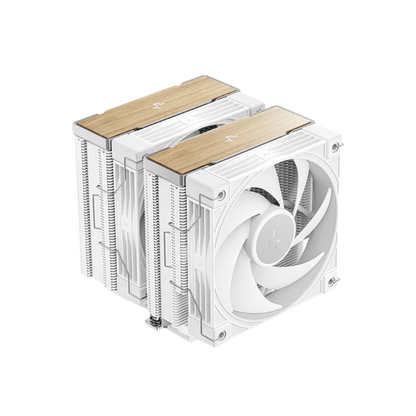

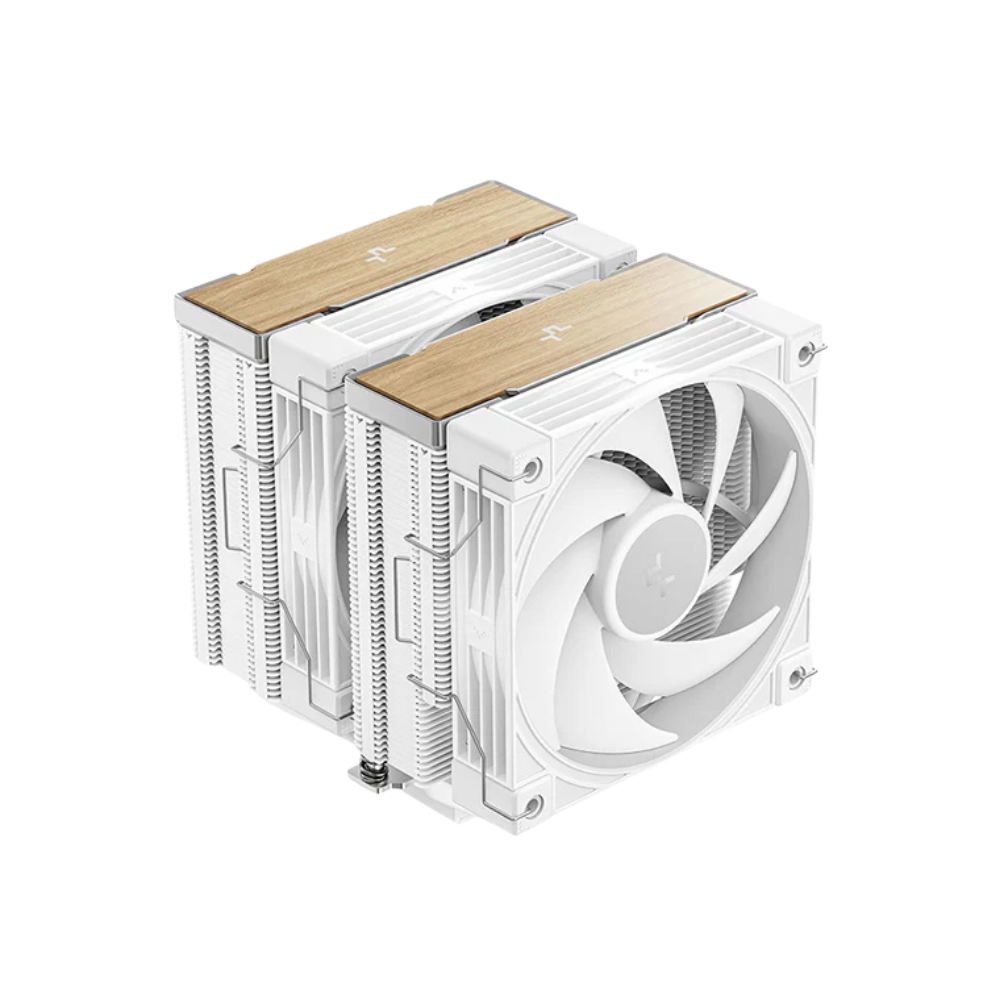

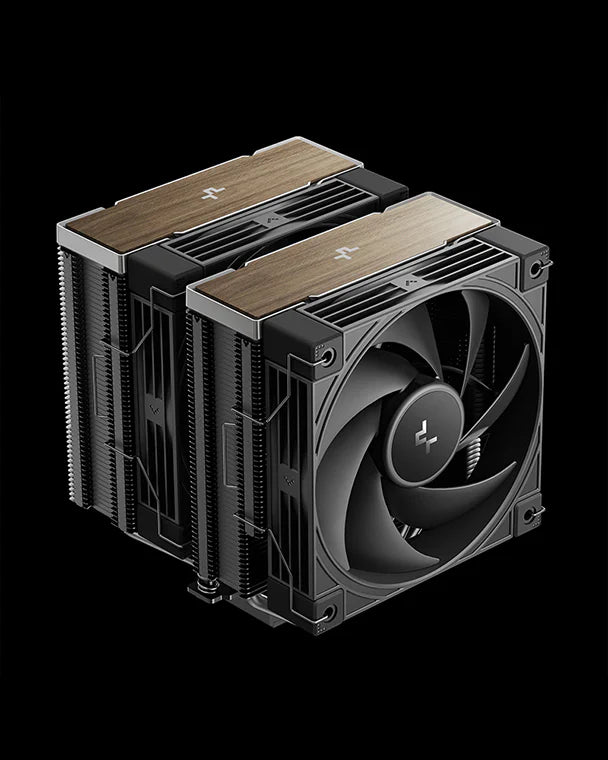

- Top Cover Design: Refined wood-grain finish with optional black matrix-style decal

- Heat Pipe Layout: Offset design for enhanced RAM clearance

- RAM Clearance: Improved clearance for tall memory modules

- Special Features: 0-RPM Startup/Stop, Activate Clearing Tech (ACT)

- ACT Function: Automatic dust clearing within 8 seconds of power-on for fan blades and heatsink

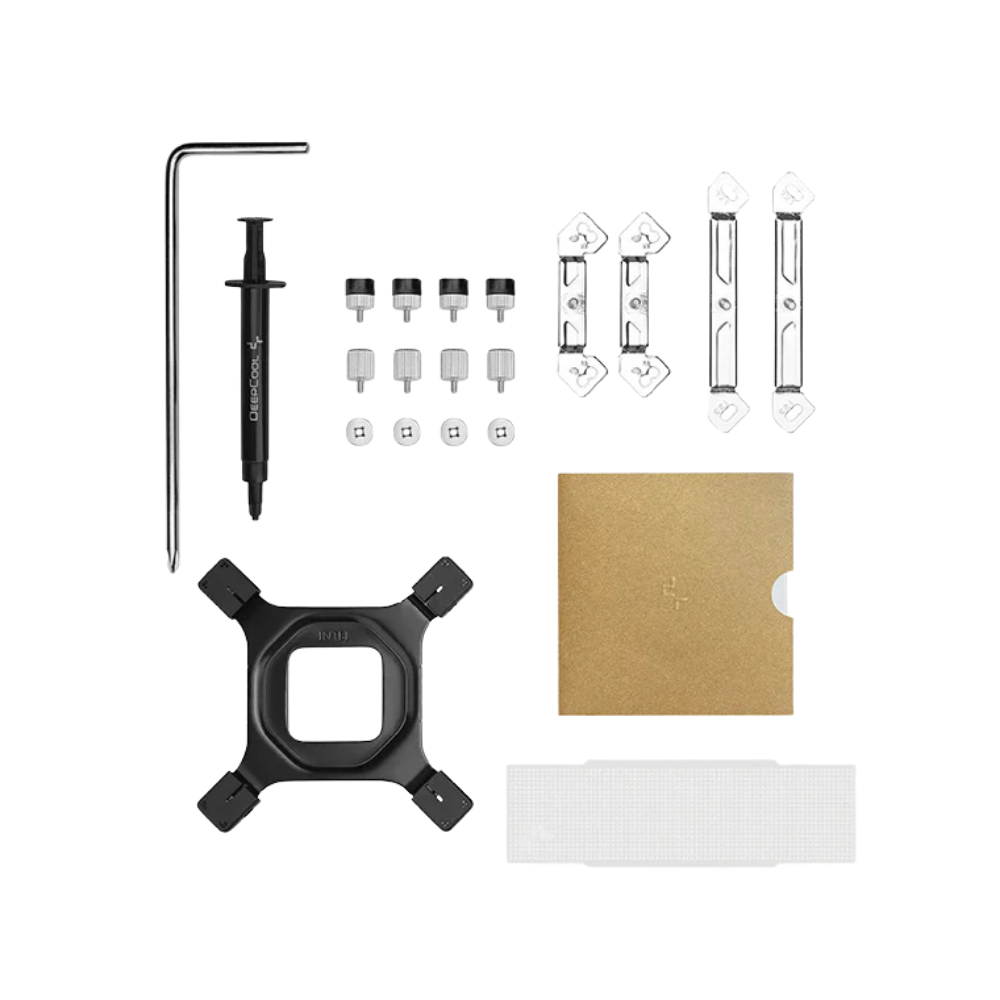

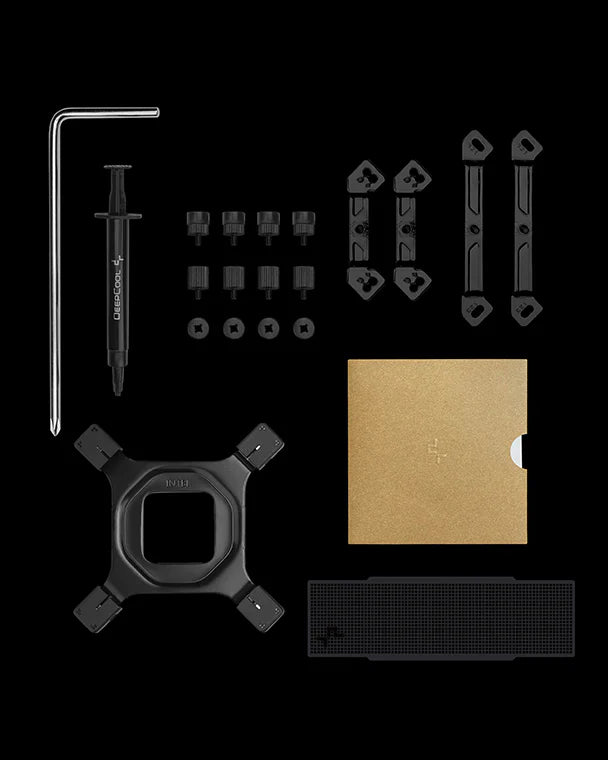

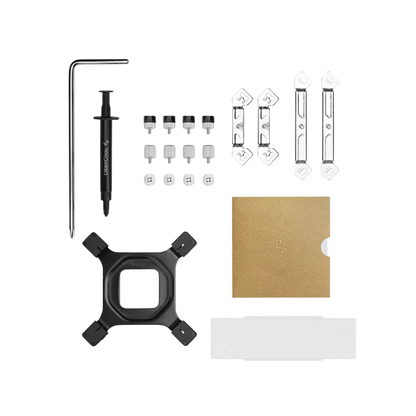

- Installation: All-metal mounting bracket with offset mounting capability

- Mounting Type: Backplate mount with additional tools included

- Thermal Compound: May be included (varies by region)

- Color: Black

- EAN: 6933412729693

- Part Number: R-AK620G2-BKNNMN-GJD

- Warranty: Standard DeepCool warranty (typically 3 years)

---

Key Features

- Elegant wood-grain top cover beautifully merges natural aesthetics with flagship cooling performance

- Optional black matrix-style decal included for customizable aesthetic options

- Advanced Core Touch Technology 2.0 delivers improved thermal efficiency compared to previous generation

- Six 6mm direct-contact copper heat pipes rapidly transfer heat from CPU for superior cooling

- Precision-machined copper base ensures optimal contact and maximum heat absorption

- Dense dual-tower design with signature matrix fin array maximizes heat dissipation surface area

- Up to 260W TDP cooling capacity handles flagship CPUs and aggressive overclocking

- Dual newly designed silent hydraulic bearing fans deliver powerful cooling with minimal noise

- Three-phase motor design ensures smooth, stable, reliable fan operation and longevity

- 0-RPM Startup/Stop technology eliminates noise during idle and extends fan lifespan

- Activate Clearing Tech (ACT) automatically clears dust within 8 seconds of power-on

- ACT prevents dust buildup on fan blades and heatsink fins for consistent cooling performance

- PWM fan control automatically adjusts speeds up to 2000 RPM based on CPU temperature

- Whisper-quiet operation with maximum noise level under 29 dBA at full load

- High combined airflow of 57.76 CFM per fan ensures effective cooling under sustained loads

- Offset heat pipe design provides enhanced clearance for tall RAM modules

- Unobstructed view of all RAM slots for aesthetically pleasing builds

- Compact 159mm height despite dual-tower design fits most standard mid-tower cases

- Improved performance with smaller footprint compared to original AK620

- Durable all-metal mounting hardware with offset mounting capability

- Multi-platform installation hardware ensures compatibility with Intel and AMD systems

- Broad socket compatibility supports latest Intel LGA1851/1700 and AMD AM5 platforms

- All-black finish with wood grain accents creates sophisticated, premium aesthetic

- Perfect for high-performance gaming, workstations, content creation, and overclocking

- Outstanding flagship-level cooling performance at exceptional value pricing
