DEEPCOOL AK700 DIGITAL NYX CPU COOLER (BLACK)

Product Description

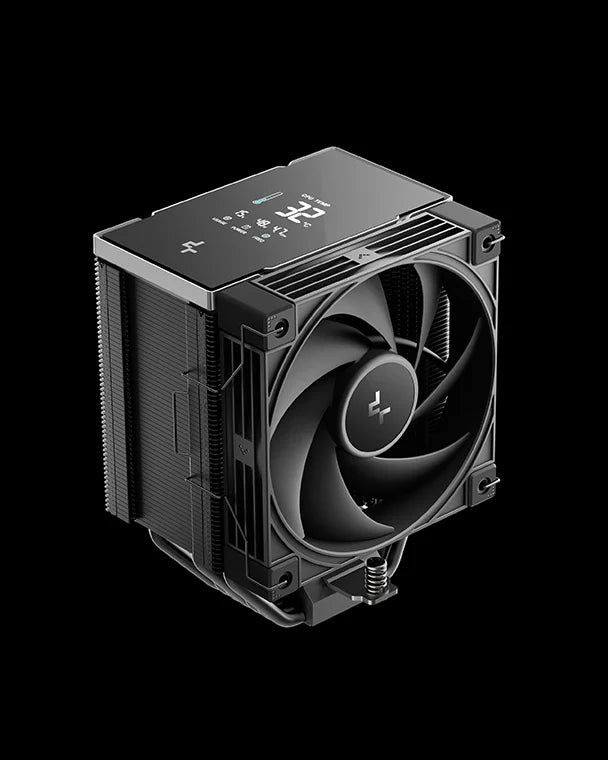

The DeepCool AK700 Digital NYX CPU Cooler in Black represents a bold evolution in single-tower air cooling, combining flagship thermal performance with intelligent AI-driven automation and real-time system monitoring. Featuring seven advanced copper heat pipes and DeepCool's latest Core Touch Technology 2.0, this premium cooler delivers exceptional heat dissipation in a refined, compact design. The standout high-end quad-segmented digital display provides instant access to critical CPU metrics including temperature, usage, wattage, and frequency—all without additional software overhead. Equipped with AI-powered dynamic cooling modes via the DeepCreative interface, the AK700 Digital NYX automatically optimizes fan behavior based on workload, achieving perfect harmony between powerful cooling and whisper-quiet operation. With its beefier heatsink, precision-machined copper base, and newly designed hydraulic bearing fan reaching 2700 RPM, this cooler is engineered for enthusiasts who demand intelligent, adaptive thermal management with elite performance.

---

Product Specifications

- Brand: DeepCool

- Model: AK700 DIGITAL NYX (Black Edition, R-AK700-BKNNMN-GJD-1)

- Cooler Type: Single-Tower Air Cooler with Digital Display

- Color: Black

- Socket Compatibility: Intel LGA1851/1700/1200/1151/1150/1155/1156, AMD AM5/AM4

- Heat Dissipation: Up to 260W TDP (estimated based on performance)

- Heat Pipe Configuration: 7 x 6mm direct-contact copper heat pipes

- Heat Pipe Technology: Core Touch Technology 2.0 (CTT 2.0)

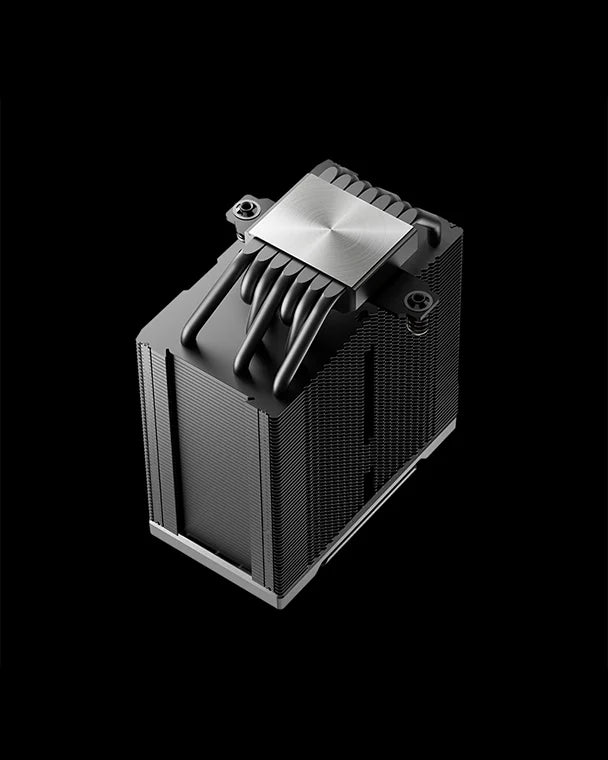

- Base: Precision-machined copper base with nickel coating

- Heatsink Design: Dense single-tower with signature matrix fin array

- Heatsink Material: Aluminum fins (54 fins total) with black coating

- Digital Display: High-end quad-segmented display panel (29 x 39 mm)

- Display Information: Real-time CPU temperature, usage, wattage, and frequency

- Display Connection: 9-pin USB 2.0 header required

- Display Software: DeepCreative application for AI control and customization

- Top Cover: Magnetically attached top cover for easy access

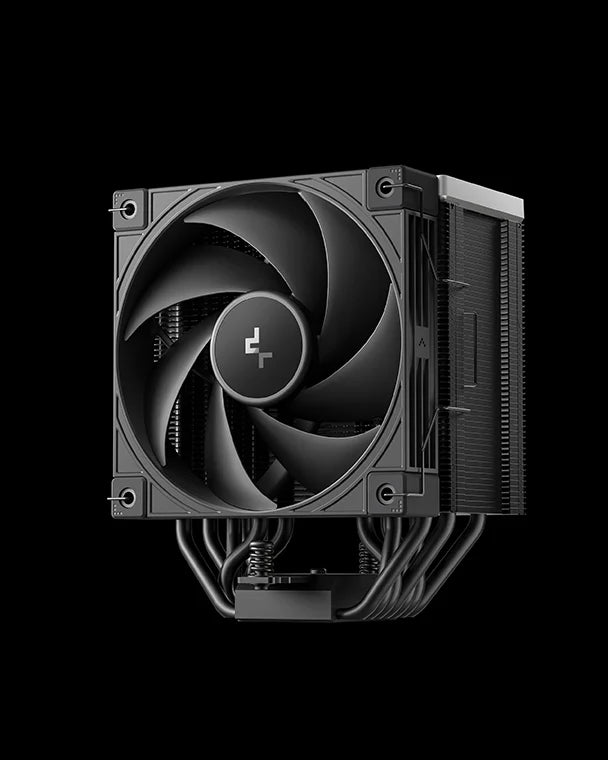

- Fan Model: Newly designed high-performance hydraulic bearing fan

- Fan Dimensions: 120 x 120 x 25 mm

- Fan Speed: 0-2700 RPM ±10%

- Fan Airflow: 77.23 CFM

- Fan Air Pressure: 5.13 mmAq

- Fan Noise Level: 21.0/28.8/36.0 dBA (idle/mid/max)

- Fan Bearing Type: Hydraulic Bearing (Hydro Bearing)

- Fan Motor: Three-phase, six-slot, four-pole motor

- Fan Connector: 4-pin PWM

- Fan Features: 0-RPM startup/stop, dynamic PWM control

- AI Cooling Modes:

- Silence AI Mode: Auto-balances quiet and performance based on load

- Performance AI Mode: Auto-balances for maximum efficiency

- Sleep Mode: Ultra-quiet operation

- Office Mode: Silent-focused for productivity

- Gaming Mode: Balanced performance and sound

- Overclocking Mode: Maximum cooling potential

- Emergency Cooling: Fans instantly shift to full speed when CPU exceeds 80°C, auto-revert when temperature drops

- Special Features: Activate Clearing Tech (ACT) for automatic dust management

- ACT Function: Self-cleaning within 8 seconds of power-on to clear dust from fan and heatsink

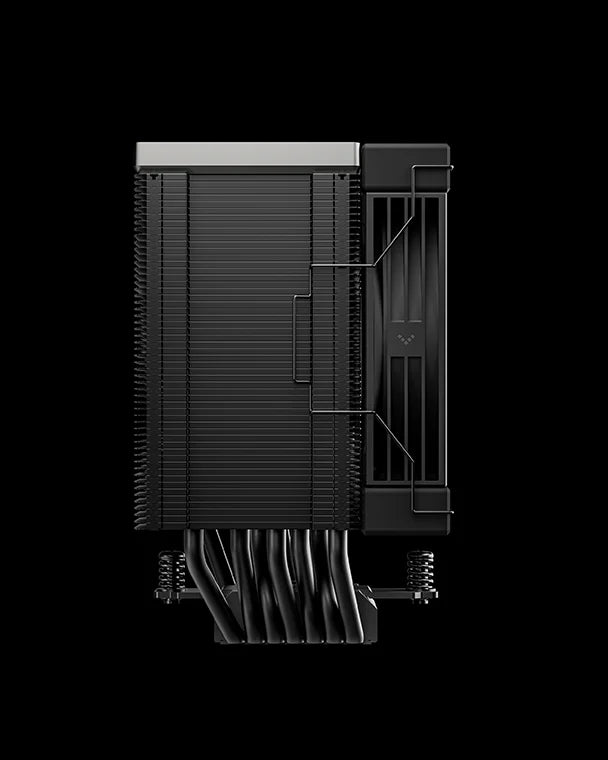

- Heat Pipe Layout: Offset design for enhanced RAM clearance

- Installation: All-metal durable mounting bracket with simple installation process

- Mounting Type: Backplate mount

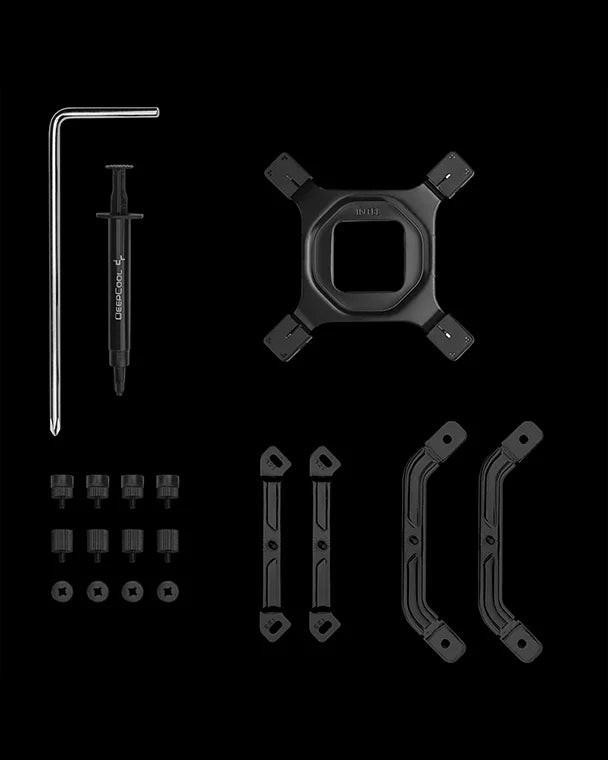

- Package Contents: Heatsink assembly, 120mm fan, universal mounting bracket, mounting hardware, thermal compound (may vary by region), user manual

- Warranty: 3 Years

---

Key Features

- High-end quad-segmented digital display shows real-time CPU temp, usage, wattage, and frequency

- Visual temperature alert system provides at-a-glance thermal monitoring

- AI-driven dynamic cooling adjustment via upgraded DeepCreative software interface

- One-click AI control replaces BIOS tinkering for perfect cooling/noise balance

- Six intelligent cooling modes adapt to any scenario from silent productivity to maximum overclocking

- Emergency cooling mode instantly shifts to full speed when CPU exceeds 80°C

- Seven 6mm direct-contact copper heat pipes deliver outstanding thermal efficiency

- Advanced Core Touch Technology 2.0 provides improved heat transfer capabilities

- Precision-machined copper base with mirror-finish nickel coating ensures optimal CPU contact

- Dense single-tower design with 54-fin matrix array maximizes heat dissipation surface area

- Up to 260W TDP cooling capacity handles flagship CPUs and aggressive overclocking

- Newly designed high-performance hydraulic bearing fan operates smoothly and quietly

- 0-RPM mode provides complete silence during idle for noise-sensitive environments

- High-performance fan reaches 2700 RPM with 77.23 CFM airflow when needed

- Whisper-quiet operation with 21-36 dBA noise range from idle to full load

- Three-phase motor design ensures stable, reliable fan operation and longevity

- Activate Clearing Tech (ACT) automatically clears dust within 8 seconds of startup

- ACT maintains optimal cooling performance and prolongs cooler lifespan

- Offset heat pipe design provides enhanced clearance for tall RAM modules

- Unobstructed view of all RAM slots for clean, aesthetically pleasing builds

- Compact 157mm height despite single-tower beefiness fits most mid-tower cases

- Smaller footprint than dual-tower coolers like AK620 G2

- Magnetically attached top cover provides easy access to mounting hardware

- Durable all-metal mounting hardware ensures proper contact and even pressure

- Simple installation compatible with latest Intel LGA1851/1700 and AMD AM5 platforms

- All-black finish creates sleek, modern aesthetic for contemporary PC builds

- Perfect for high-performance gaming, workstations, content creation, and overclocking

- Outstanding flagship-level smart cooling performance at exceptional value pricing
