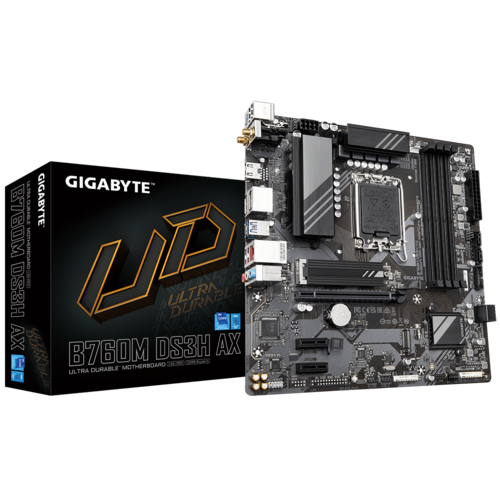

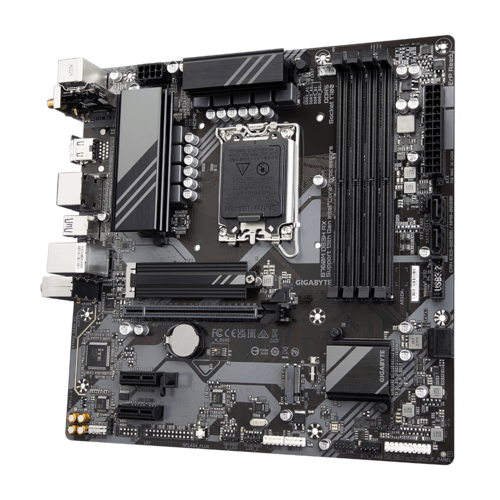

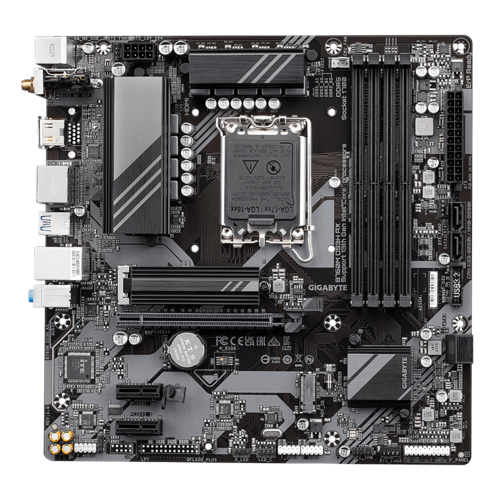

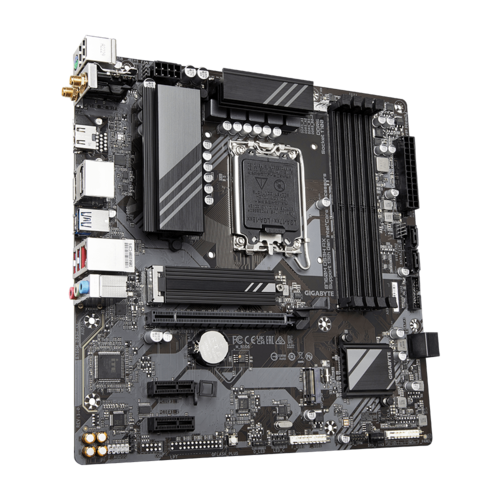

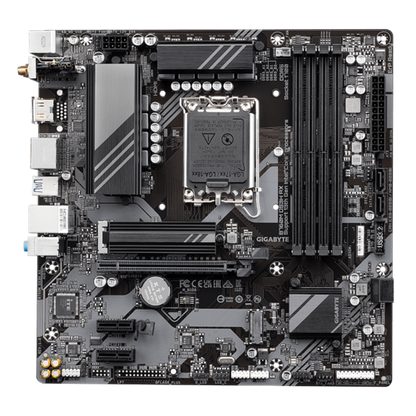

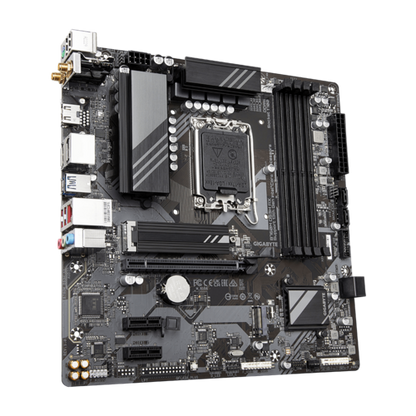

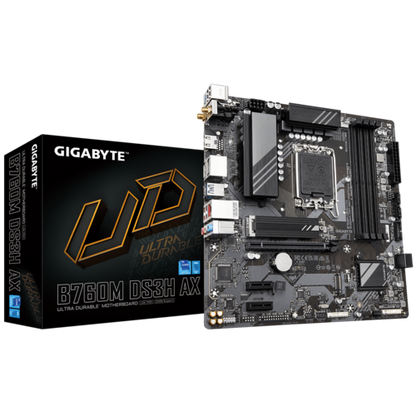

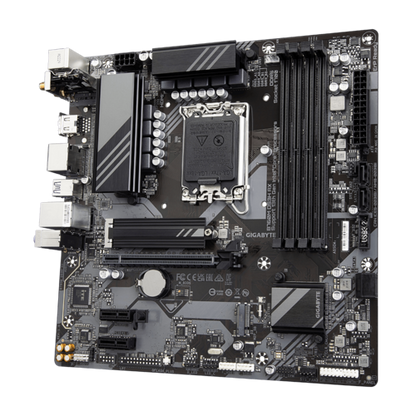

GIGABYTE B760M DS3H AX 4DDR5 2XM.2 MOTHERBOARD (HDMI, 2XDP) WIFI+BT

Specifications:

CPU Support:

• Socket: LGA 1700
• Compatible Processors:
  • 13th Generation Intel® Core™ Series
  • 12th Generation Intel® Core™ Series

Chipset:

• Intel® B760 Express Chipset

Memory:

• Type: Dual Channel DDR5
• Slots: 4 DIMM sockets
• Maximum Capacity: Up to 128 GB (32 GB per DIMM)
• Supported Frequencies:
  • Standard: 4800 MT/s
  • Overclocked (O.C.): Up to 7600 MT/s
• Features:
  • Support for Extreme Memory Profile (XMP) modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 modules (operates in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules

Expansion Slots:

• 1 x PCI Express x16 slot (PCIe 4.0, running at x16)
• 2 x PCI Express x1 slots (PCIe 3.0, running at x1)

Storage:

• M.2 Connectors:
  • 1 x M.2 slot (M2A_CPU): Supports PCIe 4.0 x4/x2 SSDs (Type 2280)
  • 1 x M.2 slot (M2P_SB): Supports PCIe 4.0 x4/x2 SSDs (Type 2280)
• SATA:
  • 4 x SATA 6Gb/s connectors
• RAID Support:
  • RAID 0, 1, 5, 10

Onboard Graphics:

• Integrated Graphics Processor (dependent on CPU)
• Outputs:
  • 1 x HDMI port
  • 2 x DisplayPorts

Audio:

• Realtek® Audio CODEC
• High Definition Audio
• Supports 2/4/5.1/7.1-channel configurations

Networking:

• LAN:
  • Realtek® 2.5GbE LAN chip
• Wireless:
  • Wi-Fi 6E 802.11ax
  • Bluetooth 5.3

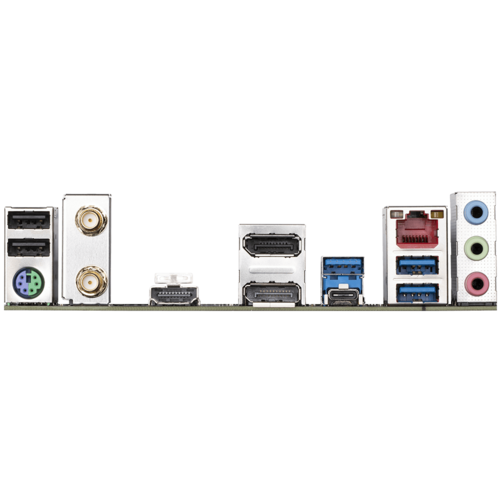

Rear Panel Connectors:

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 2 x DisplayPorts
• 1 x USB Type-C® port (USB 3.2 Gen 1)
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x RJ-45 port
• 3 x audio jacks

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 2 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header (USB 3.2 Gen 1)
• 1 x USB 3.2 Gen 1 header
• 3 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header
• 1 x Q-Flash Plus button
• 1 x serial port header
• 1 x Clear CMOS jumper

Form Factor:

• Micro ATX; 24.4cm x 24.4cm
