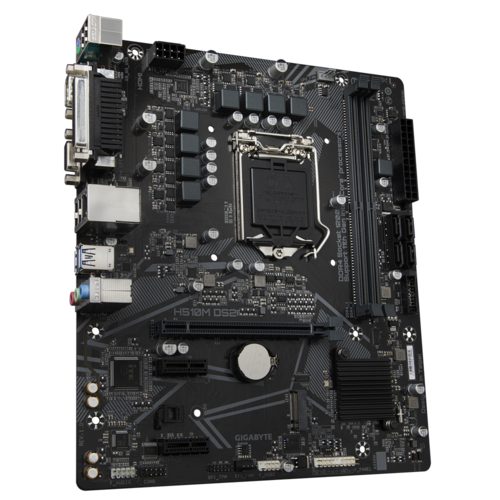

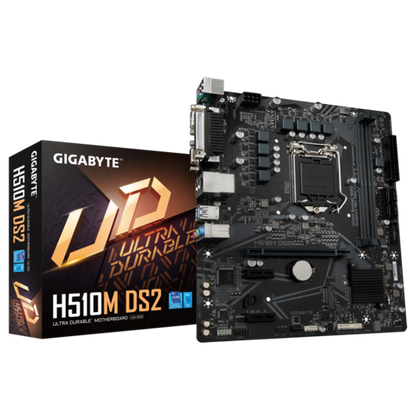

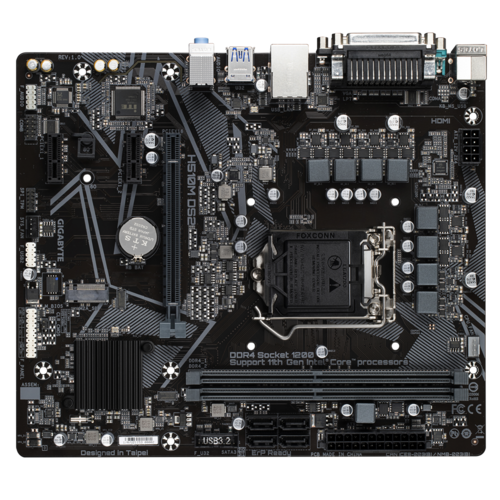

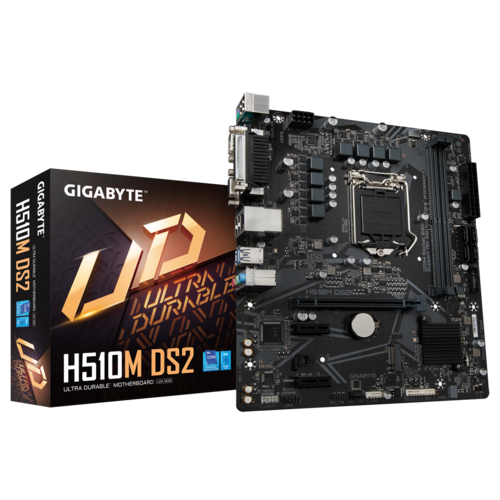

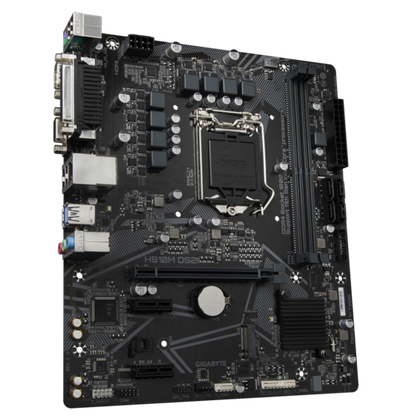

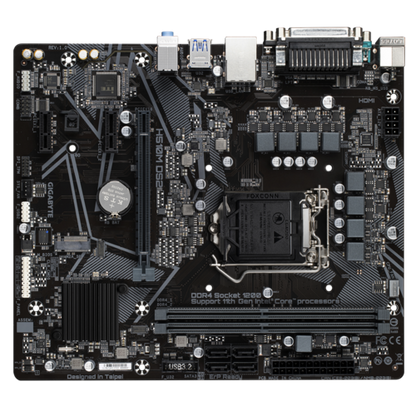

GIGABYTE H510M DS2 2DDR4 M.2 MOTHERBOARD (DB15) W/ SERIAL

Specifications

CPU Compatibility

• Socket: LGA1200
• Supported Processors:
  • 11th Gen Intel®: Core™ i9 / i7 / i5
  • 10th Gen Intel®: Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron®
• L3 Cache: Varies by CPU
  (Refer to GIGABYTE's website for the latest CPU support list.)

Chipset

• Intel® H510 Express Chipset

Memory

• 11th Gen Core™ i9/i7/i5: DDR4 3200/3000/2933/2666/2400/2133 MHz
• 10th Gen Core™ i9/i7: DDR4 2933/2666/2400/2133 MHz
• 10th Gen Core™ i5/i3/Pentium®/Celeron®: DDR4 2666/2400/2133 MHz
• DIMM Slots: 2 x DDR4 DIMM (up to 64 GB, 32 GB per slot)
• Memory Features:
  • Dual-channel memory architecture
  • Supports ECC & non-ECC Un-buffered DIMM (ECC operates in non-ECC mode)
  • Supports Extreme Memory Profile (XMP)

Onboard Graphics (Varies by CPU)

• Intel® HD Graphics Support
• D-Sub (VGA) Port: 1920x1200 @60Hz

Audio

• Codec: Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel support (7.1-channel requires software configuration)

LAN

• Realtek® GbE LAN (1 Gbps / 100 Mbps)

Expansion Slots

• 1 x PCIe x16 (PCIe 4.0, supports 11th Gen CPUs only)
• 2 x PCIe x1 (PCIe 3.0)

Storage

• M.2 Slot (PCIe 3.0 x4/x2 & SATA, 2260/2280 SSDs)
  • Shares bandwidth with PCIEX1_1 slot (if occupied, M.2 runs at PCIe 3.0 x2)
• 4 x SATA 6Gb/s Ports

USB Ports

• Rear I/O:
  • 2 x USB 3.2 Gen 1
  • 4 x USB 2.0/1.1
• Internal:
  • 2 x USB 3.2 Gen 1 (via header)
  • 2 x USB 2.0/1.1 (via header)

Internal I/O Connectors

• Power:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
• Cooling & System:
  • 1 x CPU fan header
  • 1 x System fan header (Supports AIO pumps up to 2A/12V @24W)
• Storage & USB:
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
• Other Connectors:
  • 1 x Front panel header
  • 1 x Front panel audio header
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Serial port header
  • 1 x Clear CMOS jumper

Rear I/O Ports

• 1 x PS/2 keyboard/mouse port
• 1 x Serial port
• 1 x Parallel port
• 1 x D-Sub (VGA) Port
• 2 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1
• 1 x RJ-45 LAN port
• 3 x Audio jacks

BIOS

• 256 Mbit Flash
• AMI UEFI BIOS
• Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• GIGABYTE APP Center:
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • Smart Backup
  • System Information Viewer
• Support for Q-Flash & Xpress Install

Bundled Software

• Norton® Internet Security (OEM version)
• Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System Compatibility

• Windows 10 64-bit

Form Factor

• Micro ATX (24.4cm x 21.0cm)
