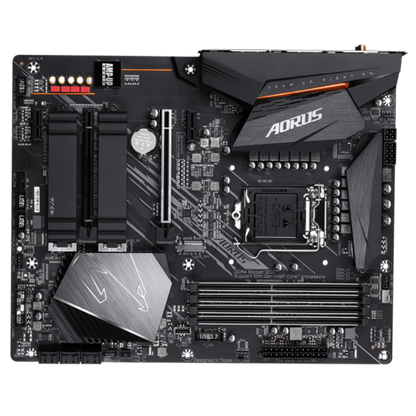

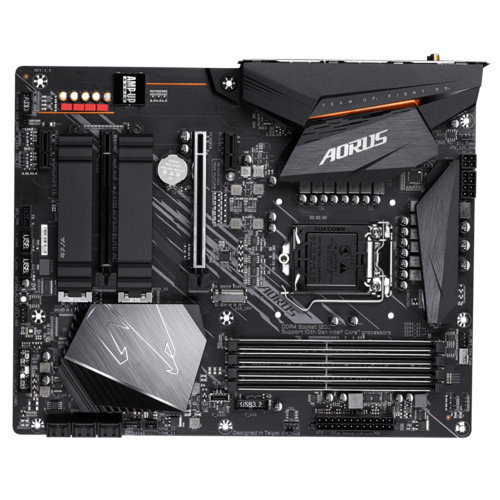

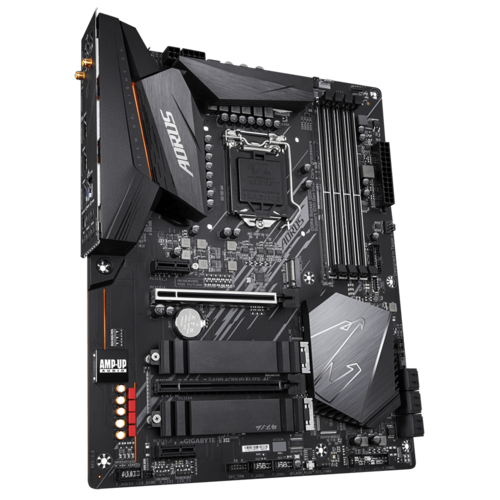

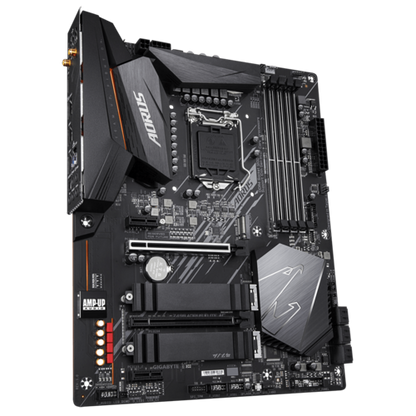

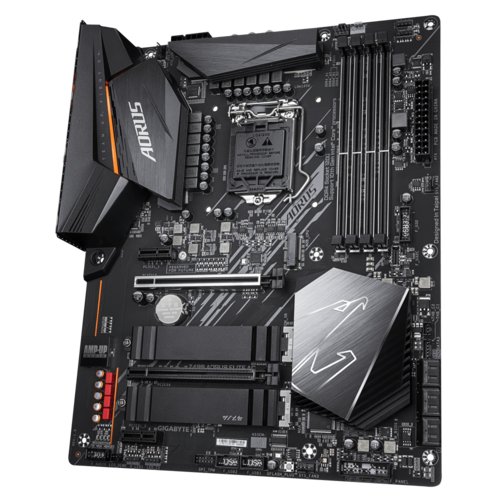

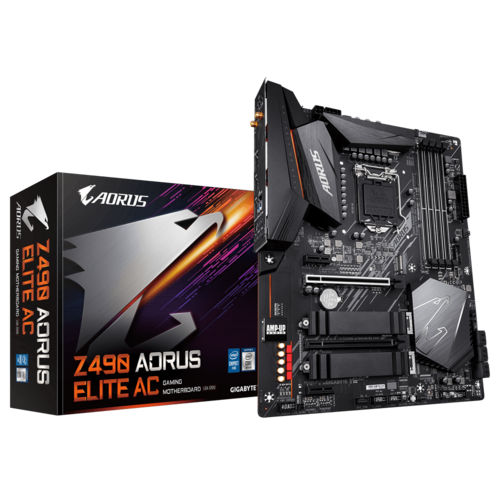

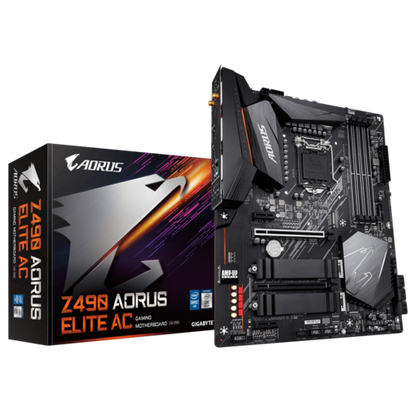

GIGABYTE Z490 AORUS ELITE AC 4DDR4 2XM.2 MOTHERBOARD (HDMI) WIFI+BT

GIGABYTE Z490 MOTHERBOARD SPECIFICATIONS

CPU Support:

• Socket: LGA 1200
• Compatible Processors:
  • 10th Generation Intel® Core™ i9/i7/i5/i3
  • Intel® Pentium®
  • Intel® Celeron®
• L3 Cache: Varies with CPU

Chipset:

• Intel® Z490 Express Chipset

Memory:

• Type: Dual Channel DDR4
• Slots: 4 DIMM sockets
• Maximum Capacity: Up to 128 GB (32 GB per DIMM)
• Supported Frequencies:
  • Intel® Core™ i9/i7: Up to DDR4 5000(O.C.)
  • Intel® Core™ i5/i3/Pentium®/Celeron®: Up to DDR4 2666 MHz
• Features:
  • Support for ECC Un-buffered DIMM (operates in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM
  • Support for Extreme Memory Profile (XMP)

Onboard Graphics:

• Integrated Graphics Processor (Intel® HD Graphics)
• Outputs:
  • 1 x HDMI port (4096x2160@30Hz, HDMI 1.4, HDCP 2.3)
• Shared Memory: Up to 512 MB

Audio:

• Codec: Realtek® ALC1200
• High Definition Audio
• Supports: 2/4/5.1/7.1-channel configurations
• Additional Features: Support for S/PDIF Out

Networking:

• LAN: Realtek® 2.5GbE LAN
• Wireless: Intel® Wi-Fi AC 9462
  • Dual-Band 2.4/5 GHz
  • Bluetooth 5

Expansion Slots:

• PCI Express Slots:
  • 1 x PCIe x16 (running at x16)
  • 1 x PCIe x16 (running at x4)
  • 2 x PCIe x1
• Standard: PCIe 3.0, supports ASPM L1.2 power management

Multi-GPU Support:

• AMD Quad-GPU CrossFire™
• 2-Way AMD CrossFire™

Storage:

• M.2 Connectors:
  • 2 x M.2 slots (PCIe x4/x2 & SATA support, Type 2242/2260/2280/22110)
• SATA Ports:
  • 6 x SATA 6Gb/s connectors
• RAID Support:
  • RAID 0, 1, 5, 10
• Intel® Optane™ Memory Ready

USB Connectivity:

• Chipset:
  • 2 x USB 3.2 Gen 2 Type-A (rear, red)
  • 1 x USB Type-C™ (USB 3.2 Gen 1, internal)
  • 6 x USB 3.2 Gen 1 (4 rear, 2 internal)
• Chipset + USB 2.0 Hub:
  • 8 x USB 2.0/1.1 (4 rear, 4 internal)

Internal I/O Connectors:

• Power Connectors:
  • 1 x 24-pin ATX main power
  • 1 x 8-pin ATX 12V
  • 1 x 4-pin ATX 12V
• Cooling & RGB Headers:
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
• Storage & USB Headers:
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ (USB 3.2 Gen 1)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
• Additional Headers:
  • 1 x Trusted Platform Module header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button

Back Panel Connectors:

• 2 x USB 3.2 Gen 2 Type-A (red)
• 4 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1
• 2 x SMA antenna connectors (Wi-Fi)
• 1 x HDMI port
• 1 x RJ-45 LAN port
• 1 x optical S/PDIF Out
• 5 x audio jacks

I/O Controller:

• iTE® I/O Controller Chip

Hardware Monitoring:

• Voltage, temperature, and fan speed detection
• Water cooling flow rate detection
• Overheating and fan failure warnings
• Fan speed control (depends on fan type)

BIOS:

• 1 x 256 Mbit Flash
• AMI UEFI BIOS
• Supports ACPI 5.0, SM BIOS 2.7

Unique Features:

• GIGABYTE APP Center (features vary by model)
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
• Support for Q-Flash Plus, Q-Flash, Xpress Install

Bundled Software:

• Norton® Internet Security (OEM)
• Realtek® 8125 Gaming LAN Bandwidth Control Utility

Operating System Support:

• Windows 10 64-bit

Form Factor:

• ATX (30.5cm x 24.4cm)

This motherboard is designed for high-performance gaming and multitasking, featuring strong connectivity options, overclocking support, and multi-GPU capability.
