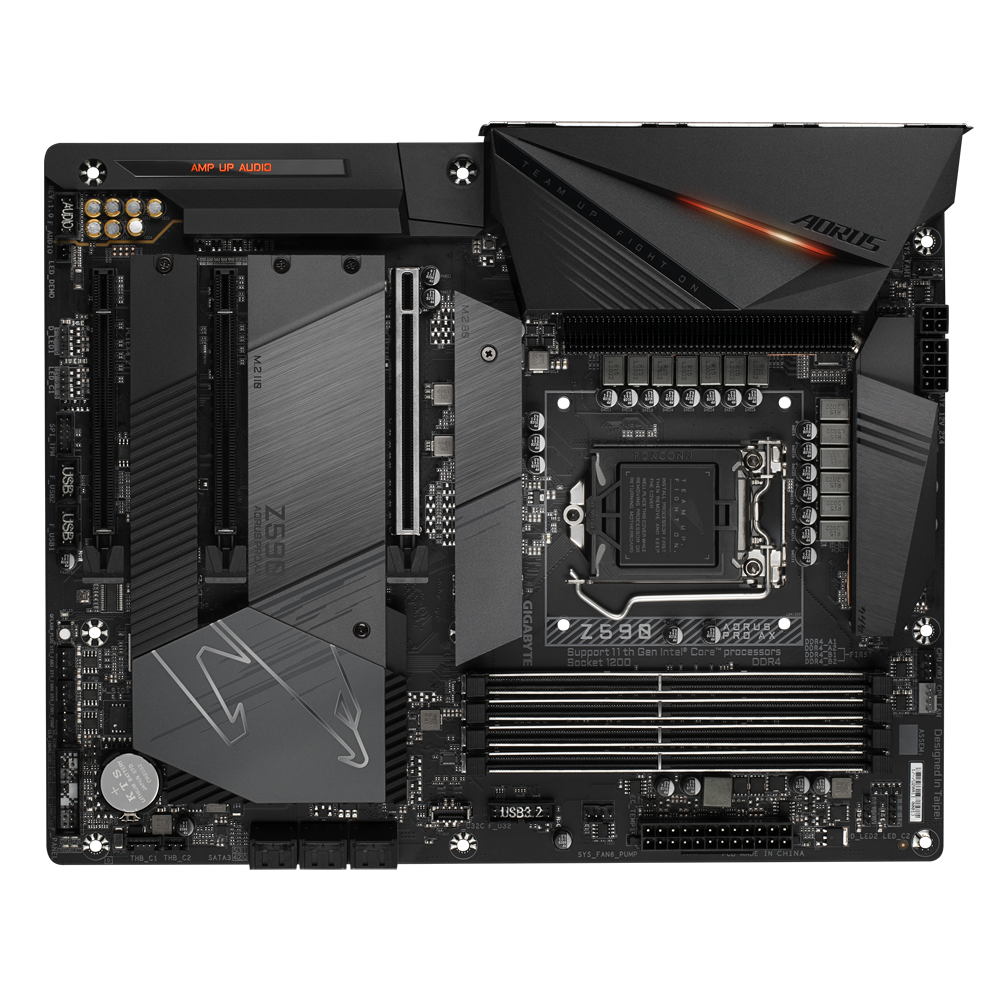

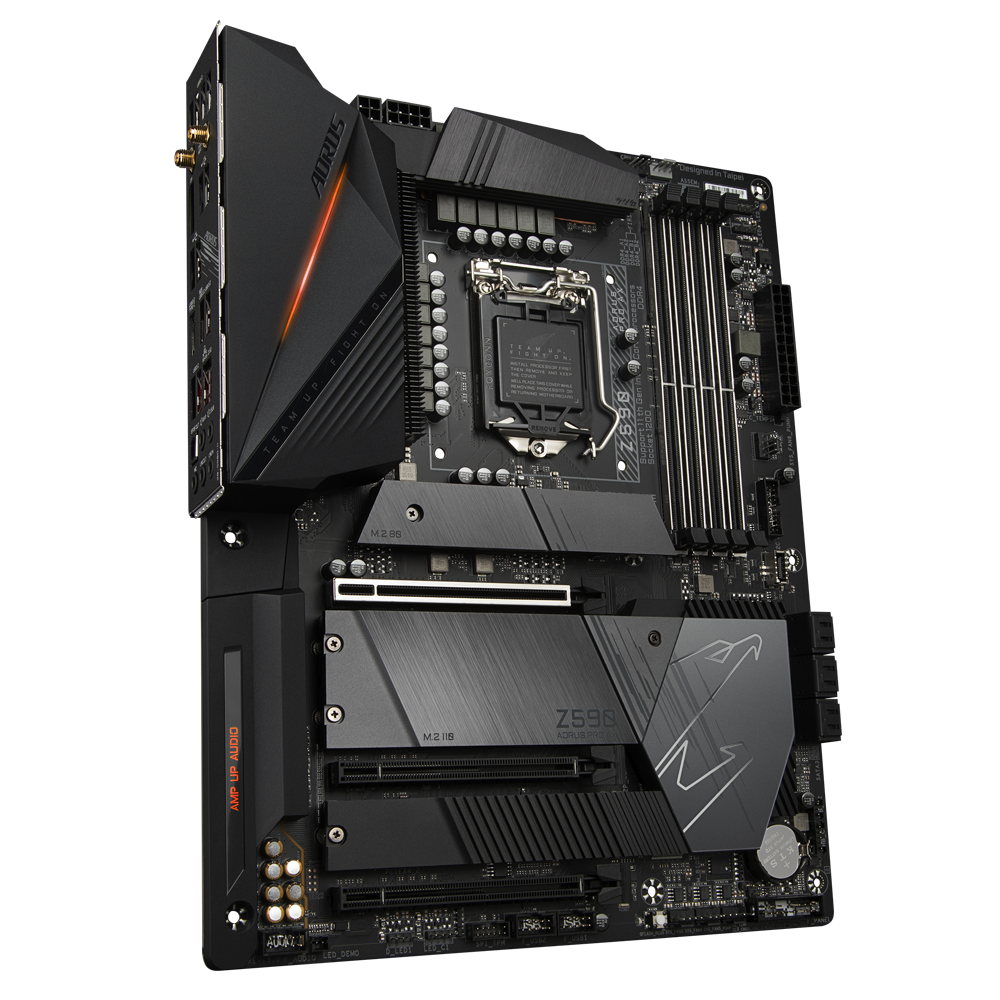

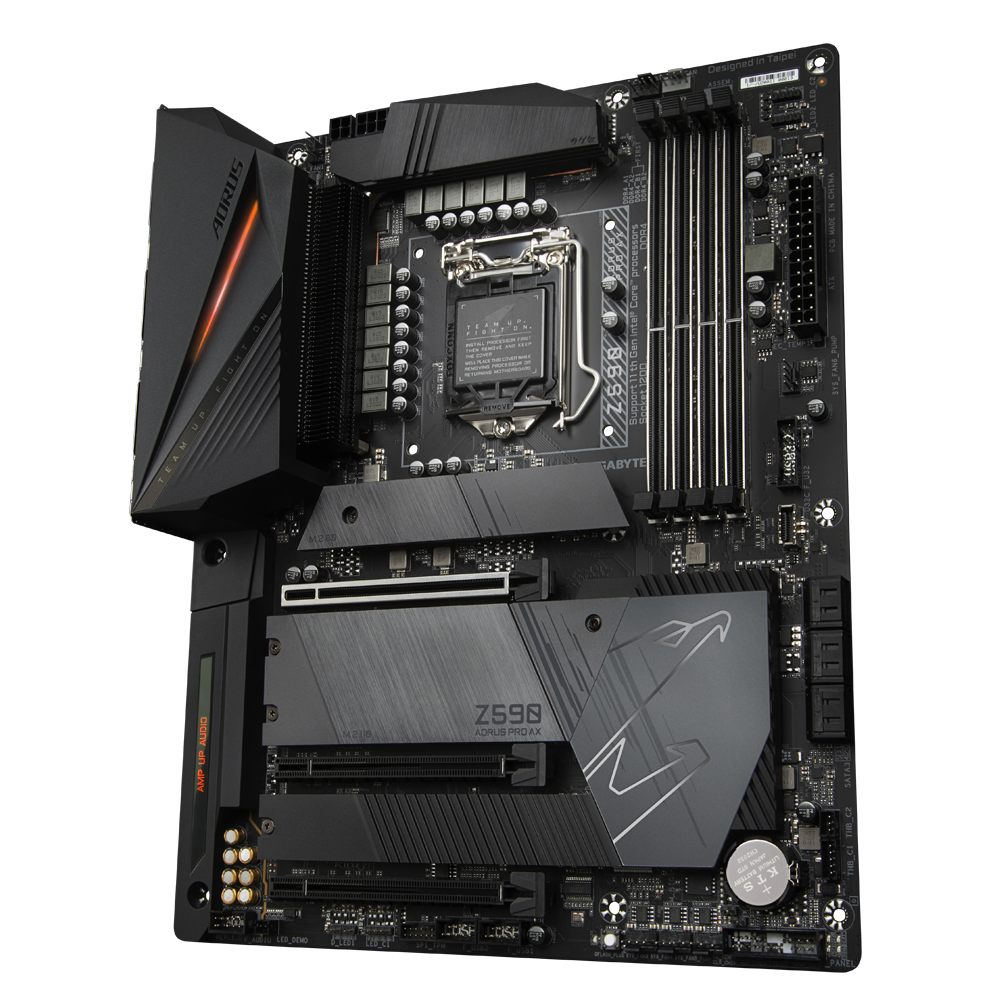

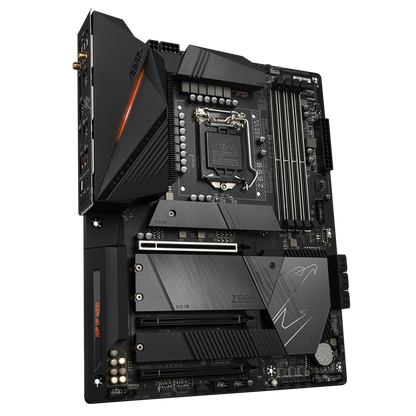

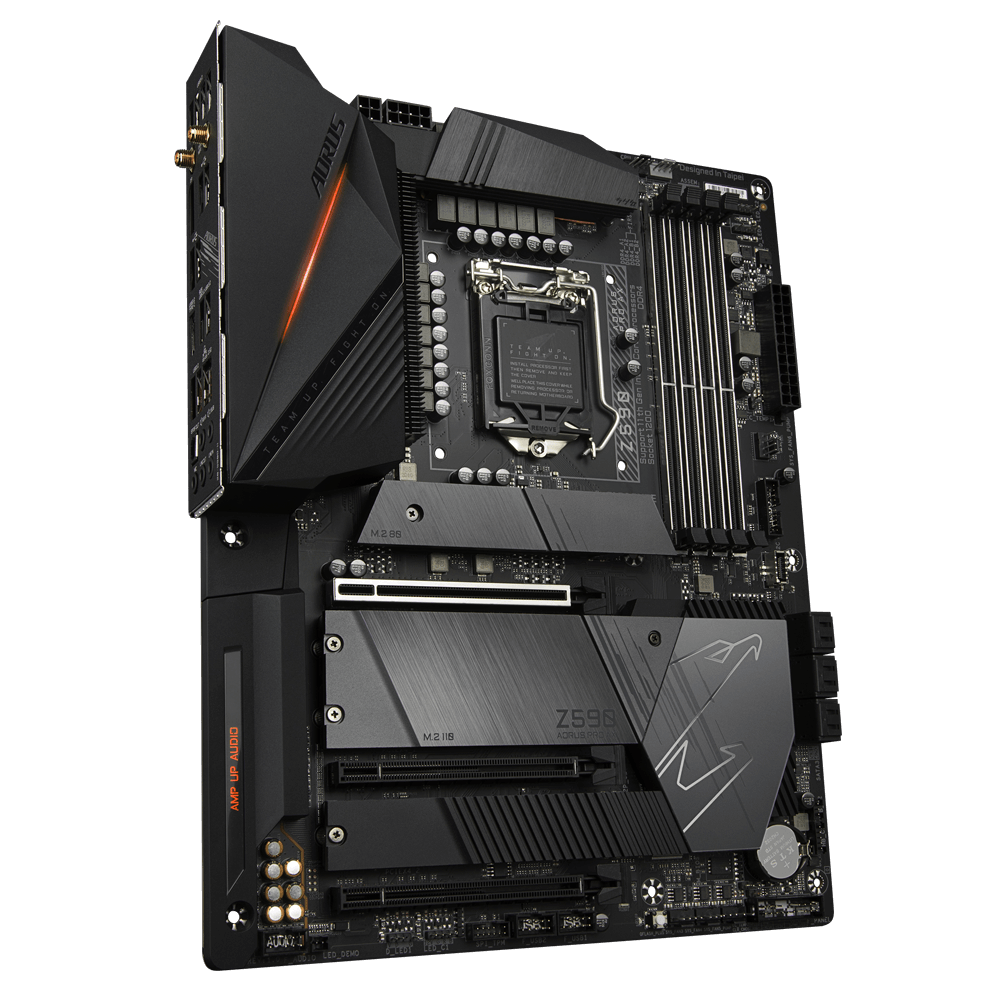

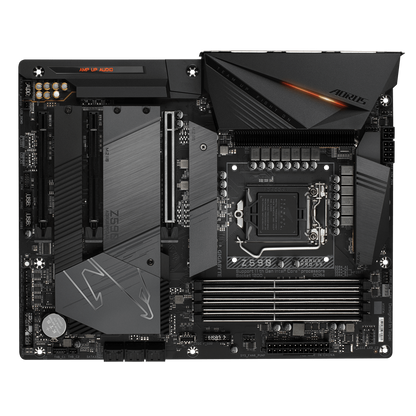

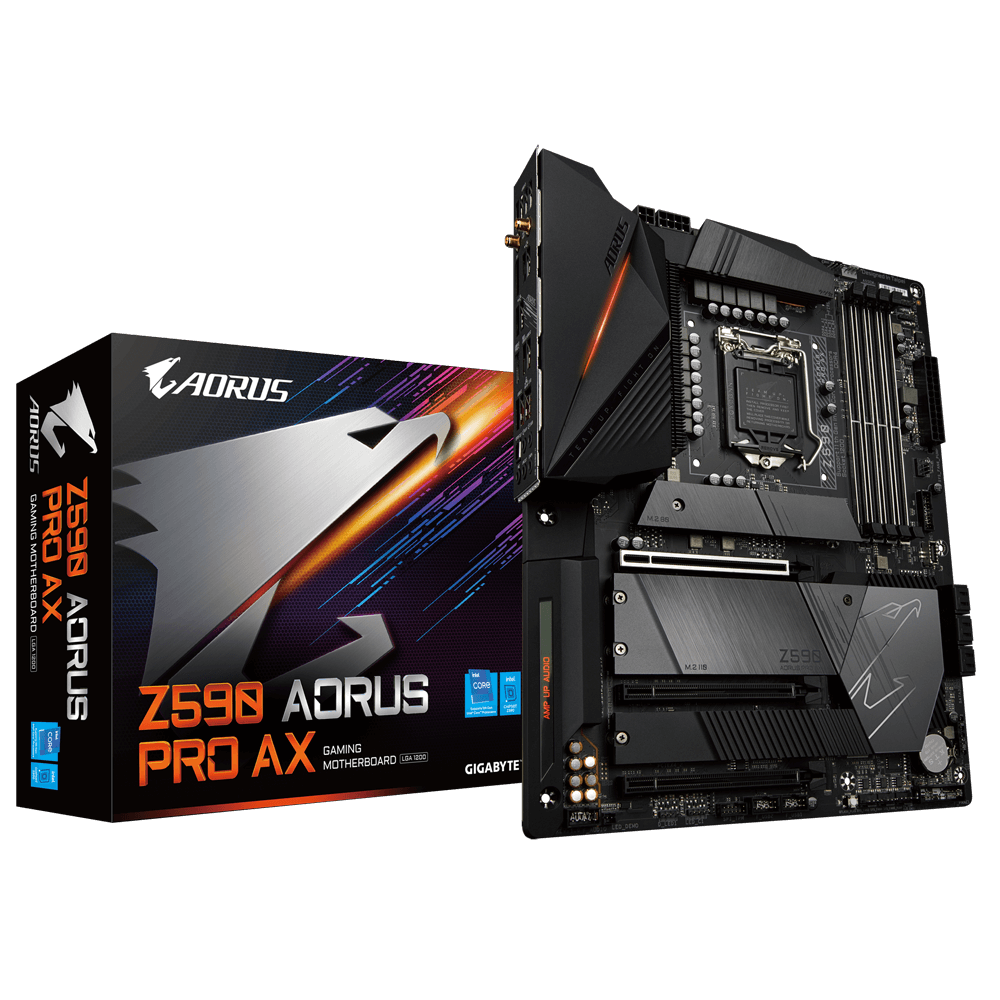

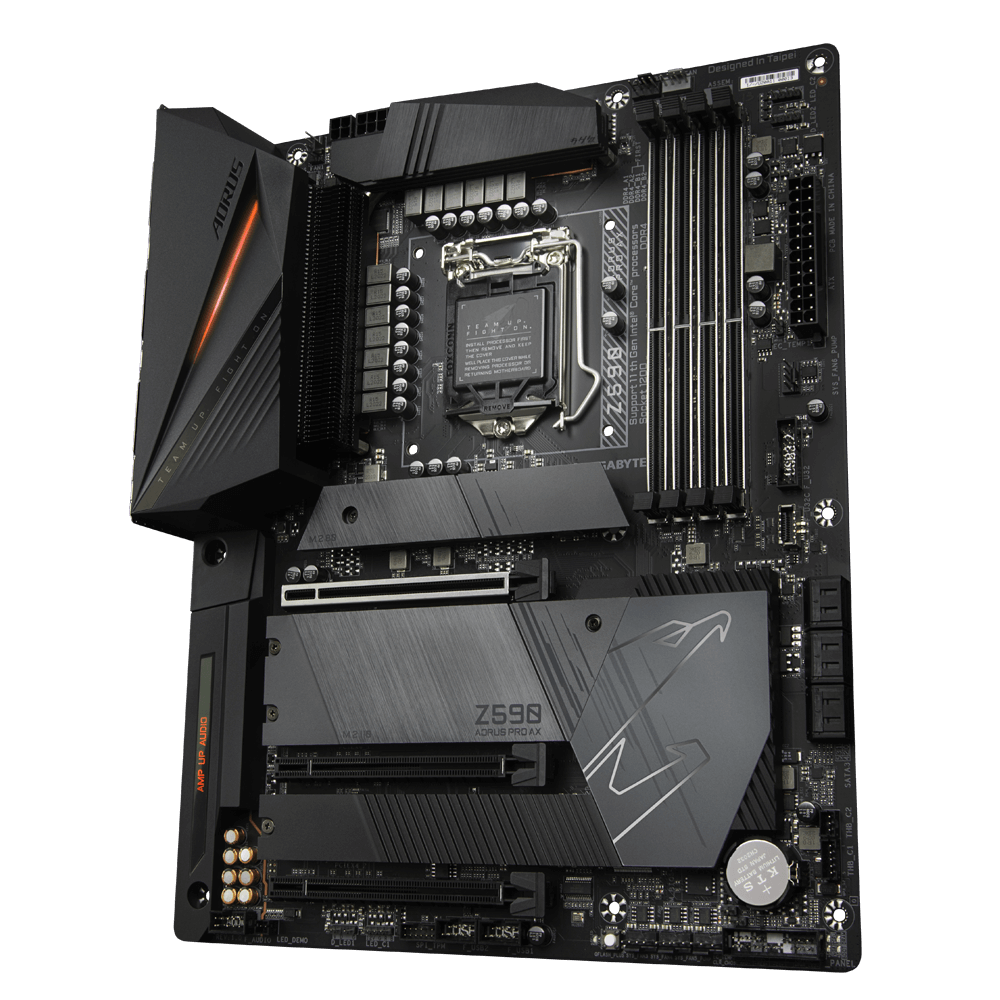

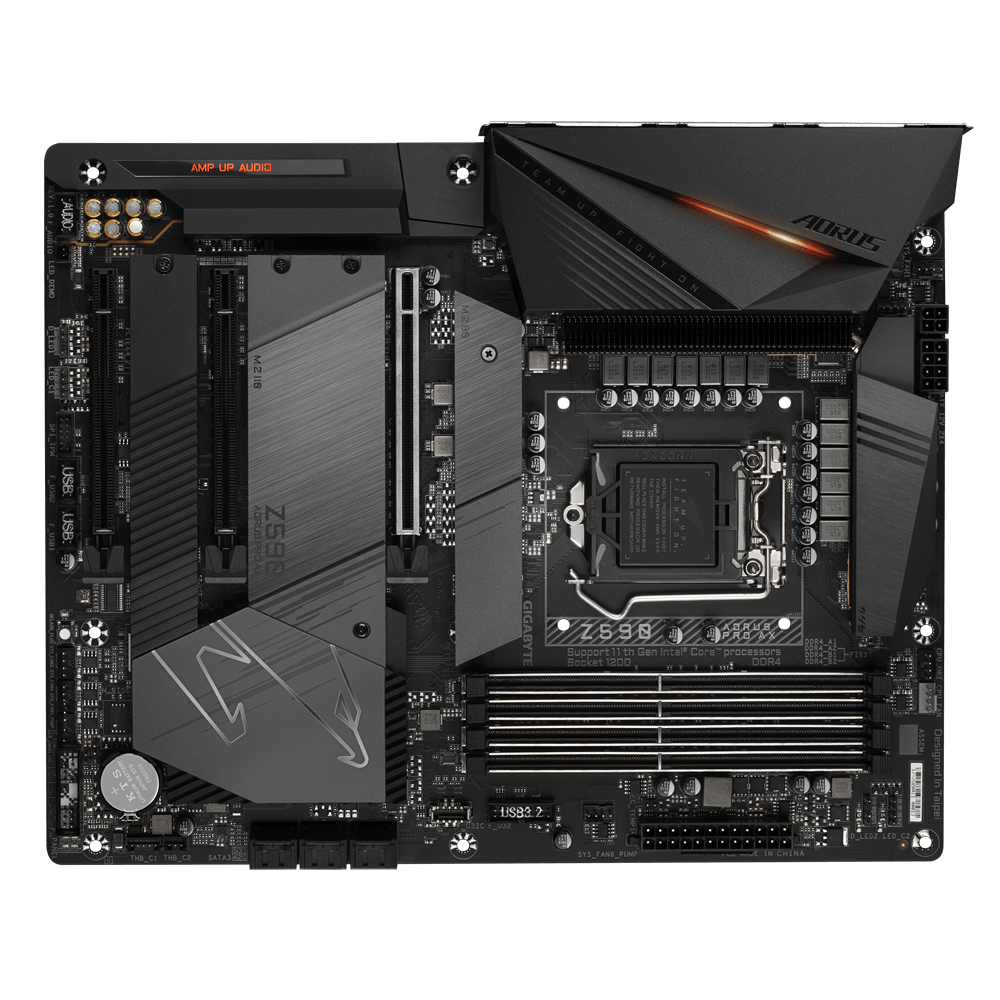

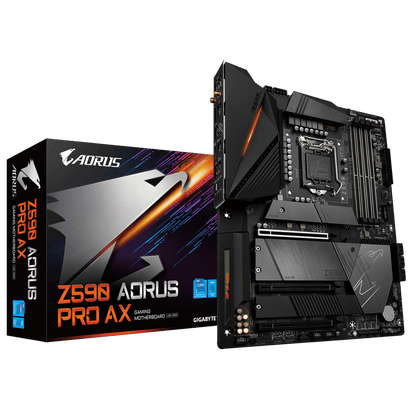

GIGABYTE Z590 AORUS PRO AX 4DDR4 4XM.2 MOTHERBOARD (DP) WIFI AX+BT

GIGABYTE Z590 AORUS PRO AX

Form Factor:

• ATX
• Dimensions (L x W): 30.5 cm x 24.4 cm

CPU Support:

• LGA1200 socket
• 11th Gen Intel® Core™ i9/i7/i5
• 10th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron®
  • Celeron® limited to 4 MB Intel® Smart Cache (G5xx5 family)

Chipset:

• Intel® Z590 Express

Memory:

• 4 x DDR4 DIMM slots (Dual Channel) – up to 128GB
• Supported speeds:
  • 11th Gen: Up to DDR4 5400 (O.C.)
  • 10th Gen i9/i7: Up to DDR4 2933
  • 10th Gen i5/i3/Pentium®/Celeron®: Up to DDR4 2666
• Supports ECC (non-ECC mode) & XMP

Graphics (Integrated, CPU-Dependent):

• DisplayPort 1.2 (4096x2304 @ 60Hz)

Audio:

• Realtek® ALC4080 Codec
• High Definition Audio (2/4/5.1/7.1-channel)
• S/PDIF Out

Networking:

• LAN: Intel® 2.5GbE
• Wi-Fi: Intel® Wi-Fi 6 AX200 (Dual-Band, 2.4/5GHz, 2.4 Gbps)
• Bluetooth: 5.1

Expansion Slots:

• 1 x PCIe 4.0 x16 (x16 mode) (11th Gen CPUs only, x8 if M2B_CPU or M2C_CPU used)
• 2 x PCIe 3.0 x4
• Supports AMD Quad-GPU & 2-Way CrossFire™

Storage:

• M.2 Slots (4x total):
  • CPU-Controlled:
    • 1 x M.2 PCIe 4.0 x4/x2 (2242/2260/2280) (11th Gen only)
    • 2 x M.2 PCIe 4.0 x4/x2 (2260/2280/22110) (11th Gen only)
  • Chipset-Controlled:
    • 1 x M.2 PCIe 3.0 x4/x2 & SATA (2242/2260/2280/22110)
• 6 x SATA 6Gb/s (RAID 0, 1, 5, 10)
• Intel® Optane™ Memory Ready

USB Ports:

• Rear I/O:
  • 1 x USB 3.2 Gen 2x2 Type-C
  • 4 x USB 3.2 Gen 2 Type-A
  • 4 x USB 3.2 Gen 1
  • 4 x USB 2.0/1.1
• Internal:
  • 1 x USB 3.2 Gen 2 Type-C header
  • 2 x USB 3.2 Gen 1 headers (4 ports)
  • 2 x USB 2.0 headers (4 ports)

Internal Connectors:

• 1 x 24-pin ATX power, 1 x 8-pin & 1 x 4-pin ATX 12V
• 4 x system fan, 2 x system fan/pump, 1 x CPU fan, 1 x water cooling fan
• 2 x Addressable RGB, 2 x RGB LED headers
• 2 x Thunderbolt™ add-in card connectors
• 6 x SATA 6Gb/s, 4 x M.2 slots
• 1 x Front panel, 1 x Front panel audio
• 1 x TPM header, 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

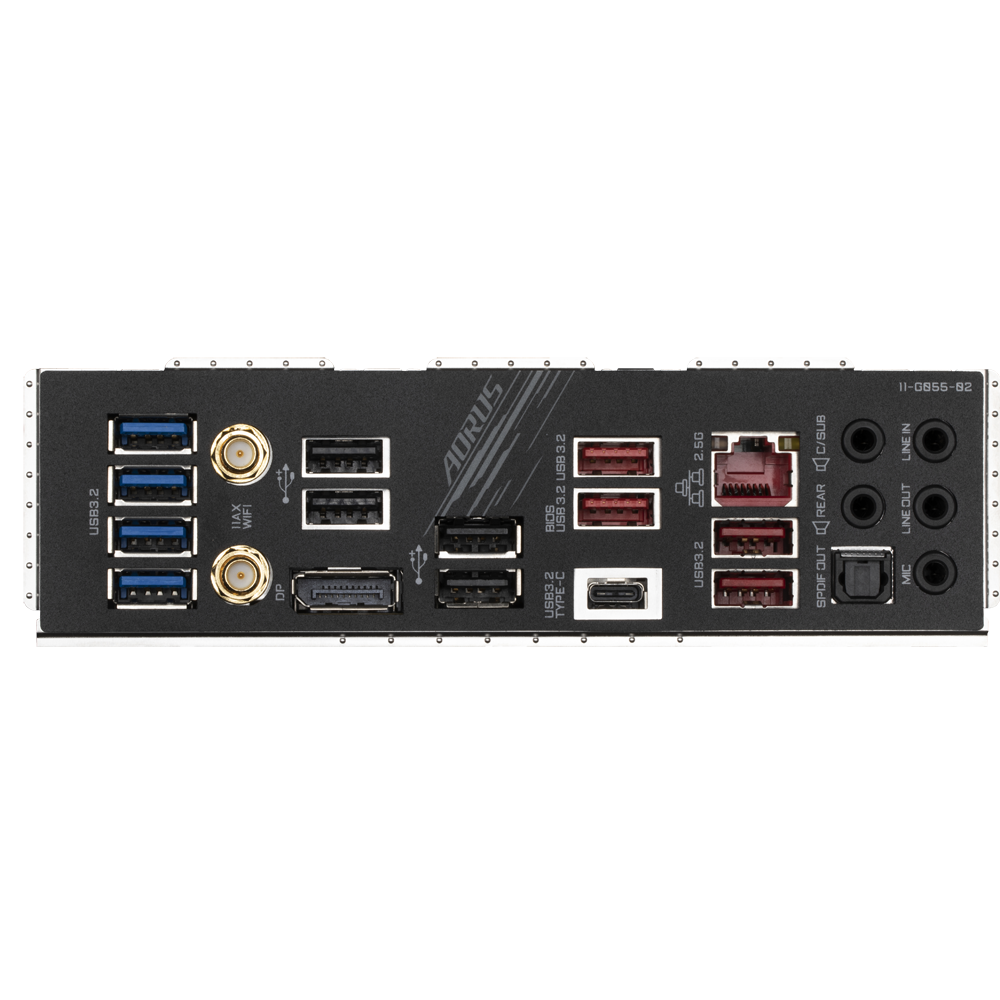

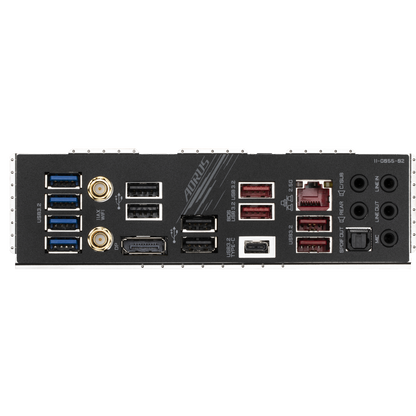

Rear I/O Ports:

• 1 x USB 3.2 Gen 2x2 Type-C
• 4 x USB 3.2 Gen 2 Type-A
• 4 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1
• 2 x SMA antenna connectors (Wi-Fi)
• 1 x DisplayPort
• 1 x 2.5GbE LAN (RJ-45)
• 1 x Optical S/PDIF Out
• 5 x Audio jacks

BIOS & Software:

• AMI UEFI BIOS, 256Mbit Flash
• Gigabyte APP Center:
  • @BIOS, EasyTune, Fast Boot, Game Boost, RGB Fusion, Smart Backup, System Information Viewer
• Supports Q-Flash Plus, Q-Flash, Xpress Install
• Bundled Software: Norton® Internet Security (OEM), cFosSpeed

Operating System:

• Windows 10 (64-bit)
