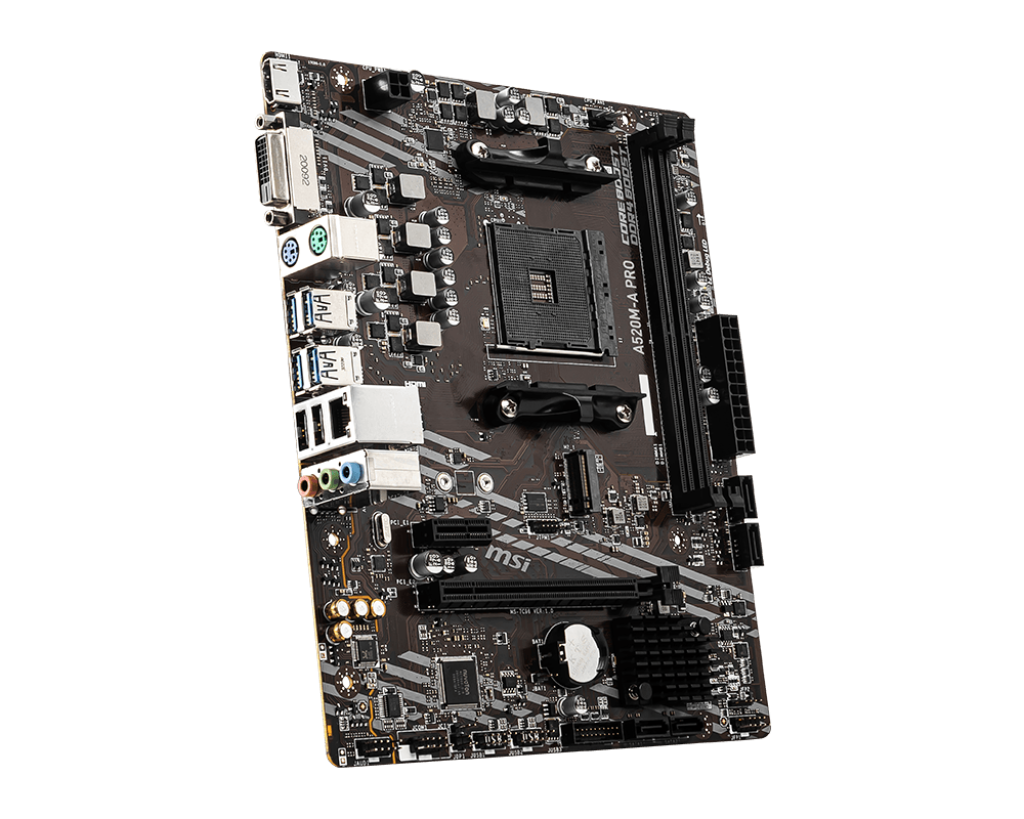

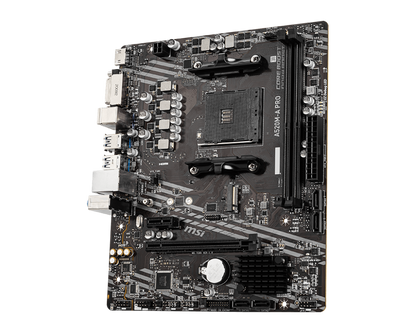

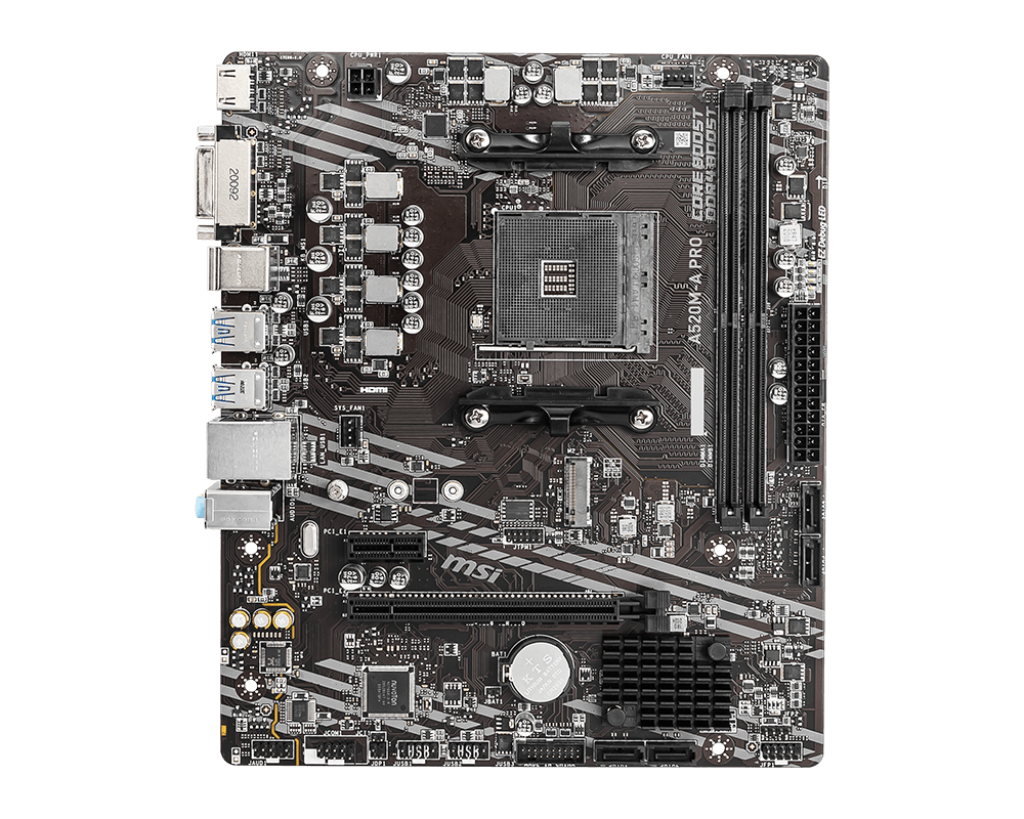

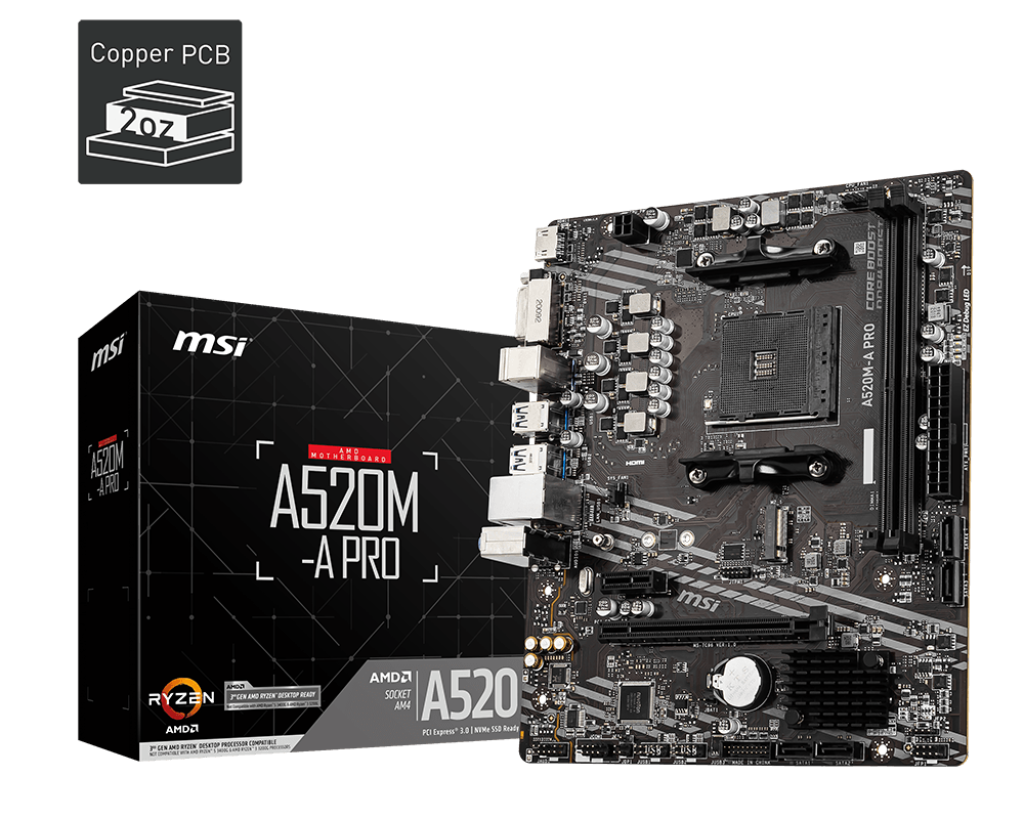

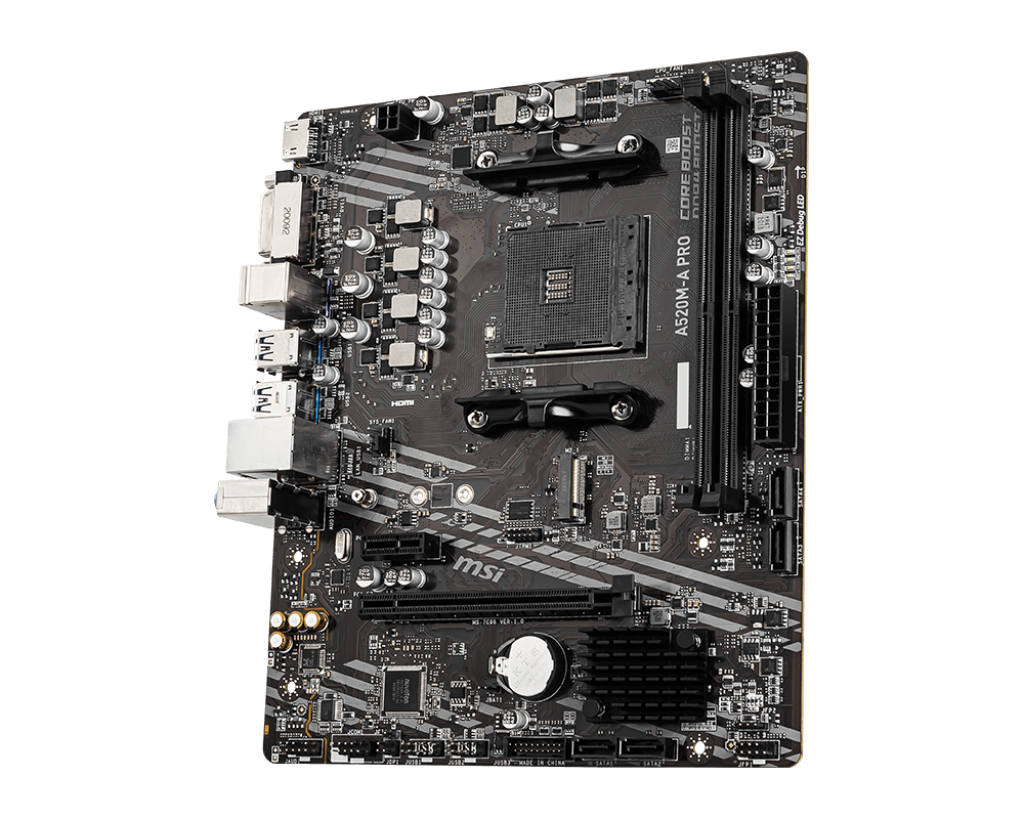

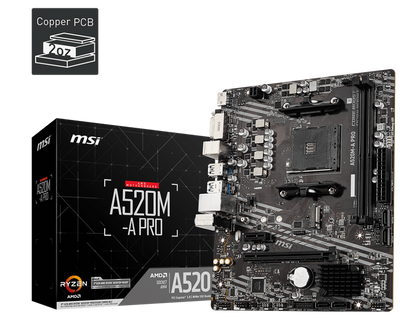

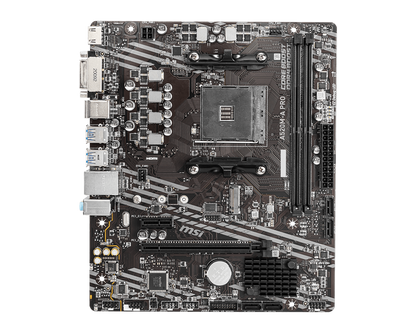

MSI A520M-A PRO 2DDR4 M.2 MOTHERBOARD (DVI, HDMI)

Motherboard Specifications

• Socket: AMD Socket AM4
• Chipset: AMD® A520
• Form Factor: Micro-ATX (MATX)

Memory

• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory: 64GB

Expansion Slots

• PCI-E x16 Slots: 1
• PCI-E Generation: Gen3
• PCI-E x1 Slots: 1

Storage & RAID

• SATA III Ports: 4
• M.2 Slots: 1
• RAID Support: 0, 1, 10

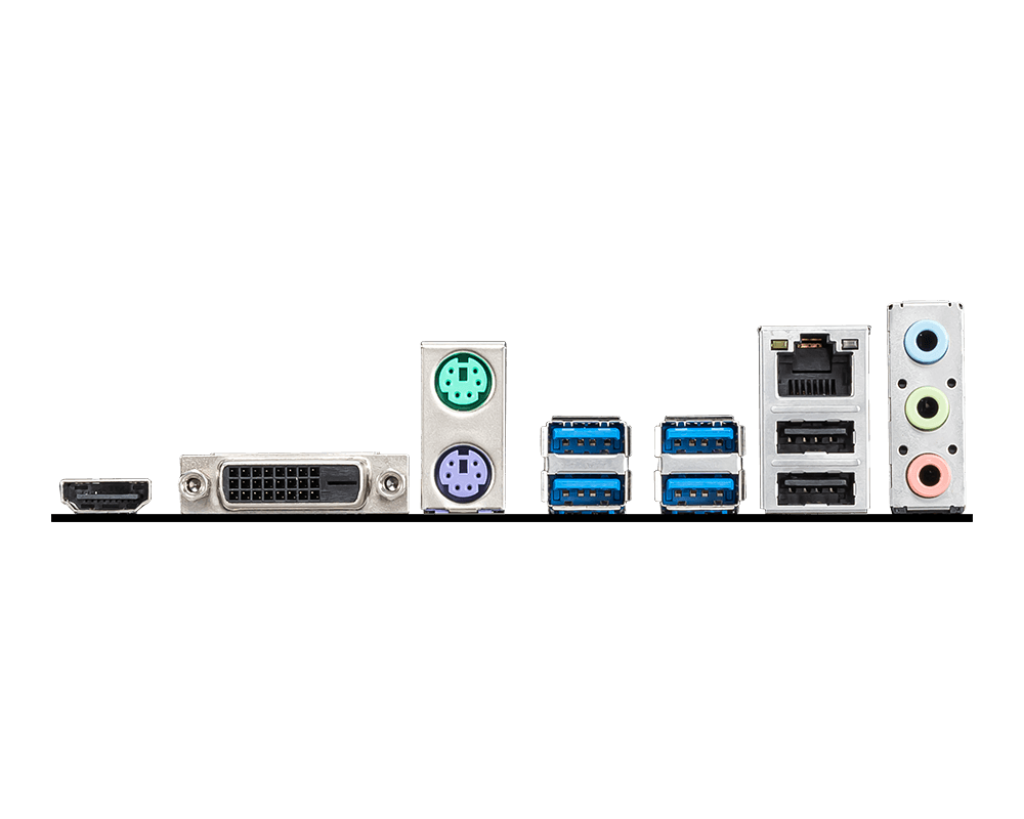

I/O Ports

USB Ports

• Front Panel:
  • 2x USB 3.2 Gen 1 (Type A)
  • 4x USB 2.0
• Rear Panel:
  • 4x USB 3.2 Gen 1 (Type A)
  • 2x USB 2.0 (Type A)

Other Ports

• Serial Port (Front): 1
• Audio Ports (Rear): Realtek® ALC892/ALC897 Codec
• DVI-D: 1
• HDMI: 1
• DirectX Support: 12

Additional Features

• TPM (Header): Yes (1)
• CPU Support: Windows® 10 64-bit Compatible
