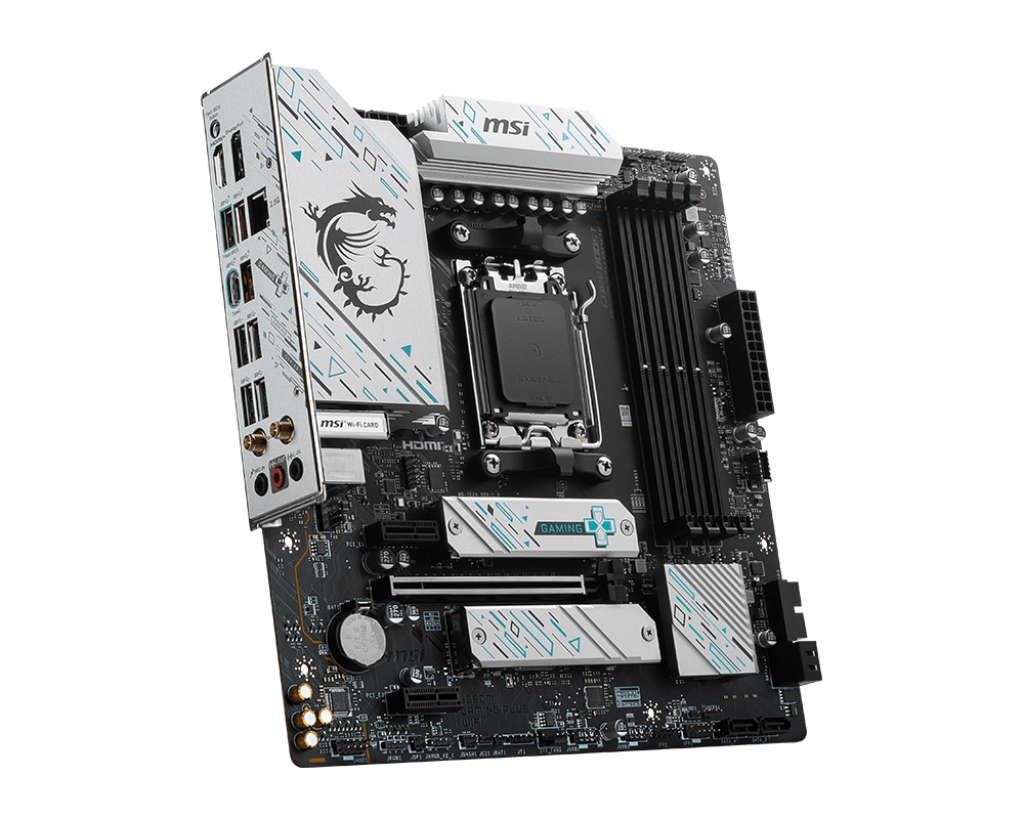

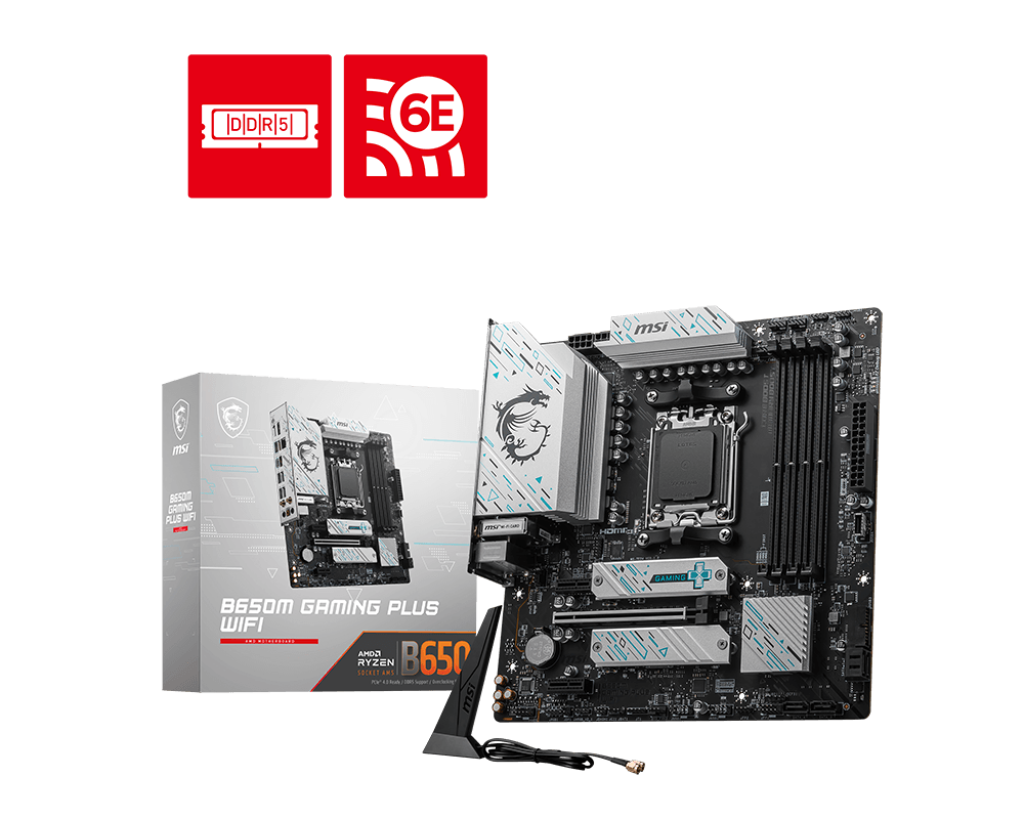

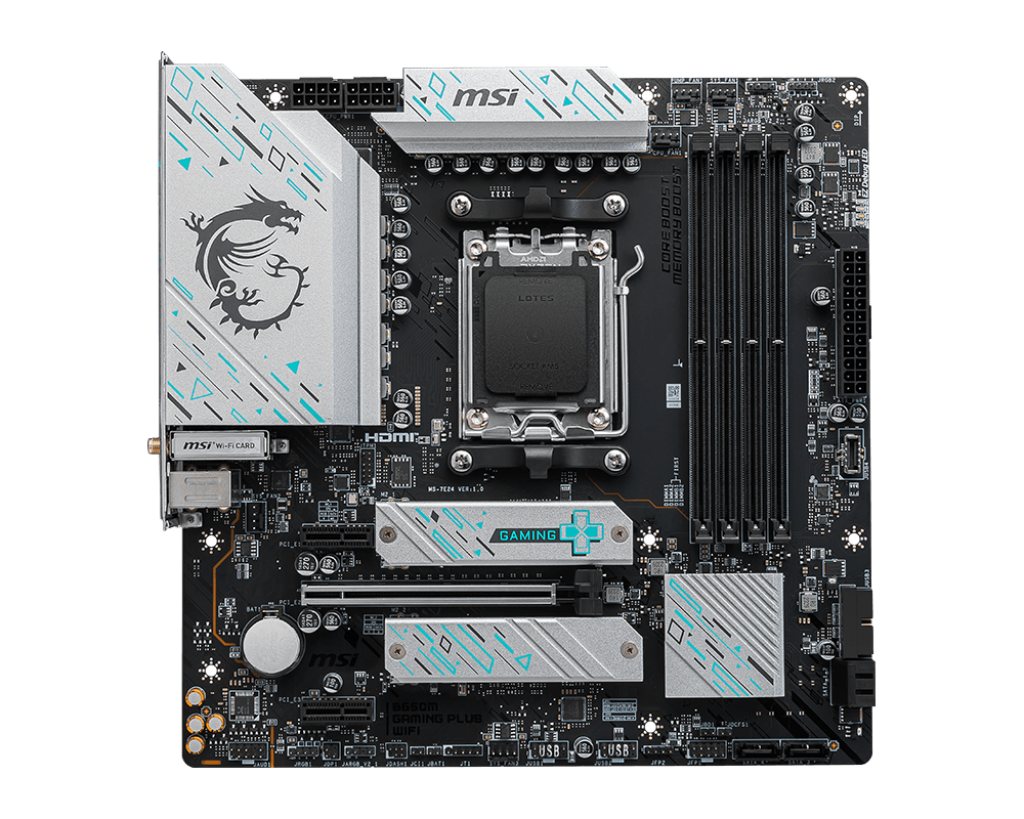

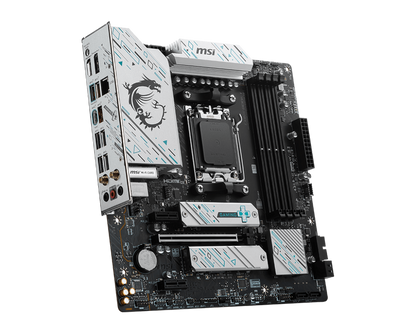

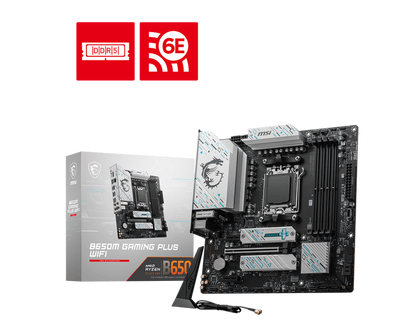

MSI B650M GAMING PLUS WIFI 4DDR5 2XM.2 MOTHERBOARD (HDMI, DP) WIFI+BT

Motherboard Specifications

• Chipset: AMD B650
• CPU Compatibility: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Form Factor: Micro-ATX (mATX) – 243.84mm x 243.84mm

Memory

• DIMM Slots: 4x DDR5 UDIMM
• Max Memory: 256GB
• Supported Speeds: DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) MHz
• Memory Features:
  • Dual-Channel Mode
  • Non-ECC, Un-buffered Memory
  • AMD EXPO™ Support
  • Max Overclocking Frequencies:
    • 1DPC 1R: Up to 7200+ MHz
    • 1DPC 2R: Up to 6000+ MHz
    • 2DPC 1R: Up to 6000+ MHz
    • 2DPC 2R: Up to 5400+ MHz

Graphics Support

• Integrated Graphics: Dependent on CPU
• Display Outputs:
  • HDMI™ 2.1: Max Resolution 4K @ 60Hz
  • DisplayPort 1.4: Max Resolution 4K @ 60Hz

Expansion Slots

• PCI-E x16 Slots: 1
  • Ryzen™ 9000/ 7000 Series: x16/x4
  • Ryzen™ 8700/ 8600/ 8400 Series: x8/x4
  • Ryzen™ 8500/ 8300 Series: x4/x4
• PCI-E x1 Slots: 2
  • PCI_E1 (Chipset): PCIe 3.0 x1
  • PCI_E2 (CPU): PCIe 4.0 x16
  • PCI_E3 (Chipset): PCIe 3.0 x1

Storage & RAID

• M.2 Slots: 2
  • M.2_1 (From CPU): PCIe 4.0 x4 – Supports 2280/2260 devices
  • M.2_2 (From CPU): PCIe 4.0 x4 – Supports 2280/2260 devices
  • Note: M.2_2 runs at PCIe 4.0 x2 speed when using Ryzen™ 8500/ 8300 processors
• SATA III Ports: 4
• RAID Support:
  • RAID 0, 1, 10 for SATA devices
  • RAID 0, 1 for M.2 NVMe devices

Networking

• LAN: Realtek® RTL8125BG 2.5Gbps LAN
• Wi-Fi & Bluetooth:
  • Wi-Fi 6E (M.2 Key-E slot, pre-installed module)
  • Bluetooth® 5.3

USB Ports

Front Panel:

• 4x USB 2.0
• 2x USB 5Gbps (Type-A)
• 1x USB 10Gbps (Type-C)

Rear Panel:

• 4x USB 5Gbps (Type-A)
• 3x USB 10Gbps (Type-A)
• 1x USB 10Gbps (Type-C)

Internal I/O Ports

• Power Connectors:
  • 1x ATX 24-pin
  • 2x CPU 8-pin
• Cooling Headers:
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
• RGB & LED:
  • 2x Addressable V2 RGB LED (JARGB_V2)
  • 2x RGB LED (JRGB)
• Other Headers:
  • 1x TPM 2.0 Pin Header
  • 1x Front Audio (JAUD)
  • 1x Chassis Intrusion (JCI)
  • 1x Tuning Controller (JDASH)

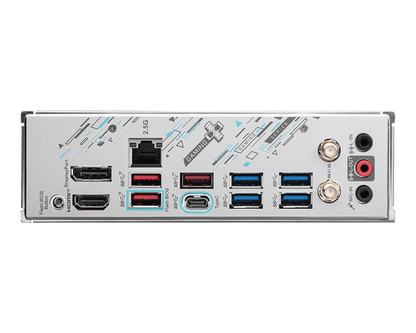

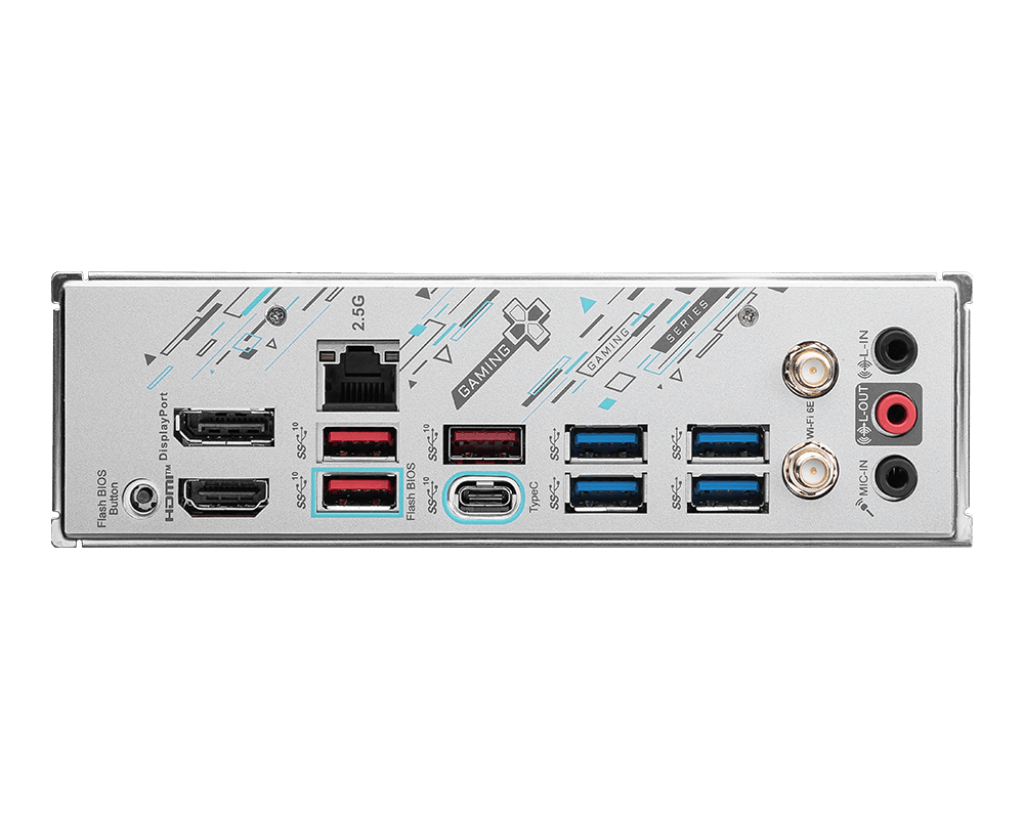

Back Panel I/O Ports

• Display: HDMI™ 2.1, DisplayPort 1.4
• LAN: 2.5Gbps LAN
• Wi-Fi / Bluetooth
• USB Ports:
  • 3x USB 10Gbps (Type-A)
  • 1x USB 10Gbps (Type-C)
  • 4x USB 5Gbps (Type-A)
• Other:
  • Flash BIOS Button
  • Audio Connectors

Audio

• Codec: Realtek® ALC897
• Channels: 7.1-Channel High Definition Audio

Operating System Support

• Windows® 11 64-bit
• Windows® 10 64-bit
