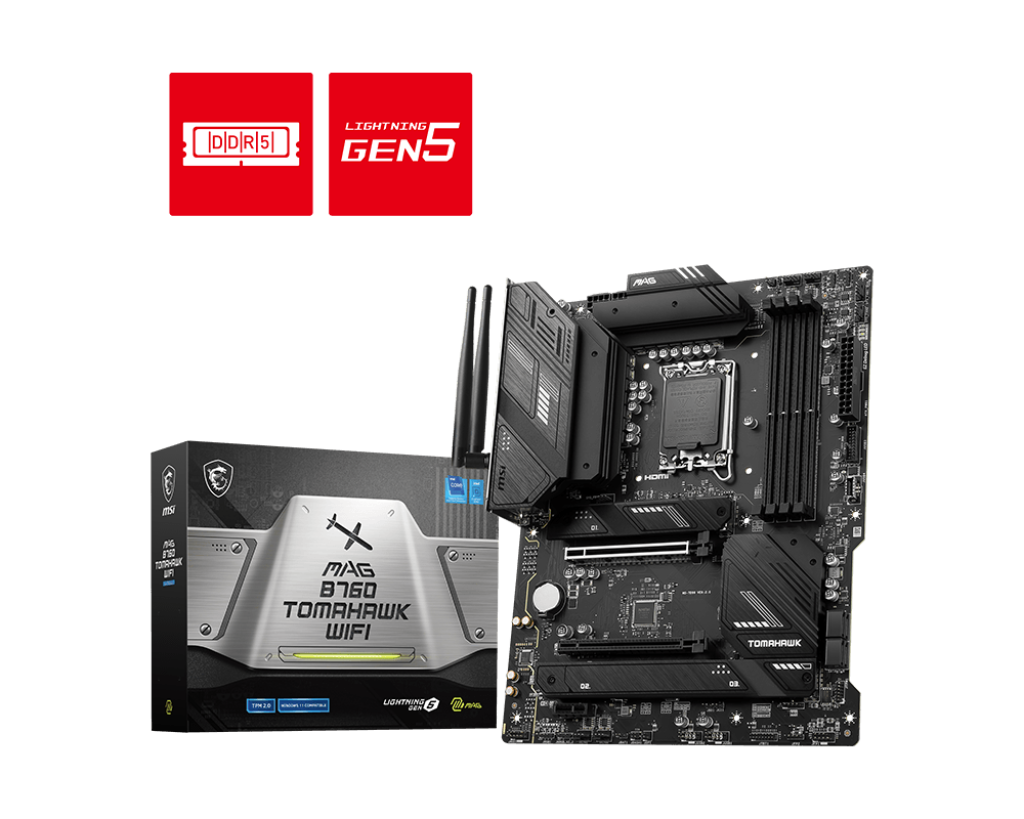

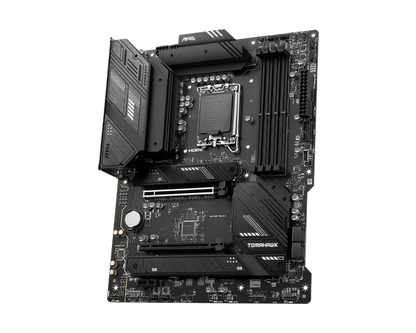

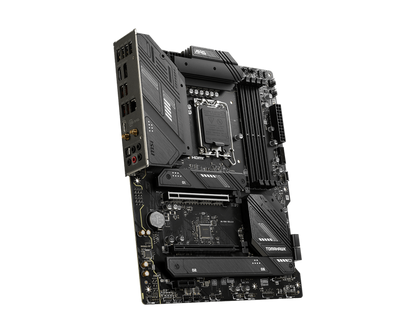

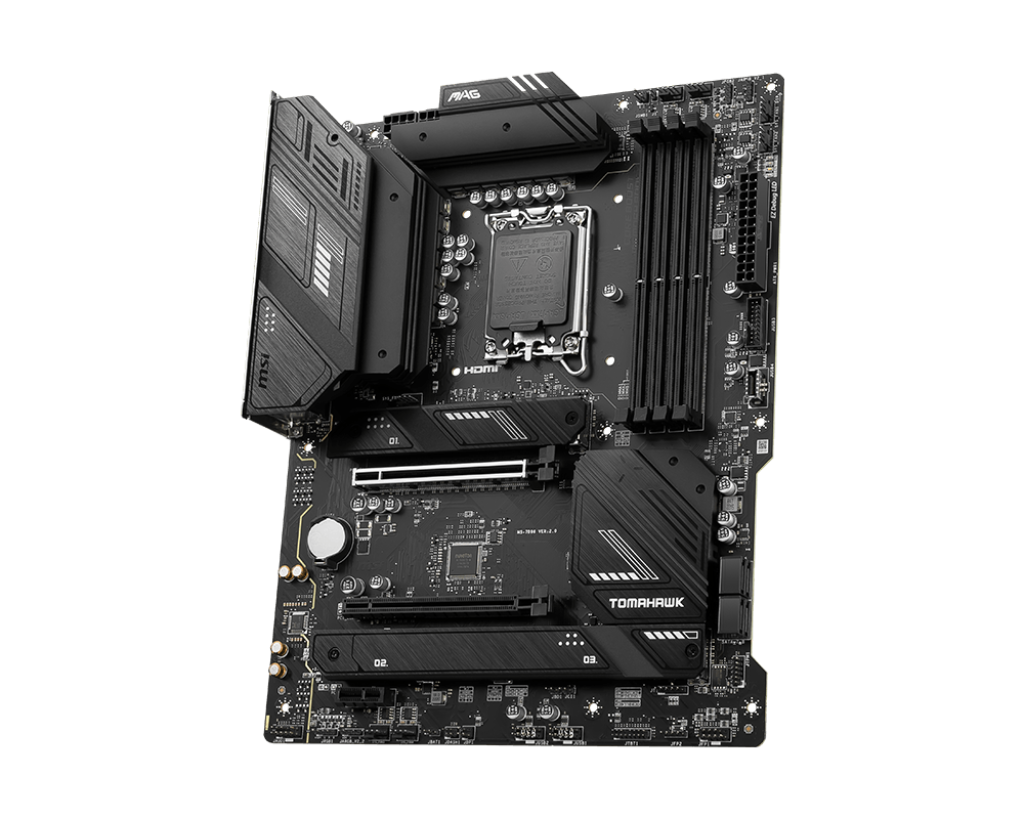

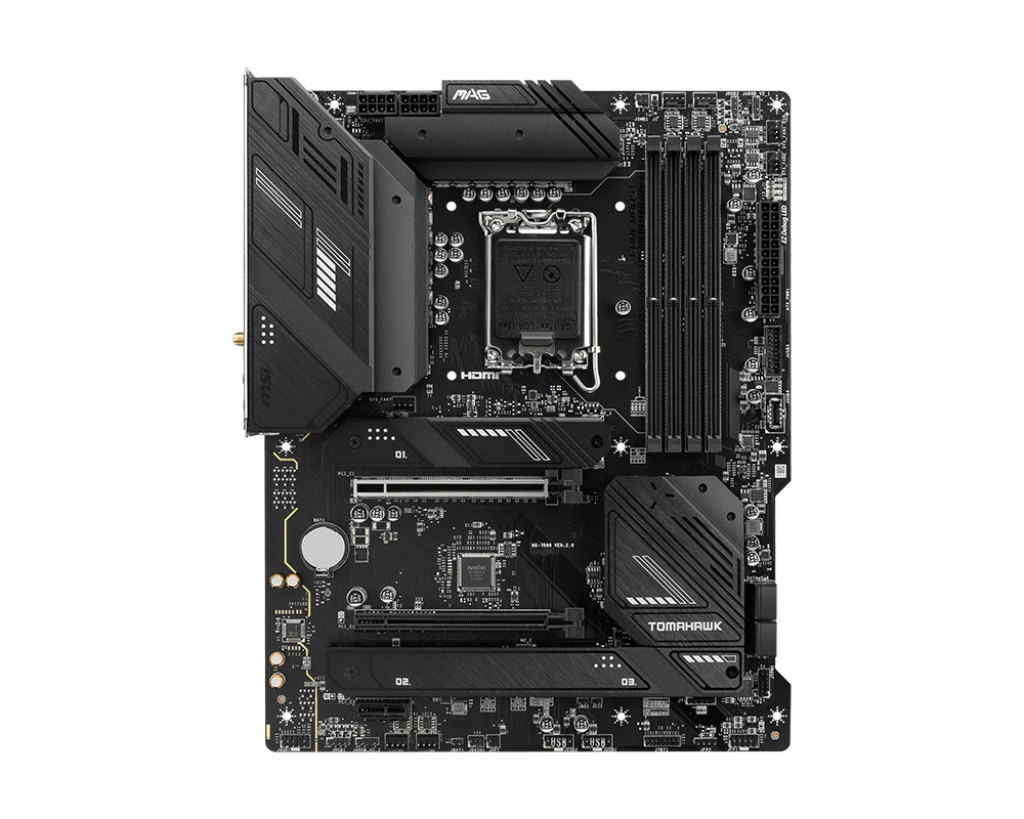

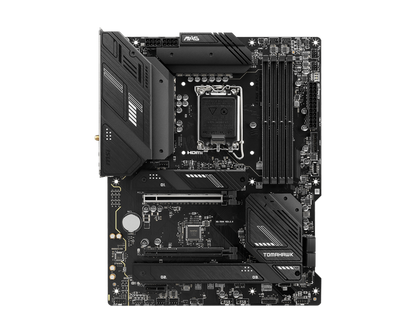

MSI MAG B760 TOMAHAWK WIFI 4DDR5 3XM.2 MOTHERBOARD (HDMI, DP) WIFI+BT

Key Specifications

• Chipset: Intel B760
• CPU Socket: LGA 1700
• Supported Processors: Intel® Core™ 14th, 13th, 12th Gen, Intel® Pentium® Gold & Celeron®
• Memory Support: 4x DDR5, up to 256GB, max speed 7000+(OC)
• Graphics Support: HDMI 2.1 (4K @ 60Hz) & DisplayPort 1.4 (8K @ 60Hz)
• Expansion Slots: 2x PCI-E x16, 1x PCI-E x1
• Storage: 3x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s
• LAN: Realtek® 2.5Gbps LAN
• Wireless & Bluetooth: Intel® Wi-Fi 6E, Bluetooth® 5.3
• USB Ports: 12x USB (Front & Rear) including Type-C
• Audio Codec: Realtek® ALC897 (7.1-Channel HD Audio, S/PDIF Output)
• Form Factor: ATX (243.84mm x 304.8mm)
• Operating System: Windows® 11 64-bit, Windows® 10 64-bit

CPU Support

• Intel® Core™ 14th, 13th, 12th Gen Processors
• Intel® Pentium® Gold & Celeron® Processors

Memory

• Slots: 4x DDR5 DIMM
• Maximum Capacity: 256GB
• Supported Frequencies:
  • Overclocked: DDR5 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC)
  • JEDEC: DDR5 5600 / 5400 / 5200 / 5000 / 4800 MHz
• Overclocking Limits:
  • 1DPC 1R: Up to 7000+ MHz
  • 1DPC 2R: Up to 6600+ MHz
  • 2DPC 1R: Up to 6400+ MHz
  • 2DPC 2R: Up to 5600+ MHz
• Other Features: Dual-Channel Mode, non-ECC un-buffered, Intel® Extreme Memory Profile

Onboard Graphics (Depends on CPU with Integrated Graphics)

• 1x HDMI™ 2.1: Up to 4K @ 60Hz (HDR support)
• 1x DisplayPort 1.4: Up to 8K @ 60Hz

Expansion Slots

• 2x PCI-E x16:
  • PCI_E1 (From CPU): PCIe 5.0, up to x16
  • PCI_E2 (From Chipset): PCIe 3.0, up to x4
• 1x PCI-E x1: PCIe 4.0 (From Chipset)

Storage

• M.2 Slots:

  • M.2_1 (From CPU): PCIe 4.0 x4 (Supports 22110/2280/2260/2242)
  • M.2_2 (From Chipset): PCIe 4.0 x4 (Supports 2280/2260/2242)
  • M.2_3 (From Chipset): PCIe 4.0 x4 / SATA (Supports 2280/2260/2242)

• SATA Ports: 4x SATA 6Gb/s

• RAID Support: RAID 0, 1, 5, 10 for SATA storage

Audio

• Codec: Realtek® ALC897
• Channels: 7.1 High Performance Audio
• Additional Features: Supports S/PDIF Output

LAN & Wireless

• LAN: Realtek® 2.5Gbps
• Wireless & Bluetooth:
  • Wi-Fi: Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz, up to 2.4Gbps)
  • Bluetooth: 5.3, FIPS, FISMA

USB Ports

• Rear I/O:
  • 4x USB 2.0
  • 4x USB 10Gbps (Type-A)
  • 1x USB 20Gbps (Type-C)
• Front I/O:
  • 4x USB 2.0
  • 2x USB 5Gbps (Type-A)
  • 1x USB 10Gbps (Type-C)

Internal Connectors & Features

• Power Connectors:
  • 1x ATX 24-pin
  • 2x CPU 8-pin
• Cooling & Fans:
  • 1x CPU Fan
  • 1x Pump Fan
  • 5x System Fans
• RGB Headers:
  • 2x Addressable V2 RGB (JARGB_V2)
  • 2x RGB LED (JRGB)
• Other Connectors:
  • 1x TPM 2.0 Header
  • 1x Front Panel Header (JFP)
  • 1x Chassis Intrusion Header (JCI)
  • 1x Front Audio Header (JAUD)
  • 1x Tuning Controller Connector (JDASH)

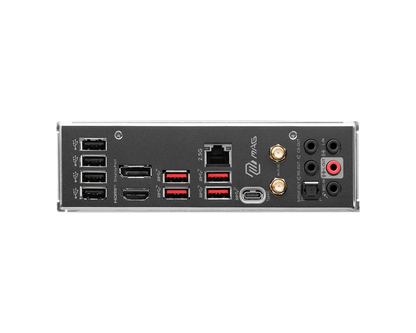

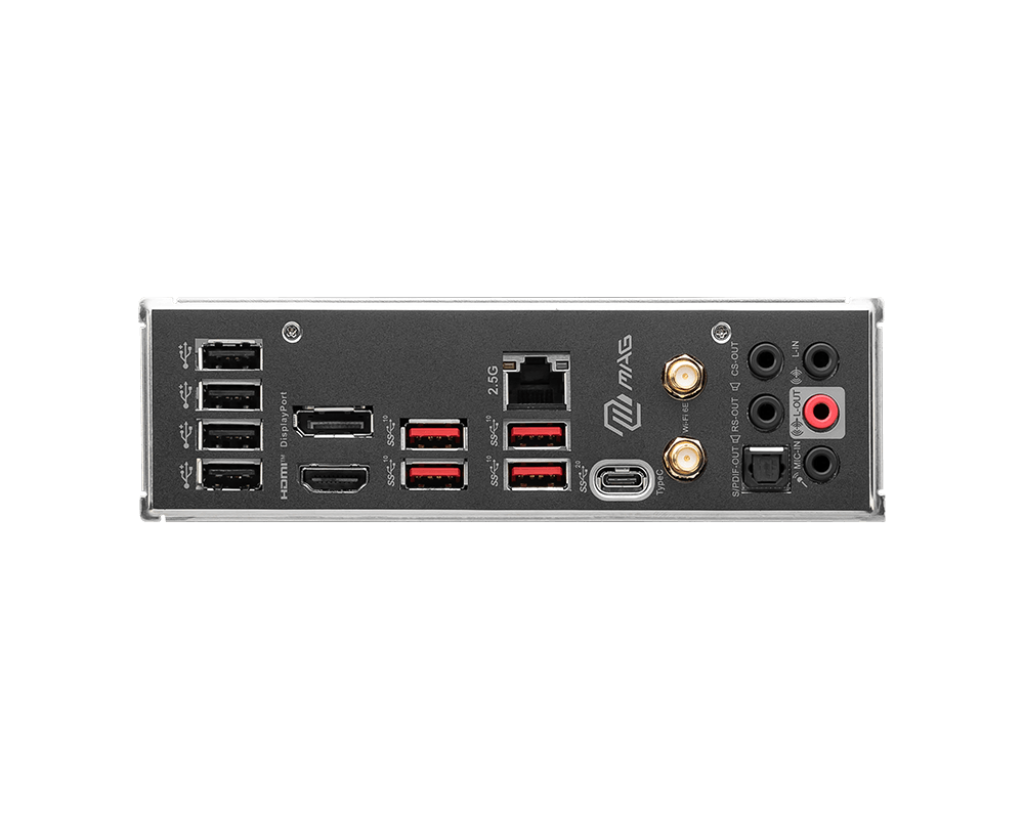

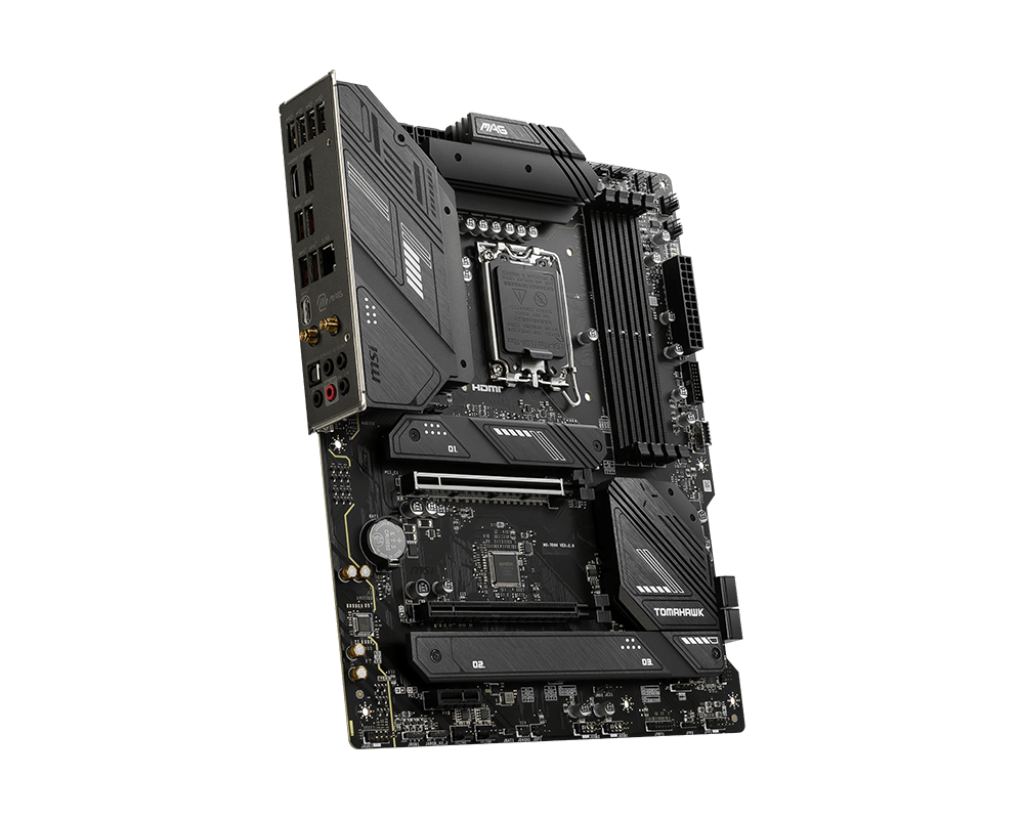

Back Panel Ports

• 4x USB 2.0
• 1x DisplayPort 1.4
• 4x USB 3.2 Gen 2 (10Gbps, Type-A)
• 1x 2.5G LAN Port
• 1x Wi-Fi / Bluetooth Antenna
• 3x HD Audio Jacks
• 1x HDMI™ 2.1 Port
• 1x USB 3.2 Gen 2x2 (20Gbps, Type-C)
• 1x Optical S/PDIF OUT

Additional Features

• LED Indicators: 4x EZ Debug LED
• Box Contents: Motherboard, User Manual, Accessories
