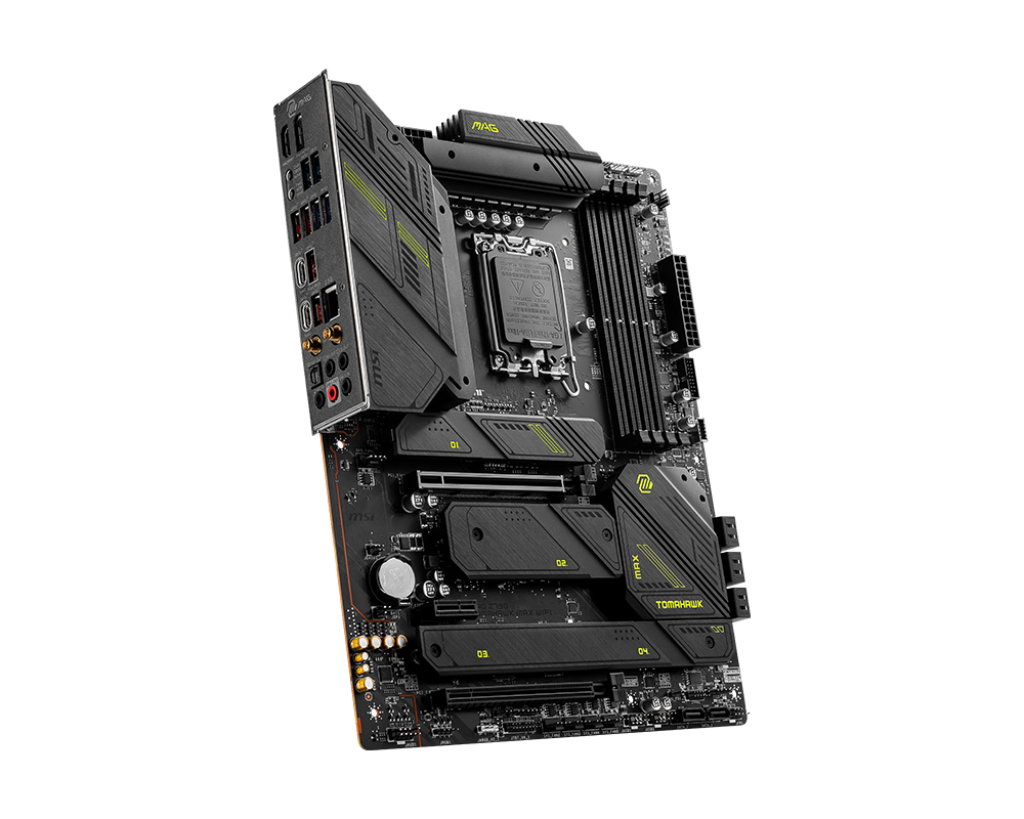

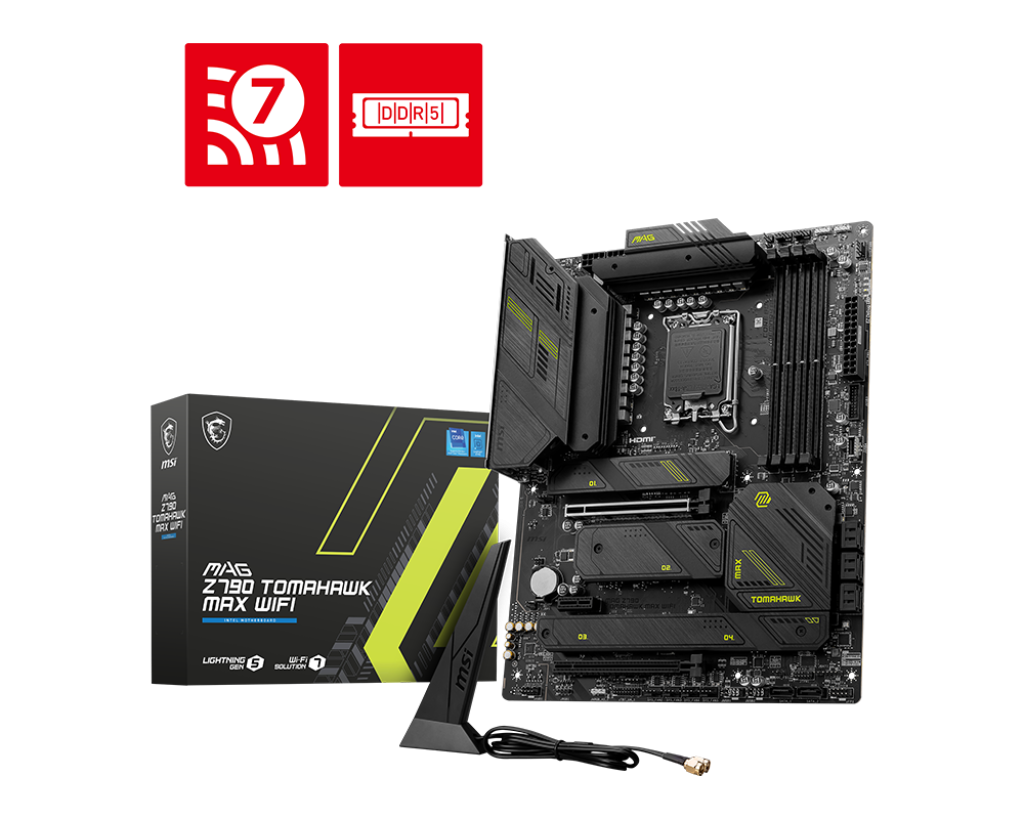

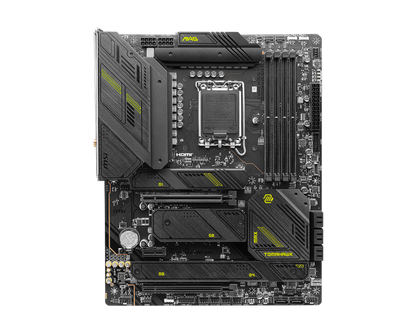

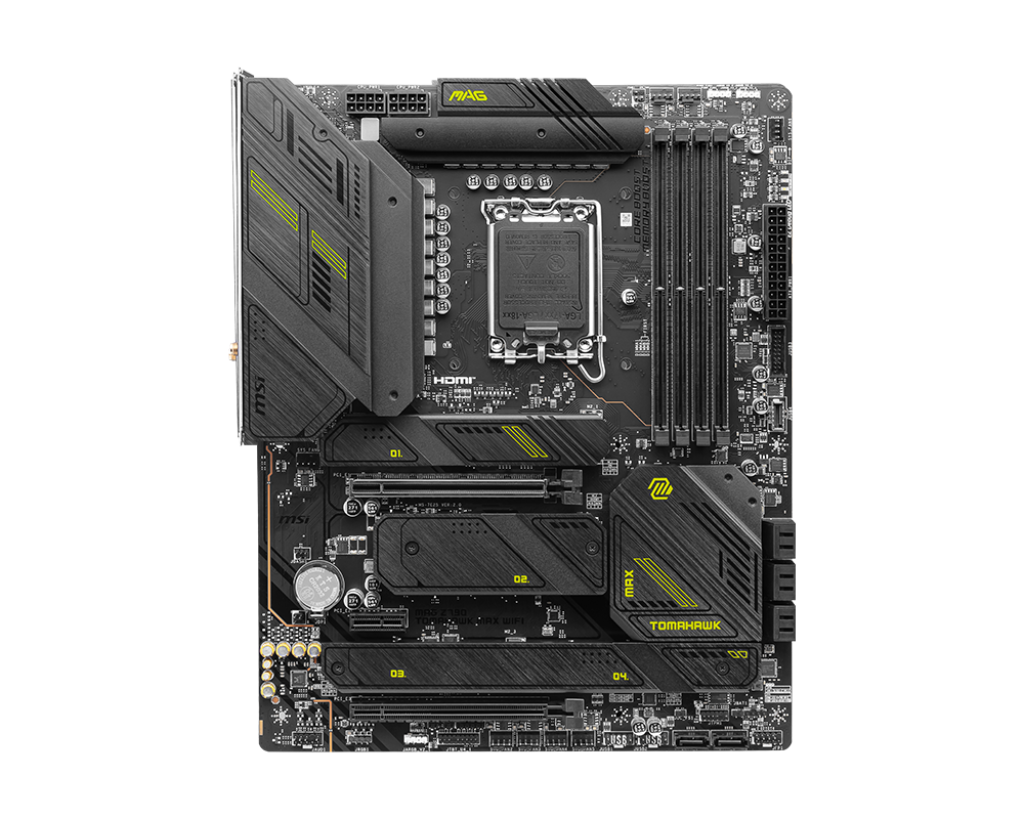

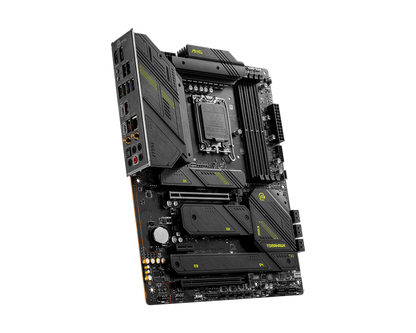

MSI MAG Z790 TOMAHAWK MAX WIFI 4DDR5 4XM.2 MOTHERBOARD (HDMI, DP) WIFI+BT

Motherboard Specifications

• Socket: LGA 1700

• Chipset: Intel® Z790

• CPU Support:

  • Intel® Core™ 14th/13th/12th Gen
  • Intel® Pentium® Gold & Celeron®

• Memory:

  • Slots: 4x DDR5 UDIMM
  • Max Capacity: 256GB
  • Supported Speeds:
    • Up to 7800+ MHz (OC)
    • Intel® XMP 3.0 OC Support
    • Dual-Channel, non-ECC, unbuffered

• PCI-E Slots:

  • x16: 2
  • x1: 1
  • Breakdown:
    • PCI-E 5.0 x16 (from CPU)
    • PCI-E 4.0 x4 (from Chipset)
    • PCI-E 3.0 x1 (from Chipset)

• Storage:

  • M.2 Slots: 4
    • M.2_1: PCIe 5.0 x4 (CPU) - 22110/2280/2260
    • M.2_2: PCIe 4.0 x4 (Chipset) - 2280/2260
    • M.2_3: PCIe 4.0 x4/SATA (Chipset) - 2280/2260/2242
    • M.2_4: PCIe 4.0 x4 (Chipset) - 2280/2260/2242
  • SATA III Ports: 8
  • Notes:
    • PCI_E1 slot runs at Gen5x8 when M.2_1 is populated
    • SATA_1 & SATA_2 disabled when using M.2 SATA in M.2_3

• RAID Support:

  • RAID 0, 1, 5, 10 (SATA & NVMe M.2)
  • (SATA_A1_A2 do not support RAID)

• Onboard Graphics:

  • HDMI 2.1: 4K @ 60Hz
  • DisplayPort 1.4: 8K @ 60Hz
  • (Requires CPU with integrated graphics)

• Audio:

  • Realtek® ALC4080 Codec
  • 7.1-Channel USB High-Performance Audio
  • Up to 32-Bit/384 kHz playback on the front panel

• LAN & Wireless:

  • Intel® 2.5Gbps LAN
  • Wi-Fi 7 (Pre-installed in M.2 Key-E slot)
    • MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
    • 802.11 a/b/g/n/ac/ax/be
  • Bluetooth 5.4 (MLO, 4KQAM)

• USB Ports:

  • Front Panel:
    • 4x USB 2.0
    • 2x USB 5Gbps Type-A
    • 1x USB 10Gbps Type-C
  • Rear Panel:
    • 4x USB 5Gbps Type-A
    • 4x USB 10Gbps Type-A
    • 1x USB 10Gbps Type-C
    • 1x USB 20Gbps Type-C

• Internal Connectors:

  • 1x ATX Power
  • 2x CPU Power
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 3x Addressable RGB (JARGB_V2)
  • 1x RGB LED (JRGB)
  • 1x TPM 2.0 Header
  • 1x USB4 Card Connector (JTBT_U4_1)

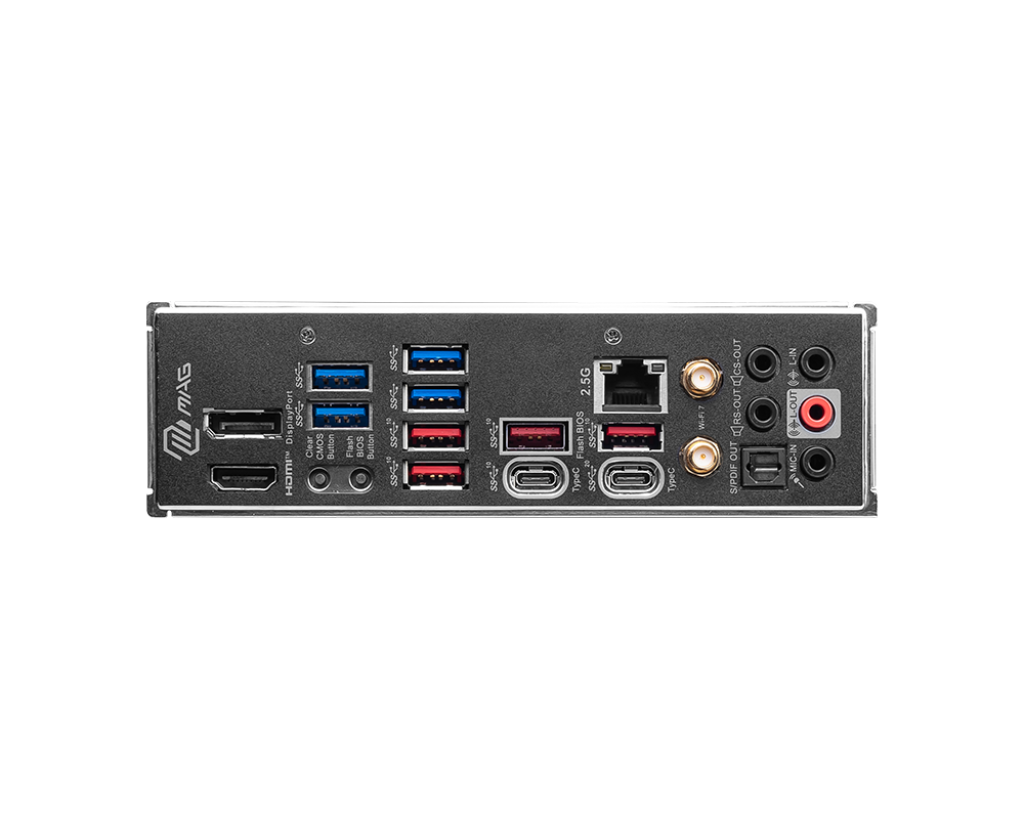

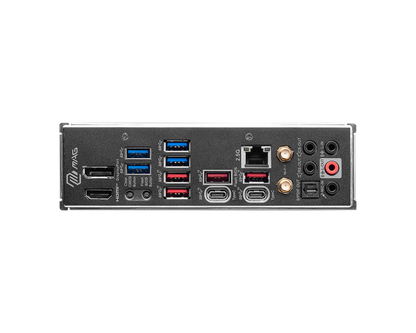

• Back Panel Ports:

  • DisplayPort
  • HDMI 2.1
  • 2.5G LAN
  • Wi-Fi/Bluetooth Antenna
  • Audio Jacks
  • USB Flash BIOS Button
  • Clear CMOS Button
  • USB Layout:
    • USB 3.2 Gen 1 5Gbps Type-A
    • USB 3.2 Gen 2 10Gbps Type-A
    • USB 3.2 Gen 2x2 20Gbps Type-C

• Operating System: Windows® 11 64-bit, Windows® 10 64-bit

• Form Factor: ATX (243.84mm x 304.8mm)
