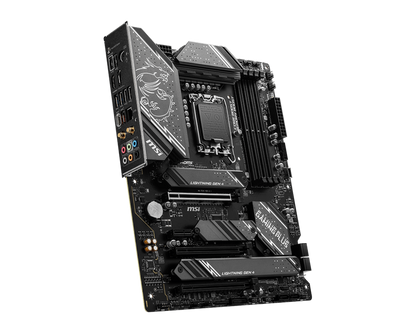

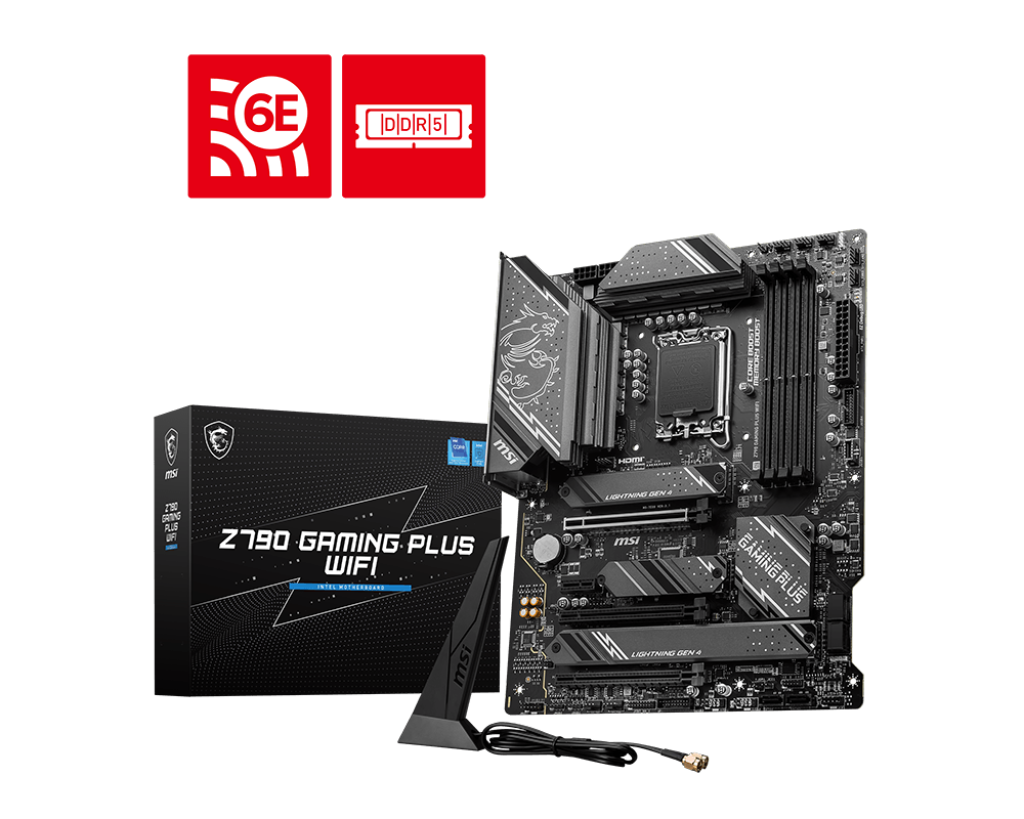

MSI Z790 GAMING PLUS WIFI 4DDR5 4XM.2 MOTHERBOARD (HDMI, DP) WIFI+BT

Specifications

• Socket: LGA 1700

• Chipset: Intel® Z790

• Memory:

  • Slots: 4x DDR5
  • Max Capacity: 256GB
  • Supported Speeds:
    • Up to 7200+ MHz (OC)
    • Supports Intel® XMP 3.0 OC
    • Dual-Channel Mode, non-ECC, unbuffered

• PCI-E Slots:

  • x16: 3
  • x1: 1
  • Breakdown:
    • PCI-E 5.0 x16 (from CPU)
    • PCI-E 4.0 x4 (from Chipset)
    • PCI-E 3.0 x1 (from Chipset)

• Storage:

  • M.2 Slots: 4
    • PCIe 4.0 x4 (CPU) - 22110/2280/2260/2242
    • PCIe 4.0 x4 (Chipset) - 2280/2260/2242
    • PCIe 4.0 x4/SATA mode (Chipset) - 2280/2260/2242
    • PCIe 4.0 x4/SATA mode (Chipset) - 2280/2260/2242
  • SATA III Ports: 6

• RAID Support:

  • RAID 0, 1, 5, 10 (SATA)
  • RAID 0, 1, 5, 10 (NVMe M.2)

• Onboard Graphics:

  • HDMI 2.1: 4K @ 60Hz
  • DisplayPort 1.4: 4K @ 60Hz
  • (Requires CPU with integrated graphics)

• Audio:

  • Realtek® ALC897 Codec
  • 7.1-Channel HD Audio

• LAN & Wireless:

  • Intel® 2.5Gbps LAN
  • Wi-Fi 6E (M.2 Key-E, pre-installed)
  • Bluetooth 5.3

• USB Ports:

  • Front Panel:
    • 4x USB 2.0
    • 4x USB 5Gbps Type-A
    • 1x USB 10Gbps Type-C
  • Rear Panel:
    • 4x USB 2.0
    • 2x USB 5Gbps Type-A
    • 1x USB 10Gbps Type-A
    • 1x USB 20Gbps Type-C

• Internal Connectors:

  • 1x ATX Power
  • 2x CPU Power
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x RGB LED (JRGB)
  • 2x Addressable RGB (JARGB_V2)
  • 1x TPM 2.0 Header
  • 1x USB4 Card Connector (JTBT_U4_1)

• Back Panel Ports:

  • Keyboard/Mouse
  • DisplayPort
  • HDMI 2.1
  • 2.5G LAN
  • Wi-Fi / Bluetooth Antenna
  • 3.5mm Audio Jacks
  • Optical S/PDIF
  • USB Flash BIOS Button

• Operating System: Windows® 11 64-bit, Windows® 10 64-bit

• Form Factor: ATX (243.84mm x 304.8mm)
