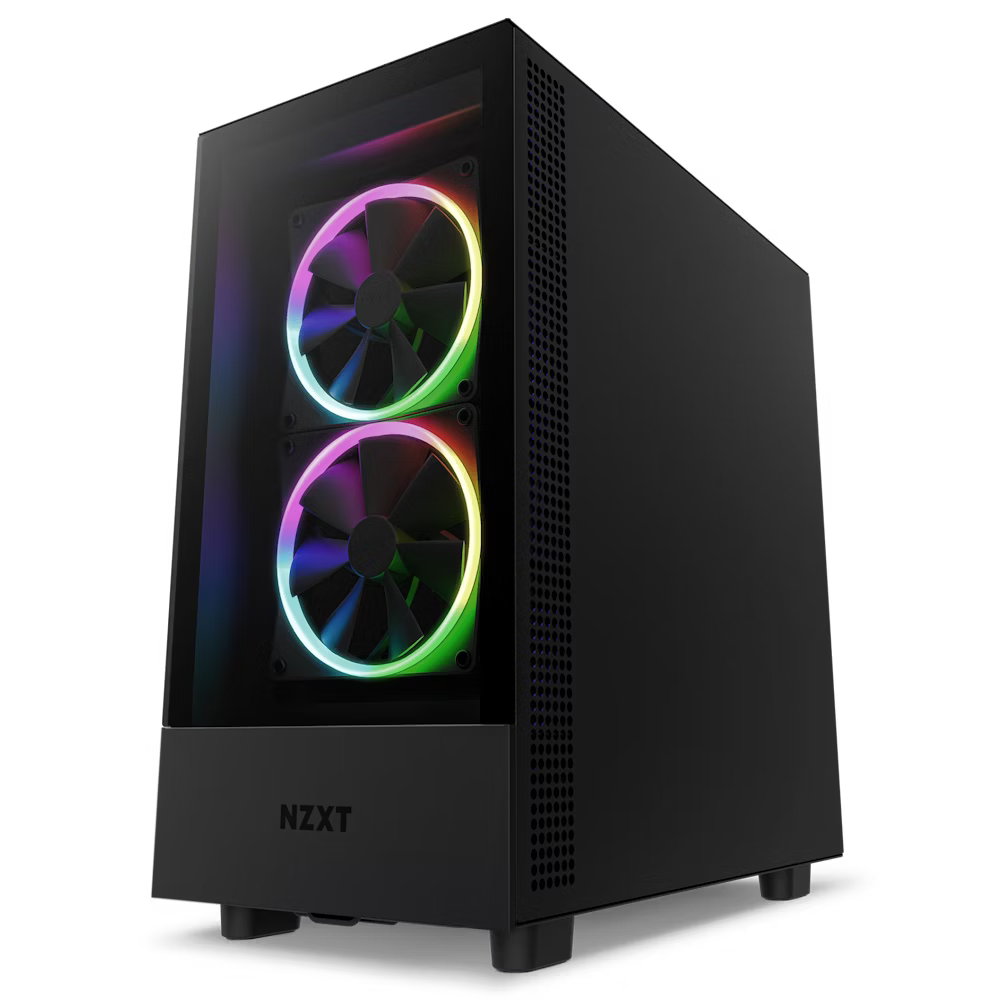

NZXT H5 ELITE MID TOWER CASE W/ TEMPERED GLASS (BLACK)

Specifications

• Motherboard Support: Mini-ITX, Micro-ATX, ATX
• Enclosure Type: Mid-Tower
• Case Material: SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

Dimensions

• Height: 464 mm (With Feet)
• Width: 227 mm
• Depth: 446 mm
• Weight: 8.1 kg

Compatibility & Clearance

• Max CPU Cooler Clearance: Up to 165mm
• Max GPU Clearance: Up to 365mm
• Front Radiator Clearance: 45mm
• Cable Management: Up to 23mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A: 1
• USB 3.2 Gen 2 Type-C: 1
• Headset Audio Jack: 1

Included Accessories

• Installation screws: 1
• Cable ties: 10
• RGB Lighting Controller: NZXT RGB Connector: 3 (Support up to 120 LEDs)

Expansion Slots

• Standard: 7

Drive Bays

• 2.5": 1+1
• 3.5": 1

Fan Support

• Front: 2 x F Series RGB 140mm (Case Version) included
• Top: 2 x 120mm
• Rear: 1 x 120mm
• Bottom: 1 x F Series Quiet 120mm (Case Version) included
• Filters: All Air Intakes

Radiator Support

• Front: Up to 280mm
• Top: Up to 240mm
• Rear: Up to 120mm

Fan Specs (F140 RGB Fan - Case Version)

• Speed: 500 - 1800 RPM
• Airflow: 24.85 - 89.48 CFM
• Static Pressure: 0.94 - 3.39 mm-H2O
• Noise: 20 - 32.5 dBA
• Fan Connector: 3-pin

Fan Specs (F120Q Airflow Fan - Case Version)

• Speed: 1200 ± 240 RPM
• Airflow: 62.18 CFM
• Static Pressure: 1.05 mm-H2O
• Noise: 25.1 dBA
• Fan Connector: 3-pin
