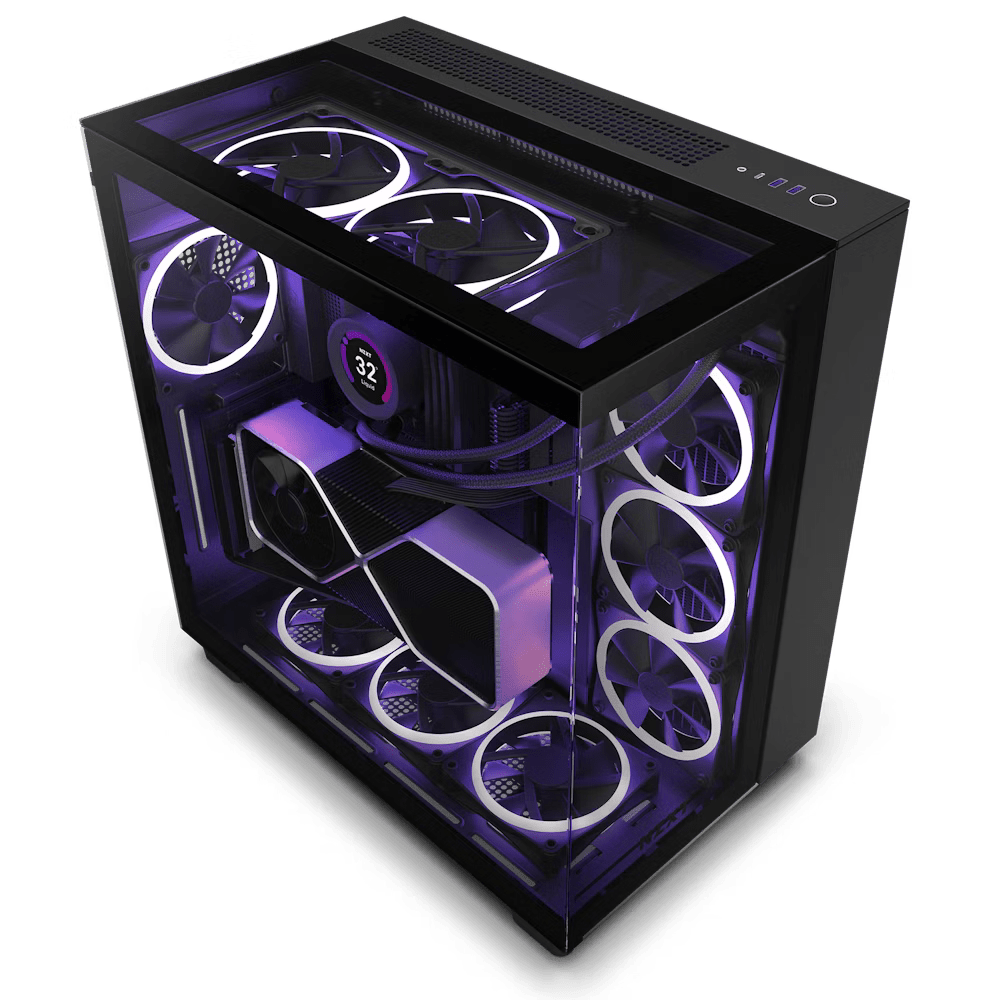

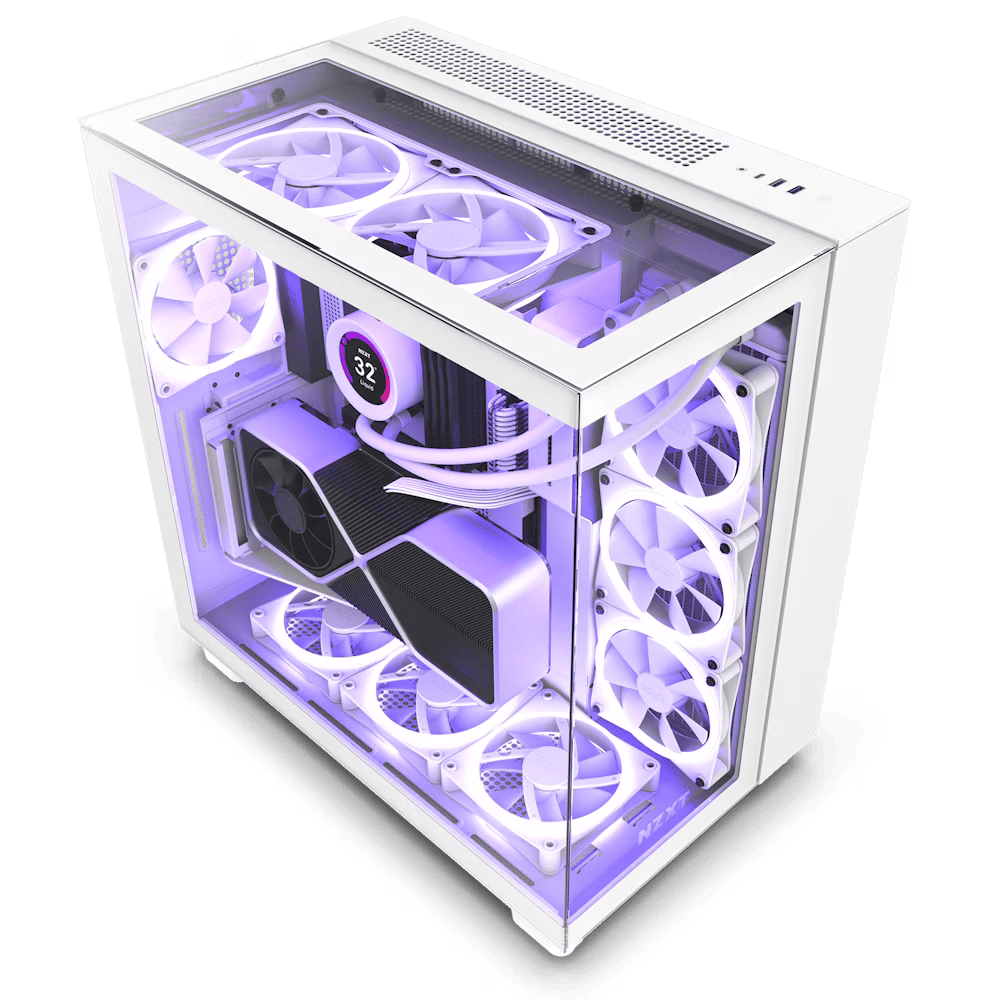

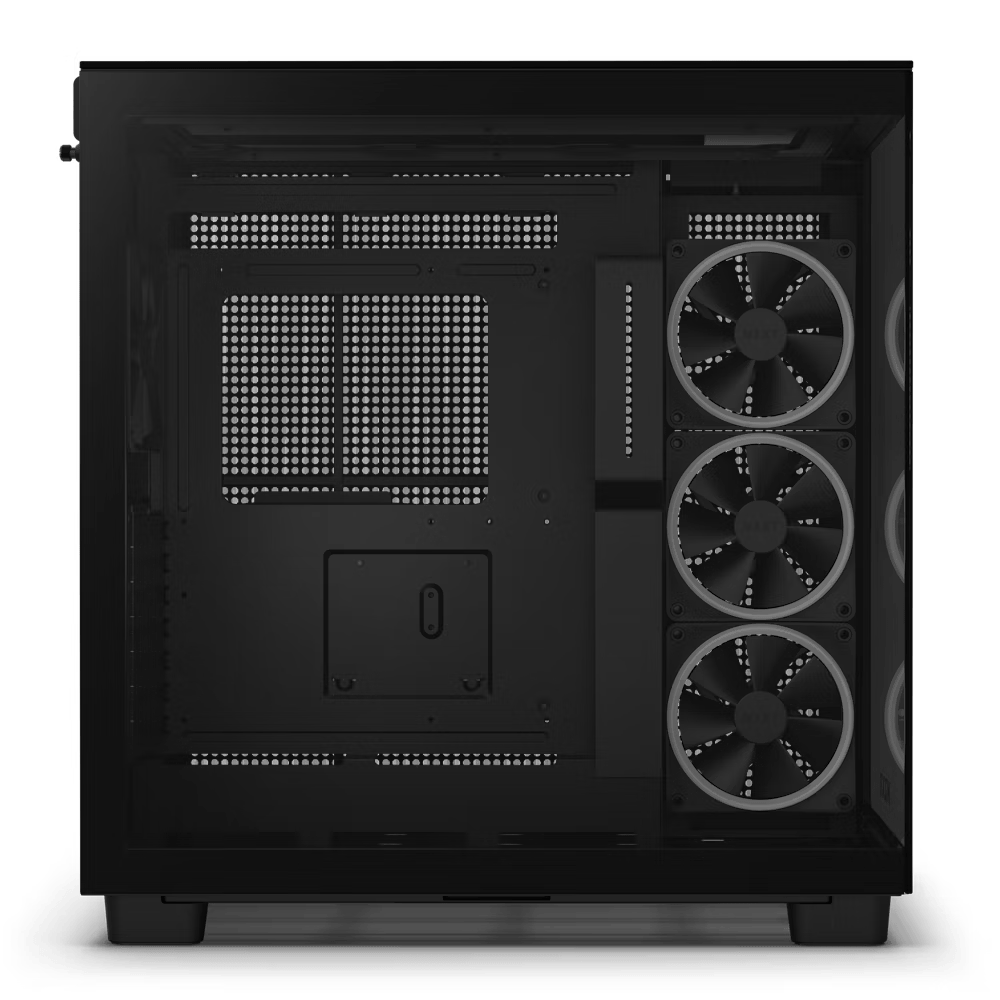

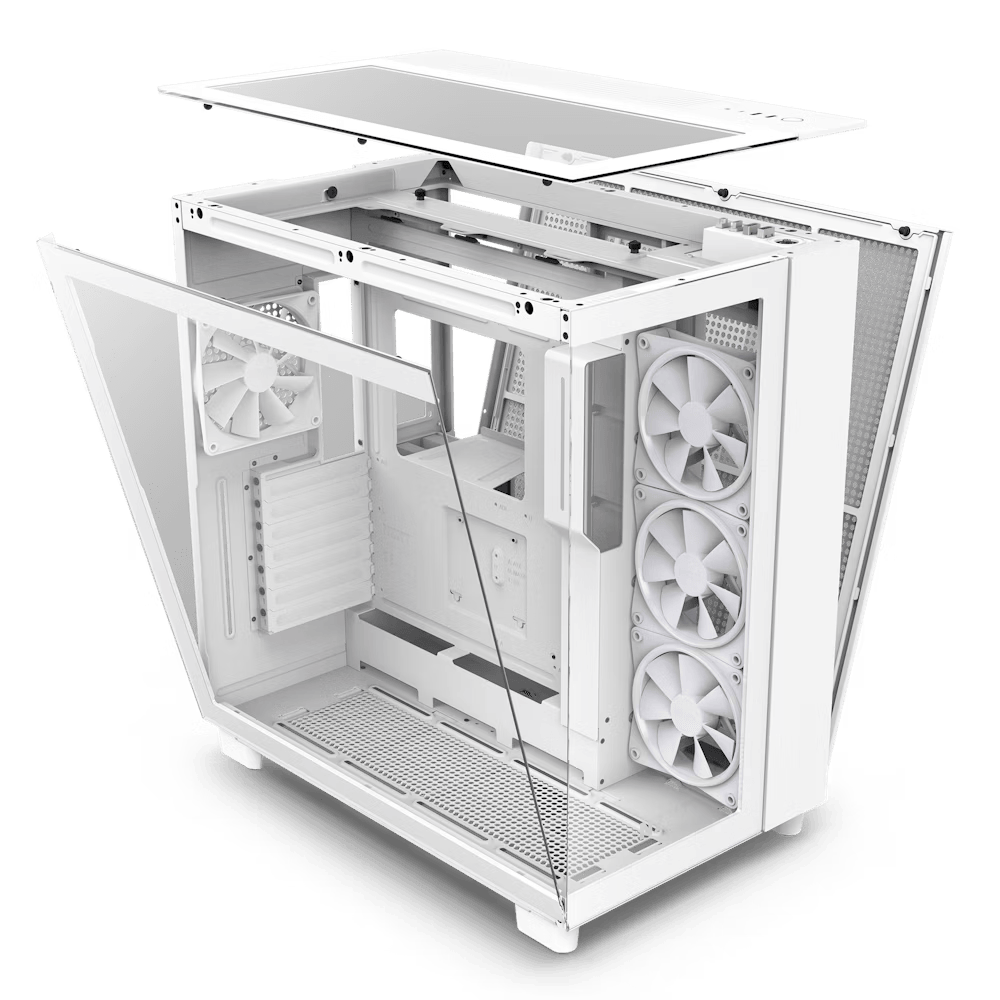

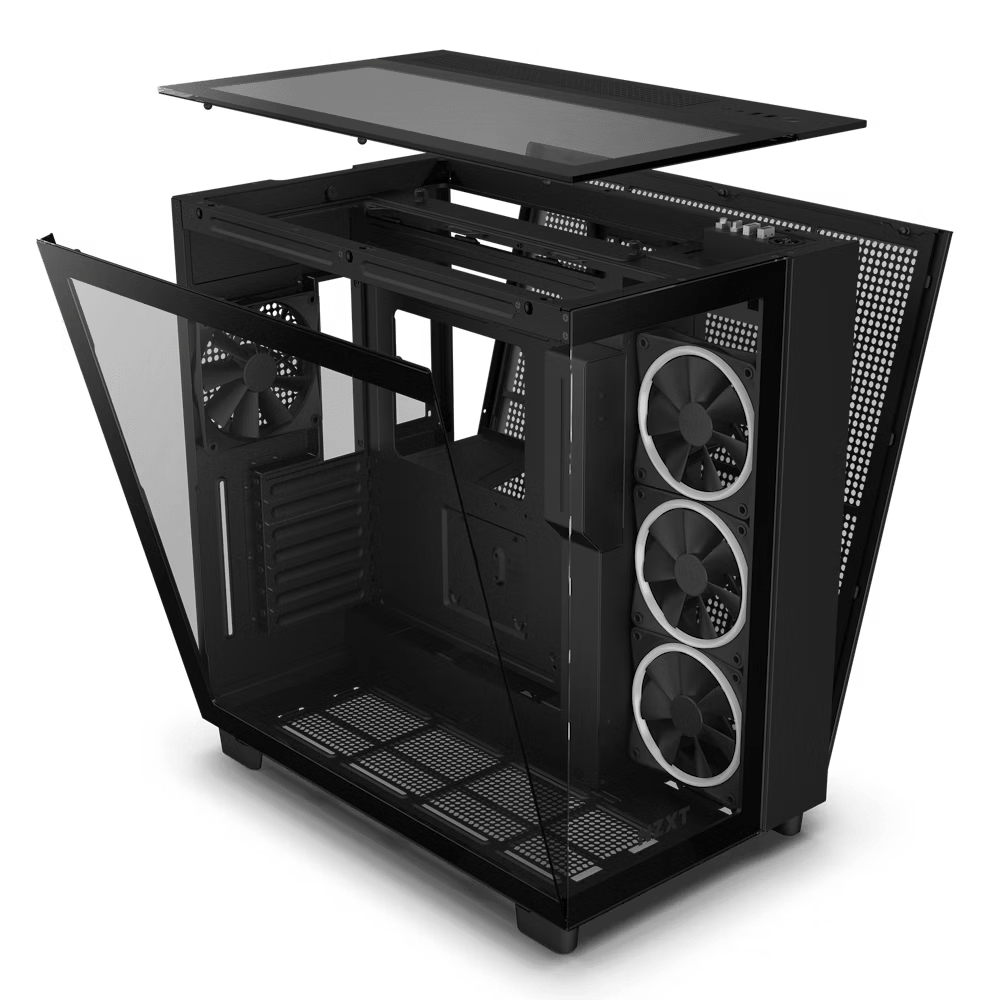

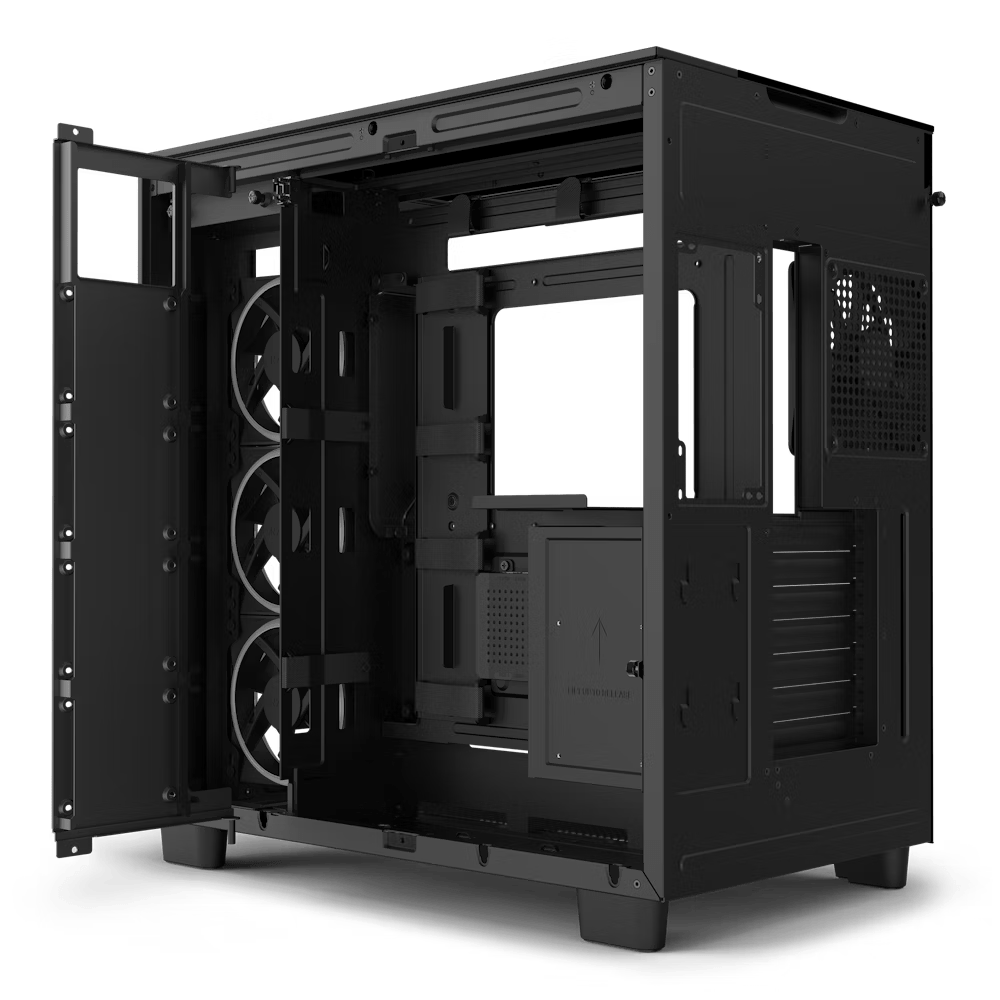

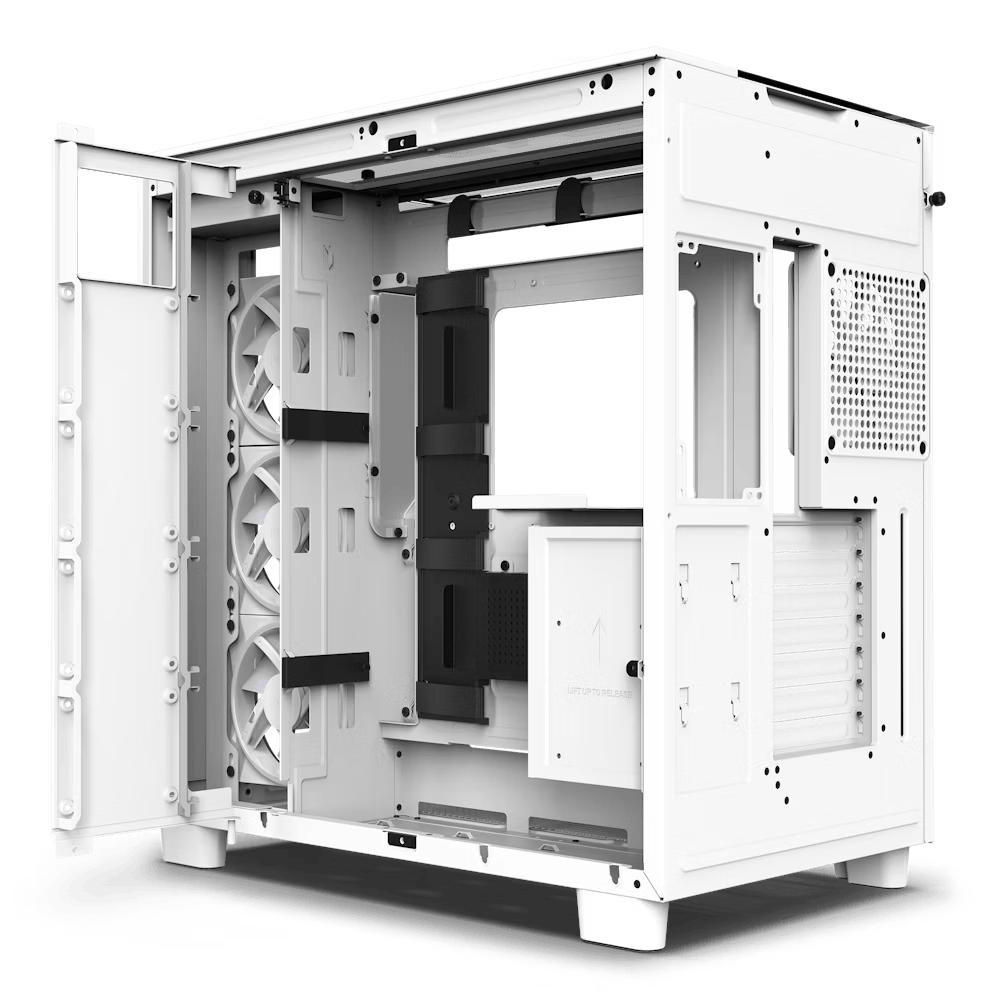

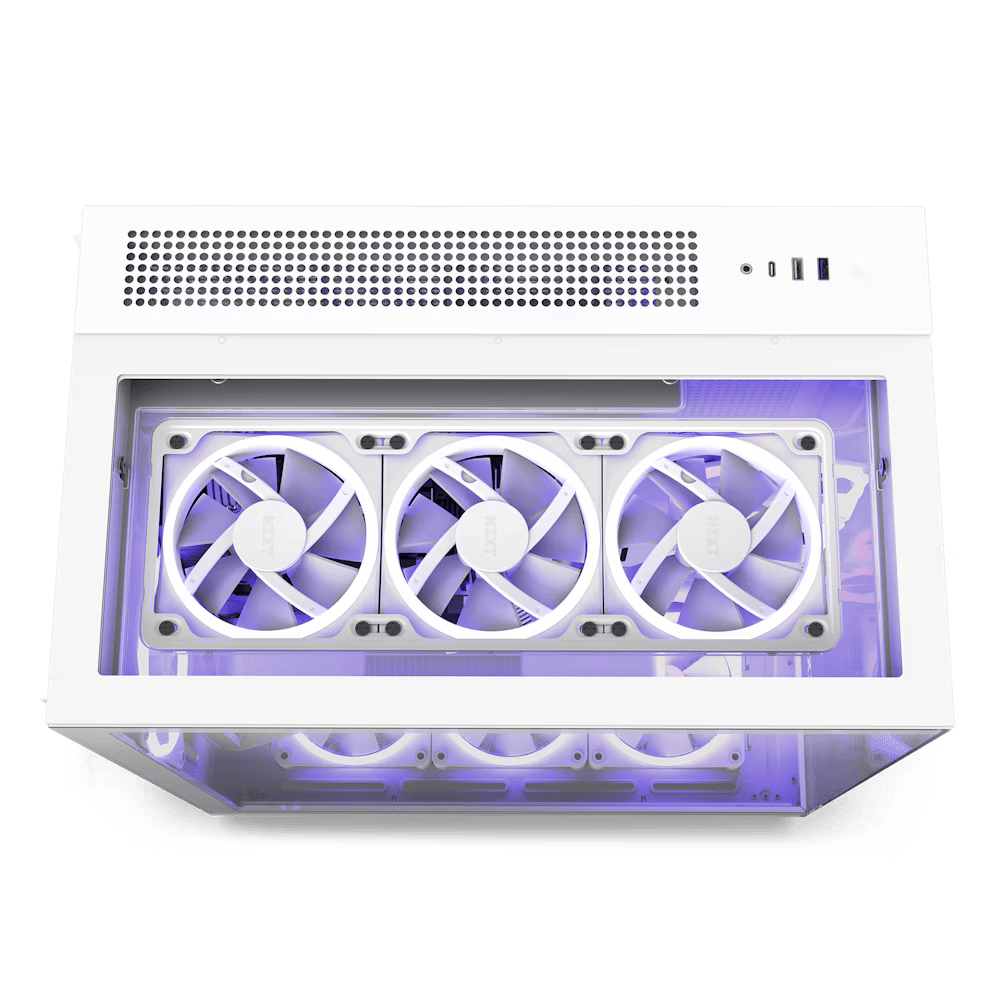

NZXT H9 ELITE MID TOWER AIRFLOW CASE W/ TEMPERED GLASS

Specifications

• Motherboard Support: Mini-ITX, Micro-ATX, ATX
• Enclosure Type: Mid-Tower
• Case Material: SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass

Dimensions

• Height: 495mm (With Feet)
• Width: 290mm
• Depth: 466mm
• Weight: 13.1 kg

Compatibility & Clearance

• CPU Cooler Clearance: Up to 165mm
• GPU Clearance: Up to 435mm
• PSU Clearance: 200mm
• Cable Management: 91mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A: 2
• USB 3.2 Gen 2 Type-C: 1
• Headset Audio Jack: 1

Expansion Slots

• Standard: 7
• Vertical: 0

Drive Bays

• 2.5": 4+2
• 3.5": 2

Fan Support

• Side: 3 x 120mm
• Top: 3 x 120mm / 2 x 140mm
• Bottom: 3 x 120mm / 2 x 140mm
• Rear: 1 x 120mm
• Filters: All Air Intakes

Radiator Support

• Side: Up to 360mm
• Top: Up to 360mm
• Bottom: Up to 360mm
• Rear: Up to 120mm

Fan Specs (F120Q - Case Version)

• Speed: 1200 ± 240RPM
• Airflow: 62.18 CFM
• Static: 1.05 mm - H2O
• Noise: 25.1 dBA
• Fan Connector: 3-pin

Fan Specs (F120RGB Duo)

• Speed: 500 ± 1800RPM
• Airflow: 48.58 CFM
• Static: 2.42mm - H2O
• Noise: 29 dBA
• Fan Connector: 4-pin
